NSN 5340-00-225-7194 7886, 788-6, 00-225-7194
Product Details | LOOP CLAMP
5340-00-225-7194 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: 7886, 788-6, 5340-00-225-7194, 00-225-7194, 5340002257194, 002257194
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-225-7194 | 17532 ( CLAMP, LOOP ) |
Drawings & Photos | NSN 5340-00-225-7194
Cross Reference | NSN 5340-00-225-7194
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 788-6 | 83930 | TRANSDIGM INC DBA ADEL WIGGINS GROUP-COMMERCIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-225-7194
Technical Data | NSN 5340-00-225-7194
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 BAND RUBBER SYNTHETIC CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-362,T4 FED SPEC SINGLE MATERIAL RESPONSE BAND |

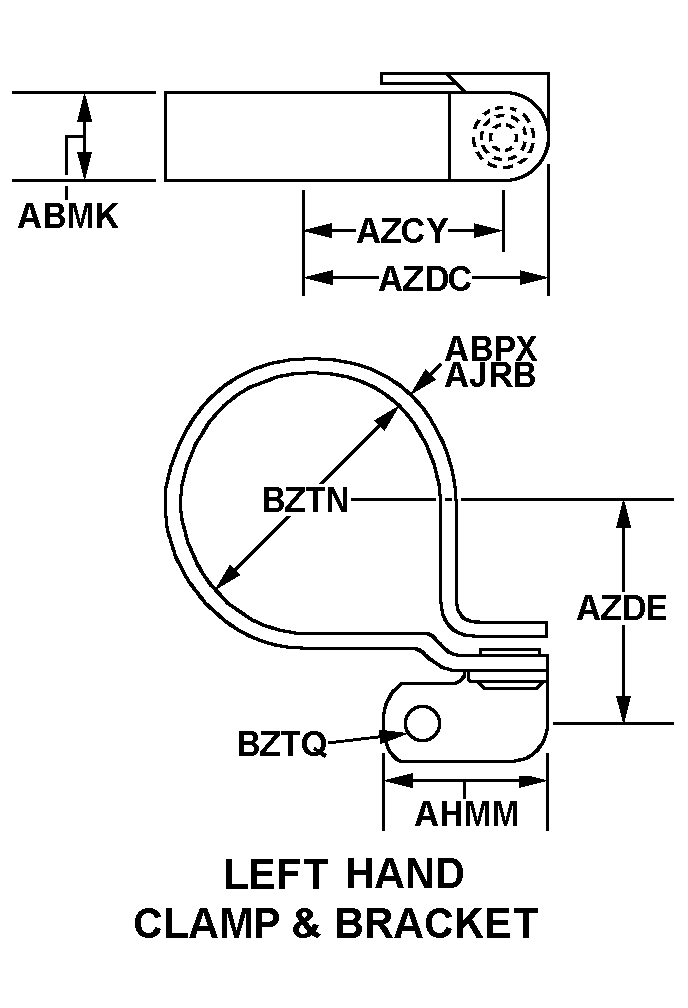

| STYLE DESIGNATOR | A40 LEFT HAND CLAMP AND BRACKET |
