NSN 5340-00-203-4459 10117299 , 58A164C187, 00-203-4459
Product Details | ESCUTCHEON PLATE
5340-00-203-4459 An item of various shapes designed to be used as a mounting plate and/or ornament for door handles, window regulator handles, control rods, and the like.
Part Alternates: 10117299 , 58A164C187, 5340-00-203-4459, 00-203-4459, 5340002034459, 002034459
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-203-4459 | 20261 ( ESCUTCHEON PLATE ) |
Drawings & Photos | NSN 5340-00-203-4459
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-203-4459
Related Products | NSN 5340-00-203-4459
Technical Data | NSN 5340-00-203-4459
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 ESCUTCHEON PLATE |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-766,CL 2 FED SPEC SINGLE MATERIAL RESPONSE ESCUTCHEON PLATE |
| SURFACE TREATMENT | PASSIVATE ESCUTCHEON PLATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-STD-171,FINISH NO. 5.4.1 MIL STD SINGLE TREATMENT RESPONSE ESCUTCHEON PLATE |

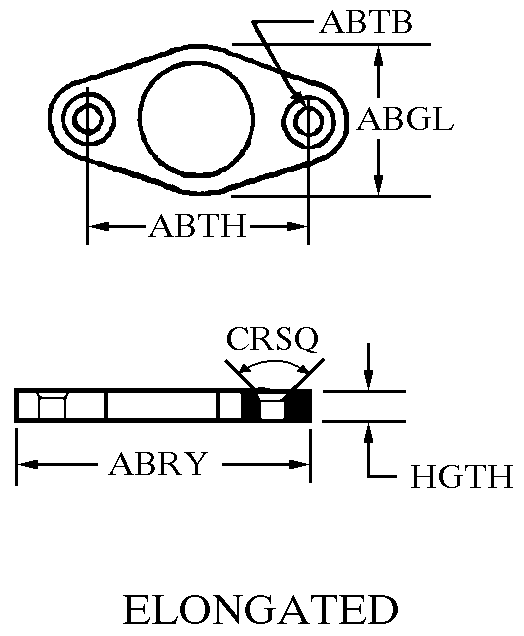

| STYLE DESIGNATOR | D2 ELONGATED |
| WIDTH | 1.125 INCHES NOMINAL |
| LENGTH | 3.500 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.235 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 2.875 INCHES NOMINAL |
| HEIGHT | 0.063 INCHES NOMINAL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SPECIAL FEATURES | HOLE DIA 0.235 IN. NOM;O/A LGTH 3.500 IN.;C TO C DISTANCE BETWEEN HOLES 2.875 IN. NOM |
