NSN 5340-00-202-0094 M43770/1-SWZE2, M437701SWZE2, M43770-1SWZE2
Product Details | SNAP HOOK
5340-00-202-0094 A metal fastening device one or both ends of which are hook shaped with a closing or locking device over the throat opening which is held closed by spring action. If hook shaped on one end only the opposite end is provided with a fixed, loose, or swivel loop or opening for connecting to another item. Excludes cargo hooks with safety devices.
Part Alternates: M43770/1-SWZE2, M437701SWZE2, M43770-1SWZE2, NASM43770/1, NASM437701, MILS43770, 5340-00-202-0094, 00-202-0094, 5340002020094, 002020094
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 APR 1973 | 00-202-0094 | 16954 ( SNAP HOOK ) |

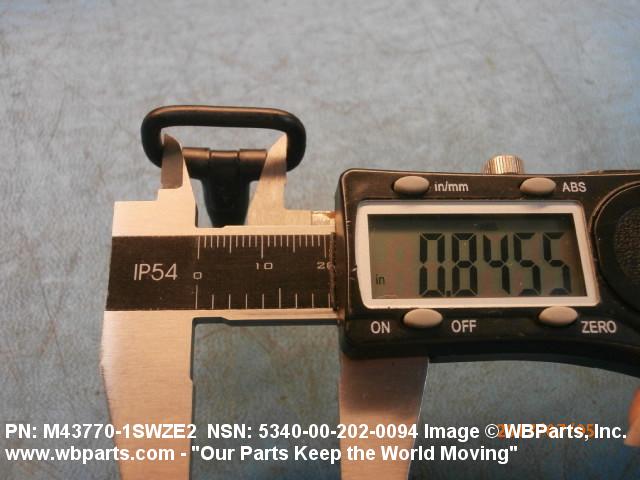

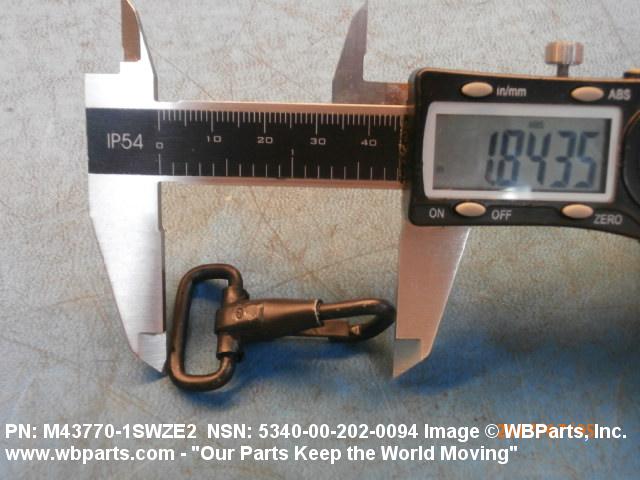

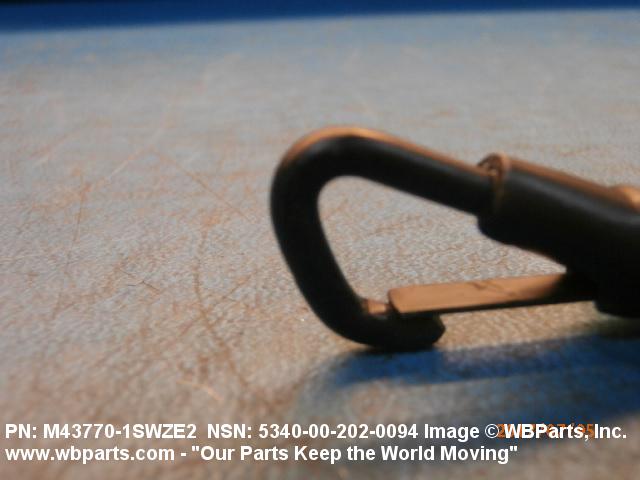

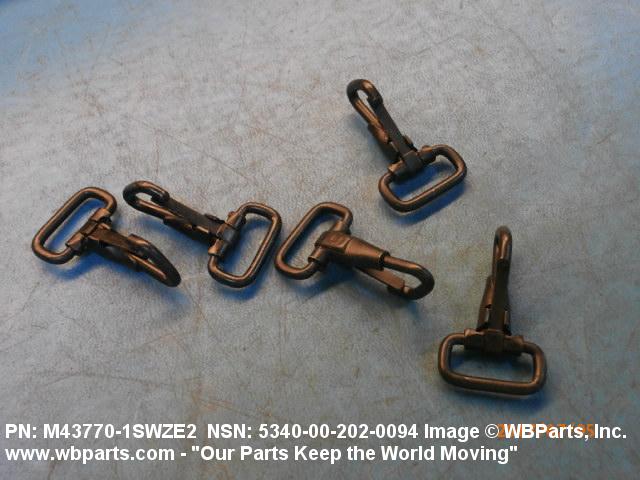

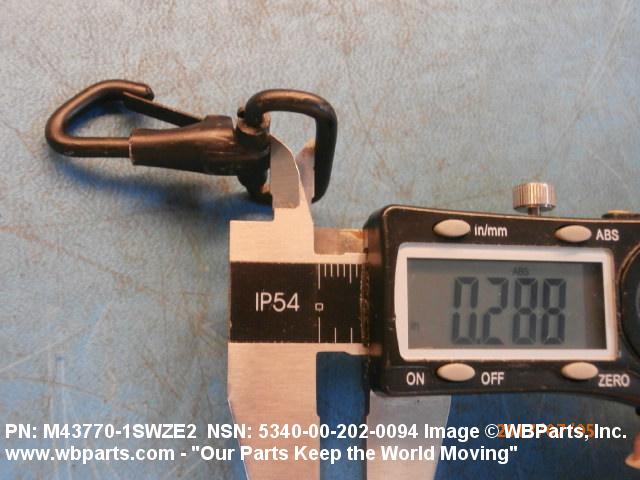

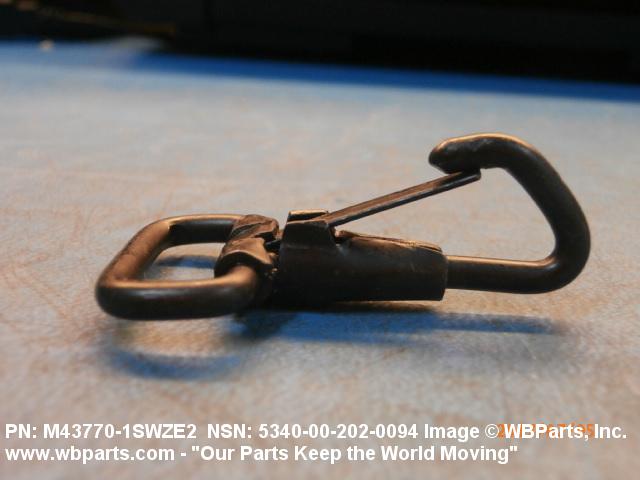

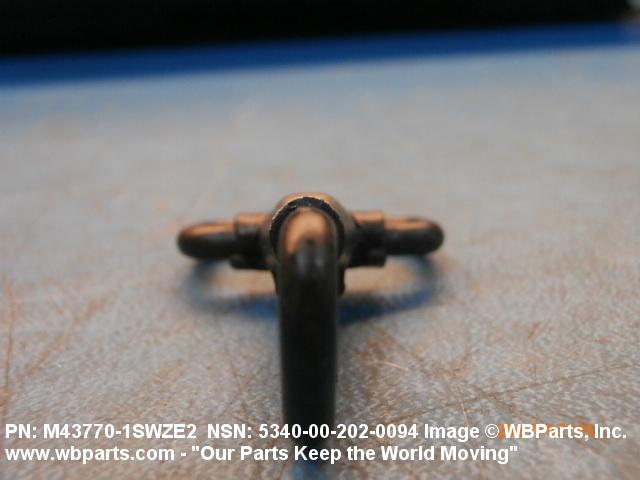

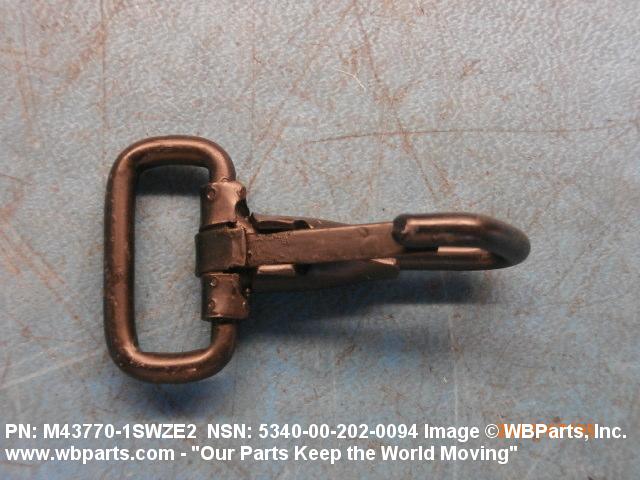

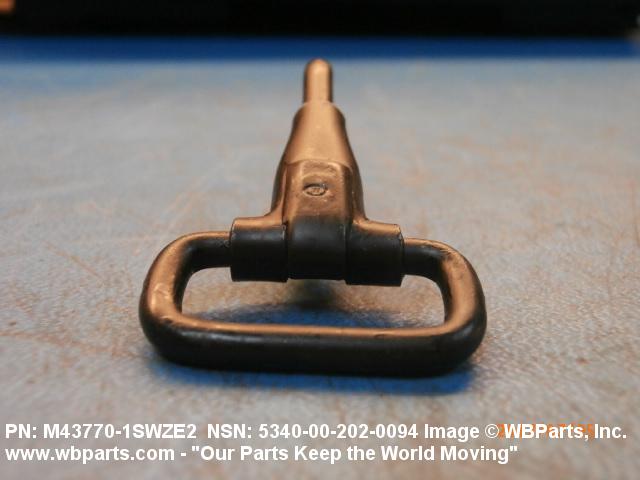

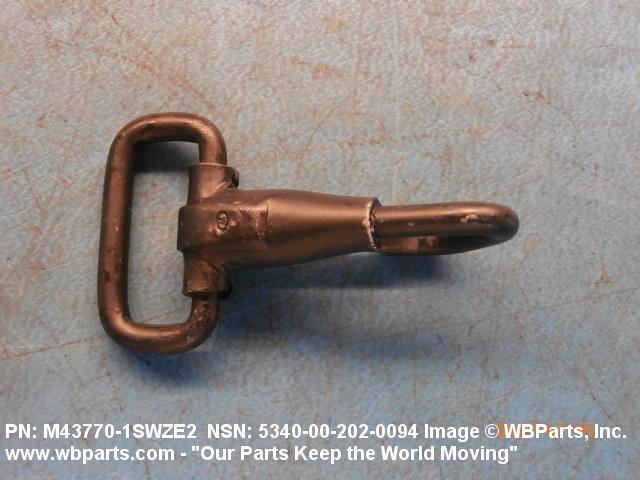

Drawings & Photos | NSN 5340-00-202-0094
Demand History | NSN 5340-00-202-0094
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-202-0094 | 2020-11-317 | 320 | DIBBS |
| 5340-00-202-0094 | 2020-04-99 | 318 | DIBBS |
| 5340-00-202-0094 | 2017-06-174 | 100 | South Korea |
Cross Reference | NSN 5340-00-202-0094
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M43770-1SWZE2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M43770/1-SWZE2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MILS43770 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NASM43770/1 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-202-0094
Related Products | NSN 5340-00-202-0094
Technical Data | NSN 5340-00-202-0094
| Characteristic | Specifications |
|---|---|
| HOOK STYLE DESIGNATOR | 2C SPRING BLADE |
| BLADE MATERIAL | STEEL, QQ-S-777, COMP 1050-CANCELED AND STEEL, QQ-S-777, COMP 1095-CANCELED |
| DESIGN TYPE | FIXED |
| END POSITION | CONNECTION END IN SAME PLANE AS HOOK END |
| END CONNECTION STYLE | 16 LOOP |
| INSIDE WIDTH | 0.281 INCHES NOMINAL |
| INSIDE LENGTH | 0.812 INCHES NOMINAL |
| HOOK MATERIAL | STEEL, QQ-S-698, TEMPER 2 OR STEEL, QQ-S-698, TEMPER 3 |
| CONNECTION END MATERIAL | STEEL, QQ-W-461, COMP 1006 AND STEEL, QQ-W-461, COMP 1020 |
| SURFACE TREATMENT | ZINC, QQ-Z-325, TYPE 3, CLASS 2 AND ENAMEL, MIL-E-480, TYPE 1-CANCELED OR ENAMEL, MIL-E-480, TYPE 2-CANCELED |
| OVERALL LENGTH | 1.875 INCHES NOMINAL |
| RUBBER COVERED FEATURE | NOT INCLUDED |
| UNATTACHED RING | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 5340-00-202-0094
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095370 | HOOKS NOI I/S GALVANIZE/PLAIN ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-202-0094
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
