NSN 5340-00-200-8735 00-200-8735, 002008735
Product Details | COMPRESSION CUP
5340-00-200-8735 A nonmetallic cup-shaped item designed to be located within a cylinder, and whose contact edge with the cylinder walls is usually feathered. This item, by means of extrusion, makes close physical contact with the cylinder walls in order to prevent the escape of internal pressure. The item may have a center hole and/or bolt holes. Excludes CUP, HYDRAULIC BRAKE CYLINDER.
Part Alternates: 5340-00-200-8735, 00-200-8735, 5340002008735, 002008735
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-200-8735 | 03435 ( CUP, COMPRESSION ) |

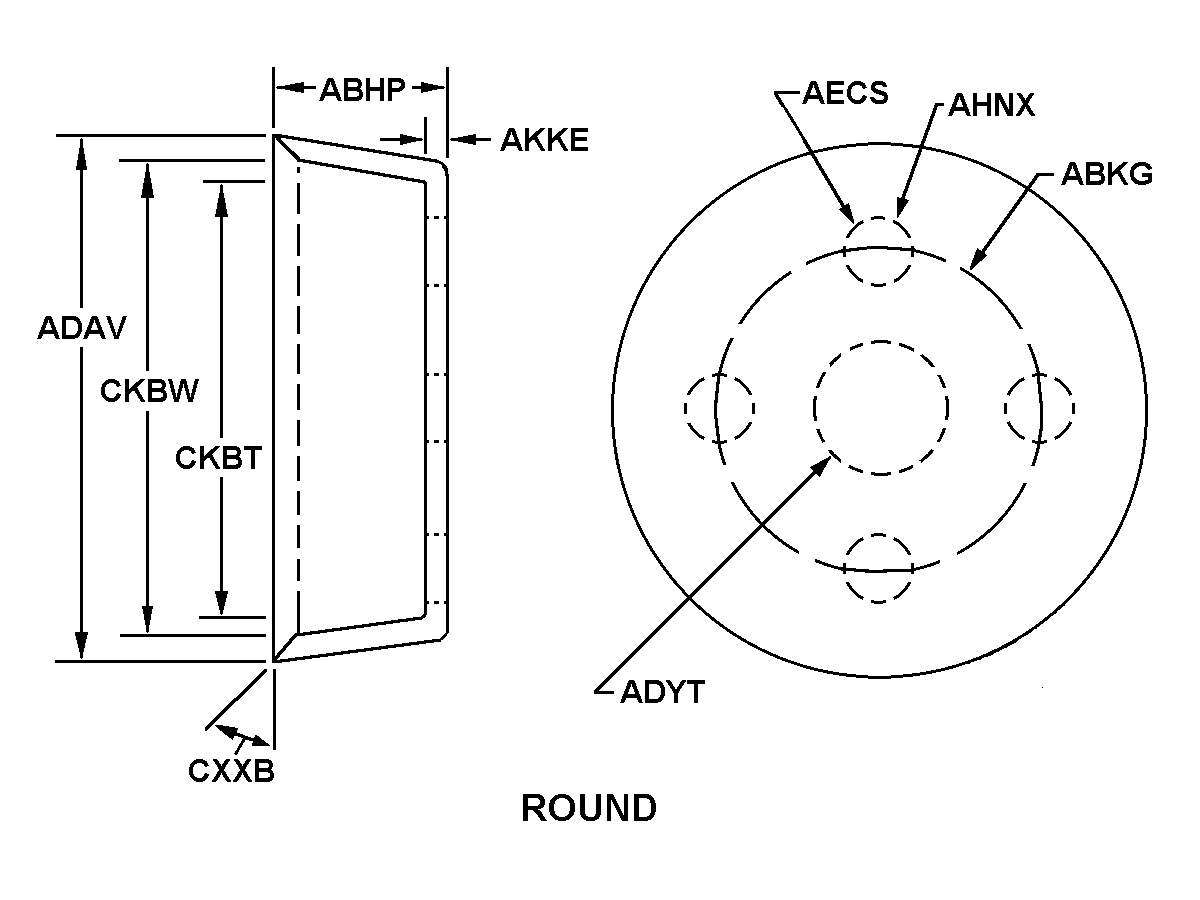

Drawings & Photos | NSN 5340-00-200-8735
Cross Reference | NSN 5340-00-200-8735
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5340002008735 | 14153 | DEFENSE LOGISTICS AGENCY DBA DEFENSE SUPPLY CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-200-8735
Technical Data | NSN 5340-00-200-8735
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER OVERALL |
| STYLE DESIGNATOR | D1 ROUND |
| OVERALL LENGTH | 0.375 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 3.250 INCHES NOMINAL |
| OVERALL DIAMETER | 3.365 INCHES MINIMUM AND 3.375 INCHES MAXIMUM |
| CENTER HOLE DIAMETER | 1.003 INCHES MINIMUM AND 1.013 INCHES MAXIMUM |
| BOLT HOLE DIAMETER | 0.275 INCHES MINIMUM AND 0.285 INCHES MAXIMUM |
| BASE MATERIAL THICKNESS | 0.090 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| RECESS INSIDE DIAMETER | 3.257 INCHES MINIMUM AND 3.267 INCHES MAXIMUM |
| FEATHER EDGE ANGLE | 57.0 DEGREES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-200-8735
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-200-8735
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
