NSN 5340-00-200-8560 MS21919DG5, MS21919WDG5, AN742D7CB

Product Details | LOOP CLAMP

5340-00-200-8560 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000

Part Alternates: MS21919DG5, MS21919WDG5, AN742D7CB, AS21919WDG05 , AS21919WDG5, AS21919WDGO5 , JM44LC33WD5, TA1718WD5X, 10082429 , 2600LW, 2600-L-W , 2822652, 5340-00-200-8560, 00-200-8560, 5340002008560, 002008560

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-200-8560	17532 ( CLAMP, LOOP )

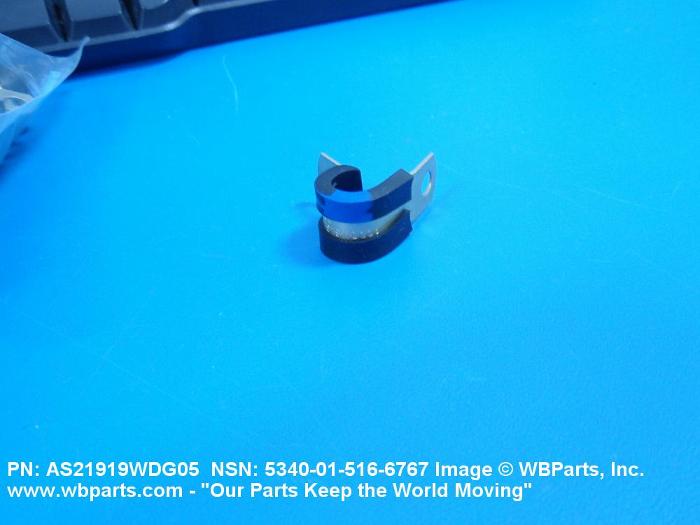

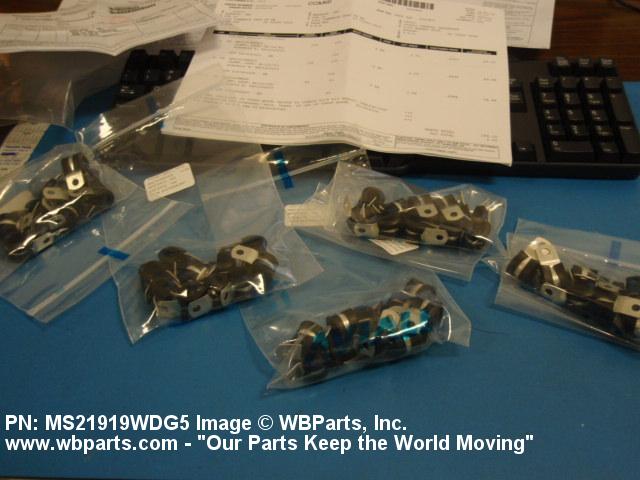

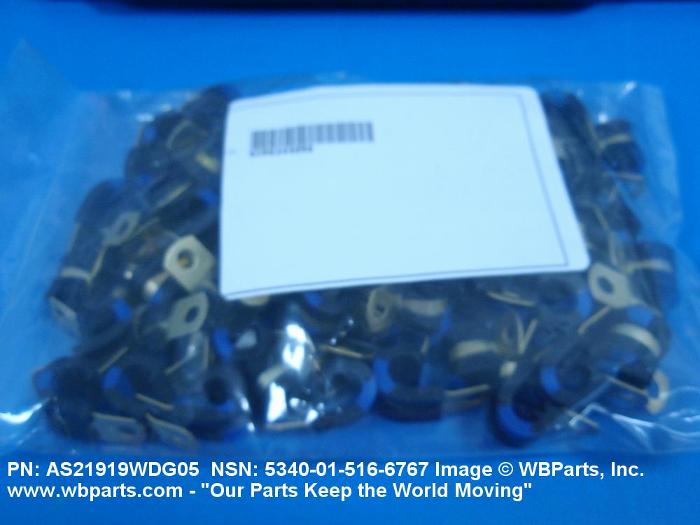

Drawings & Photos | NSN 5340-00-200-8560

Part Number	Request Date	QTY	Origin
MS21919WDG5	2024-09-268	40	Spain
2600LW	2024-06-163	4	US
AS21919WDG5	2024-03-81	22	US
2600LW	2024-03-79	5	MN
MS21919WDG5	2023-11-314	93	us
2600LW	2023-08-221	150	United Arab Emirates
MS21919WDG5	2023-06-165	25	us
2600LW	2023-06-160	1	United States
MS21919WDG5	2023-04-117	100	US
2600LW	2022-12-346	15	United States
AS21919WDG5	2022-03-89	32	United States
5340-00-200-8560	2022-03-87	16	US
5340-00-200-8560	2022-03-72	18347	DIBBS
5340-00-200-8560	2021-08-243	40	Ukraine
5340-00-200-8560	2021-08-229	25508	DIBBS
2600LW	2020-07-192	140	United States
5340-00-200-8560	2020-03-77	1	DIBBS-RFPs
AS21919WDG05	2020-02-44	8	United States
5340-00-200-8560	2020-01-13	32	Taiwan
5340-00-200-8560	2020-01-02	16280	DIBBS
AS21919WDG5	2019-12-339	22	United States
MS21919WDG5	2019-12-339	22	United States
AS21919WDG5	2019-11-315	22	United States
5340-00-200-8560	2019-10-303	24625	DIBBS
MS21919WDG5	2019-09-248	250	Sri Lanka
AS21919WDG5	2019-06-154	800	US
2600LW	2019-02-53	100	United States
2600LW	2019-02-52	8	TH
5340-00-200-8560	2019-02-41	1797	DIBBS
5340-00-200-8560	2019-02-37	10088	DIBBS
5340-00-200-8560	2019-01-31	26752	DIBBS
5340-00-200-8560	2019-01-13	10088	DIBBS
5340-00-200-8560	2018-12-346	12420	DIBBS
5340-00-200-8560	2018-12-340	53830	DIBBS
5340-00-200-8560	2018-12-338	10000	US
5340-00-200-8560	2018-12-337	10000	DIBBS
5340-00-200-8560	2018-11-332	53830	DIBBS
5340-00-200-8560	2018-11-308	56120	DIBBS
5340-00-200-8560	2018-10-291	56120	DIBBS
2600LW	2018-09-263	1000	Singapore
5340-00-200-8560	2018-09-259	49471	DIBBS
2600LW	2018-05-141	200	United States
5340-00-200-8560	2018-04-112	12420	DIBBS
AS21919WDG5	2018-04-103	16	United States
5340-00-200-8560	2018-04-101	60000	DIBBS
2600LW	2017-10-276	1	US
5340-00-200-8560	2017-05-145	60000	DIBBS
AS21919WDG05	2017-05-128	12	United States
AS21919WDG05	2016-11-327	200	United States
5340-00-200-8560	2016-11-326	86456	DIBBS
2600LW	2016-10-300	100	United States
2600LW	2016-09-266	80	us
MS21919WDG5	2016-09-253	20	South Africa
2822652	2016-03-81	1006	United States
5340-00-200-8560	2016-03-81	1006	MANUAL
MS21919WDG5	2015-11-328	100	CA
MS21919WDG5	2015-07-211	956	United States
5340-00-200-8560	2015-06-161	56	DIBBS
MS21919WDG5	2015-05-138	7	United States
MS21919WDG5	2015-05-138	7	United States
5340-00-200-8560	2015-03-70	25000	DIBBS
JM44LC33WD5	2015-03-61	2	US
2600LW	2015-01-07	100	US
MS21919WDG5	2014-11-314	10	IN
MS21919WDG5	2014-07-209	100	CA
MS21919WDG5	2014-03-71	322	United States
2600LW	2013-10-274	5	US
2600LW	2013-08-227	3	AR
5340-00-200-8560	2013-08-224	180	United States
MS21919WDG5	2013-08-224	180	us
5340-00-200-8560	2013-04-100	2000	DIBBS
MS21919WDG5	2012-12-346	50	Switzerland
MS21919WDG5	2012-12-344	50	Switzerland
2600LW	2012-11-310	50
MS21919DG5	2012-11-310	125
MS21919WDG5	2012-11-310	110
5340-00-200-8560	2012-10-278	2000	DIBBS
5340-00-200-8560	2012-10-278	4000	DIBBS
5340-00-200-8560	2012-10-278	2000	DIBBS
5340-00-200-8560	2012-10-277	2000	DIBBS
5340-00-200-8560	2012-10-277	4000	DIBBS
AS21919WDG05	2012-03-82	100	US
2600LW	2011-12-361	30	United States
2600LW	2011-12-348	2000	United States
AS21919WDG05	2011-09-259	80	Sri Lanka
5340-00-200-8560	2011-07-187	3400	DIBBS
5340-00-200-8560	2011-06-154	100	DIBBS
5340-00-200-8560	2011-04-96	100	DIBBS
5340-00-200-8560	2011-04-96	250	DIBBS
5340-00-200-8560	2011-04-96	5	DIBBS
5340-00-200-8560	2011-02-42	30	DIBBS
5340-00-200-8560	2011-02-41	50	DIBBS
5340-00-200-8560	2010-12-348	400	DIBBS
5340-00-200-8560	2010-12-348	100	DIBBS
5340-00-200-8560	2010-10-277	30	DIBBS
MS21919WDG5	2010-09-273	50	US
5340-00-200-8560	2010-09-270	800	DIBBS
5340-00-200-8560	2010-09-253	50	DIBBS
5340-00-200-8560	2010-08-231	25	DIBBS
5340-00-200-8560	2010-07-197	350	DIBBS
5340-00-200-8560	2009-11-334	13	US
5340-00-200-8560	2009-09-264	32225	DIBBS
MS21919WDG5	2009-08-230	47	United States
AS21919WDG5	2009-04-94	100	Turkey
2600LW	2009-03-65	50	US
2600LW	2008-10-302	75	US
5340-00-200-8560	2008-10-282	180000	DIBBS
5340-00-200-8560	2008-09-267	7604	DIBBS
5340-00-200-8560	2008-09-259	3	US
AS21919WDG05	2008-05-136	500	US
5340-00-200-8560	2008-03-72	20000	DIBBS
MS21919WDG5	2006-06-178	1	US
MS21919WDG5	2006-06-178	50	US
2600LW	2006-05-149	1	Australia
2600LW	2006-04-109	10	US

Cross Reference | NSN 5340-00-200-8560

Part Number	Cage Code	Manufacturer
2600-L-W	U0625	B-N GROUP LTD
2822652	001JK	EMBRAER S/A
2822652	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
AS21919WDG05	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS21919WDGO5	19397	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
JM44LC33WD5	22175	J & M PRODUCTS, INC.
MS21919DG5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21919WDG5	70898	BEECHCRAFT CORPORATION DBA HAWKER BEECHCRAFT
MS21919WDG5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
TA1718WD5X	84971	KIRKHILL-TA CO. DBA TA DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-200-8560

Compare

Related Products | NSN 5340-00-200-8560

5340-00-200-8561, 5340-00-200-8562, 5340-00-200-8575, 5340-00-200-8577, 5340-00-200-8578

Technical Data | NSN 5340-00-200-8560

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY BAND RUBBER CUSHION
SURFACE TREATMENT	ANODIZE BAND
STYLE DESIGNATOR	A5 OFFSET MOUNT
OVERALL WIDTH	0.500 INCHES NOMINAL
MATERIAL THICKNESS	0.032 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE	0.560 INCHES NOMINAL
DISTANCE FROM LOOP CENTER TO TONGUE END	0.748 INCHES NOMINAL
LOOP INSIDE DIAMETER	0.313 INCHES NOMINAL
TONGUE HOLE TYPE	ROUND, UNTHREADED
DIAMETER	0.204 INCHES NOMINAL
SPECIAL FEATURES	FURNISHED WITH WEDGE
MANUFACTURERS CODE	88044
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN742D7CB

Restrictions/Controls & Freight Information | NSN 5340-00-200-8560

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	013120	ALUMINUM ARTICLE NOI SUB 6
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-00-200-8560

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
