NSN 5340-00-186-3389 MS21103D8, AN742D8, C8603ANDTYPE1ANDCLASSA
Product Details | LOOP CLAMP

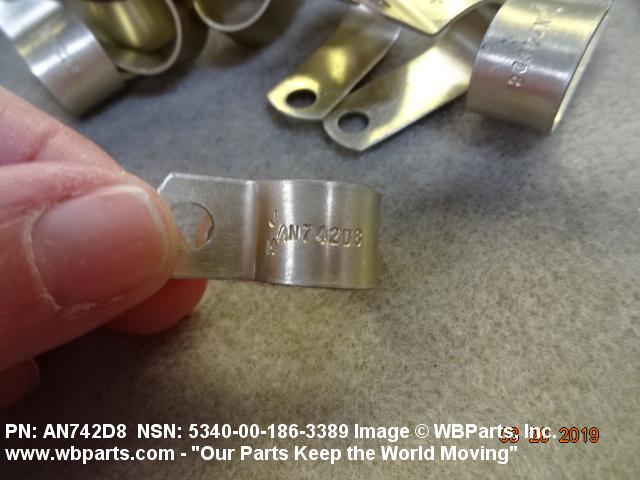

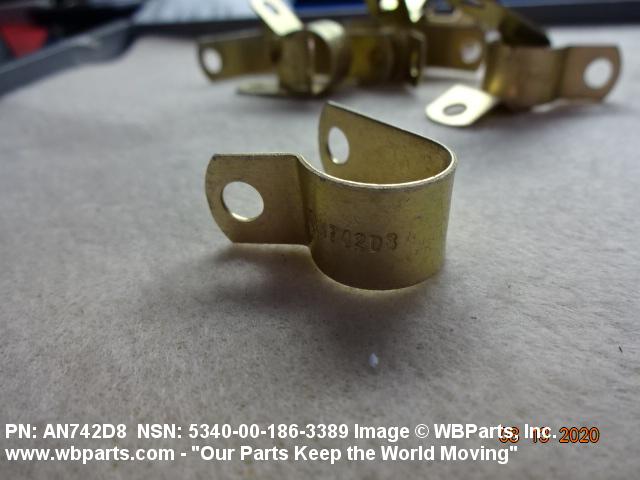

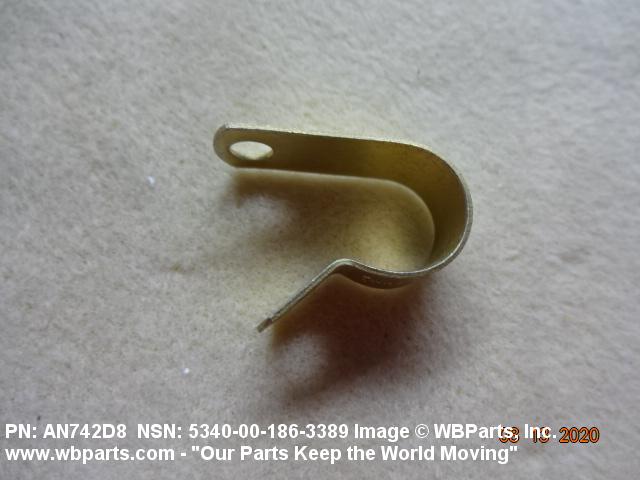

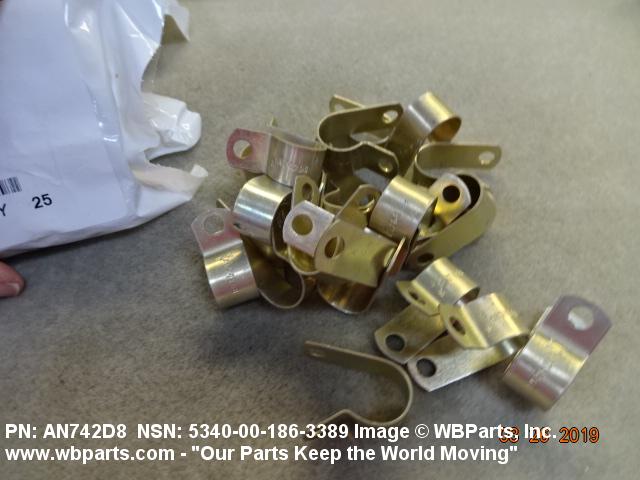

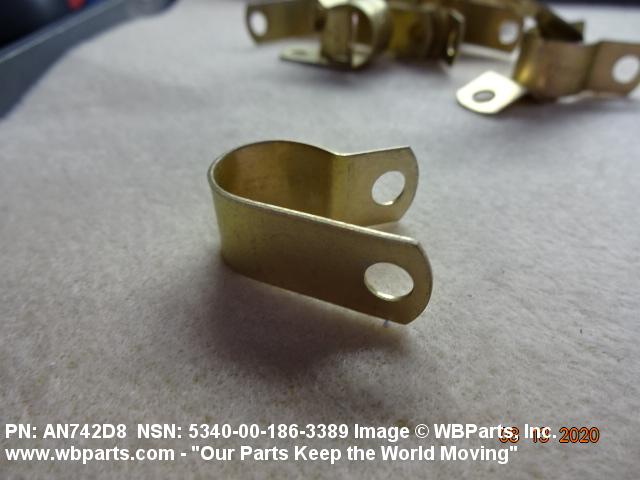

5340-00-186-3389 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: MS21103D8, AN742D8, C8603ANDTYPE1ANDCLASSA, 7598, 759-8, 10117278 , 5340-00-186-3389, 00-186-3389, 5340001863389, 001863389
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-186-3389 | 17532 ( CLAMP, LOOP ) |
Drawings & Photos | NSN 5340-00-186-3389
Demand History | NSN 5340-00-186-3389
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21103D8 | 2024-01-17 | 3 | United States |
| 5340-00-186-3389 | 2021-08-221 | 5 | MY |
| 5340-00-186-3389 | 2019-06-170 | 1476 | DIBBS |
| 5340-00-186-3389 | 2018-01-15 | 2901 | DIBBS |
| 5340-00-186-3389 | 2017-04-94 | 978 | DIBBS |
| 5340-00-186-3389 | 2016-06-154 | 667 | DIBBS |
| AN742D8 | 2012-03-67 | 23 | US |
| AN742D8 | 2009-11-315 | 1000 | United States |
| 5340-00-186-3389 | 2009-07-183 | 1145 | DIBBS |
| 5340-00-186-3389 | 2009-02-35 | 685 | DIBBS |
| 5340-00-186-3389 | 2008-04-116 | 10 | United States |
Cross Reference | NSN 5340-00-186-3389
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5340001863389 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 759-8 | 71867 | BOMBARDIER AEROSPACE AEROSPACE DIV |
| AN742D8 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| C8603ANDTYPE1ANDCLASSA | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21103D8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-186-3389
Related Products | NSN 5340-00-186-3389
Technical Data | NSN 5340-00-186-3389
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 BAND |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5 FED SPEC SINGLE MATERIAL RESPONSE BAND |
| SURFACE TREATMENT | CHROMATE BAND |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541,CL 1A MIL SPEC SINGLE TREATMENT RESPONSE BAND |
| STYLE DESIGNATOR | A2 SINGLE LOOP |

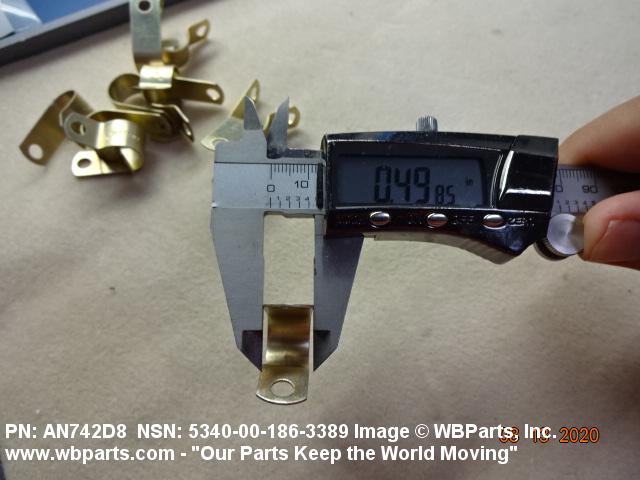

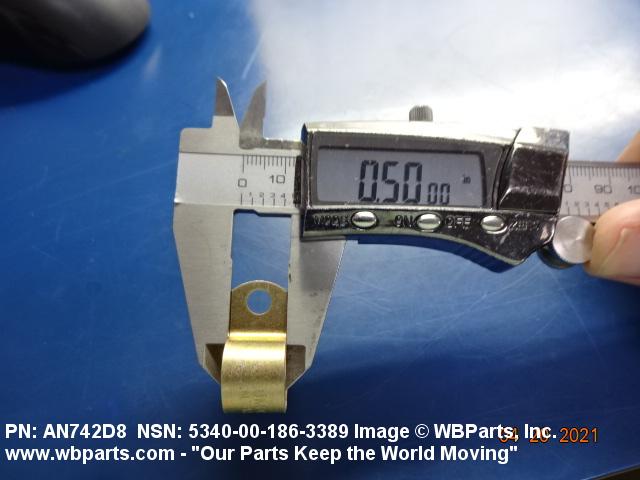

| OVERALL WIDTH | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |

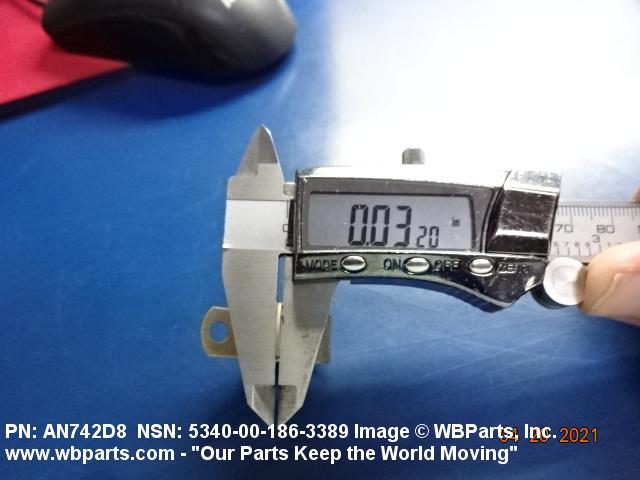

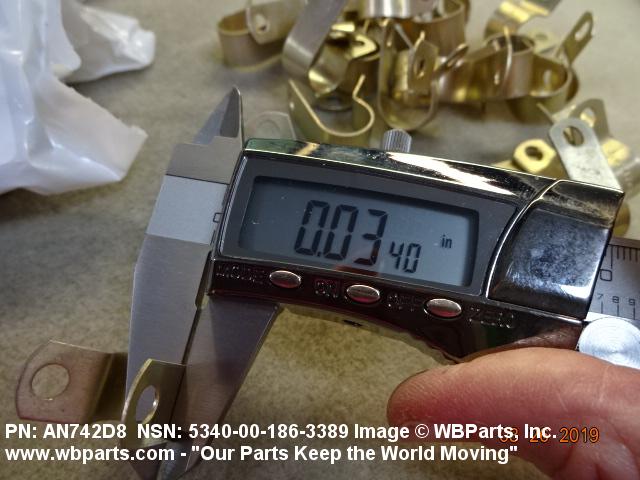

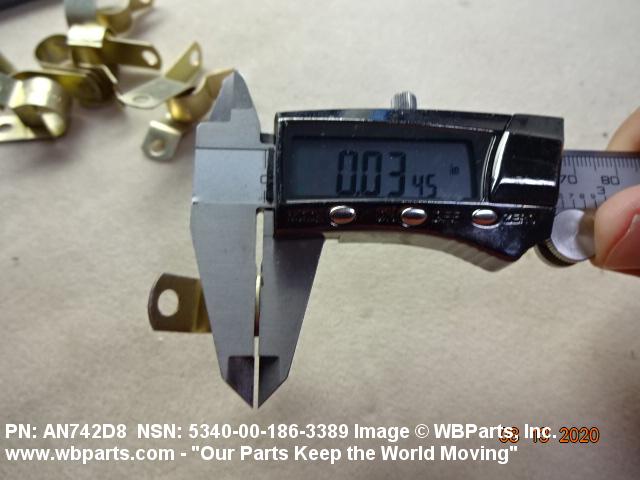

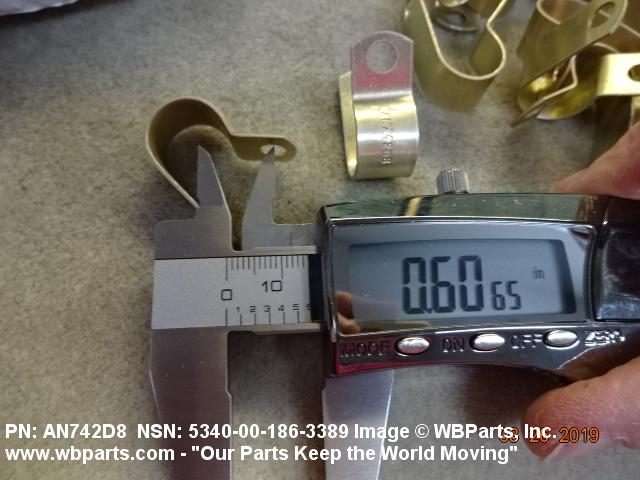

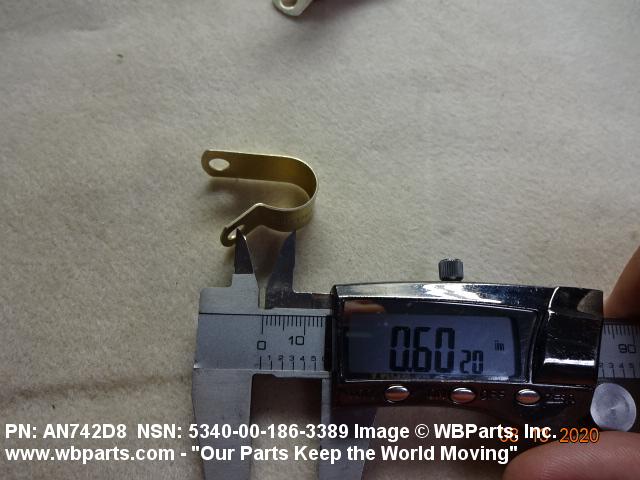

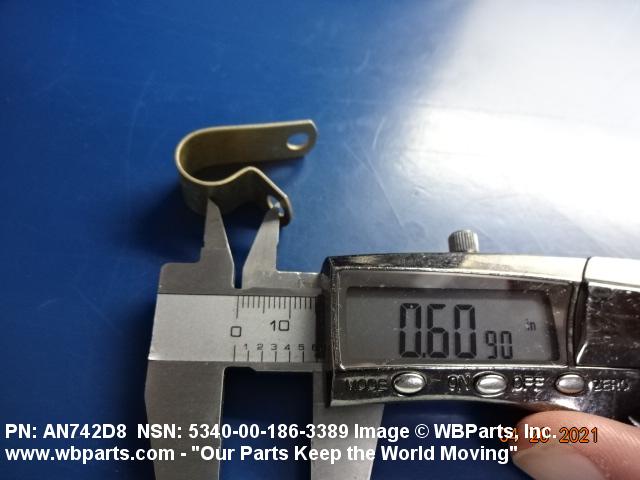

| MATERIAL THICKNESS | 0.0295 INCHES MINIMUM AND 0.0345 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.577 INCHES MINIMUM AND 0.607 INCHES MAXIMUM |

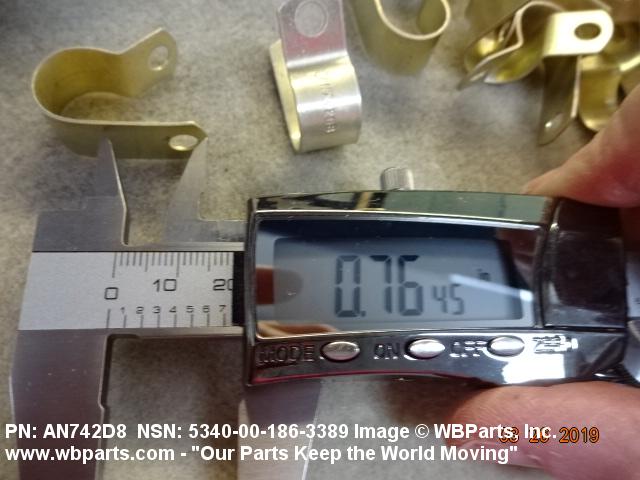

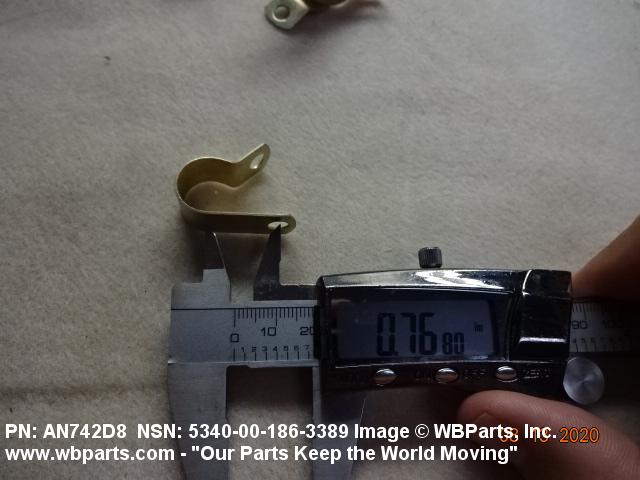

| DISTANCE FROM LOOP CENTER TO TONGUE END | 0.765 INCHES MINIMUM AND 0.795 INCHES MAXIMUM |

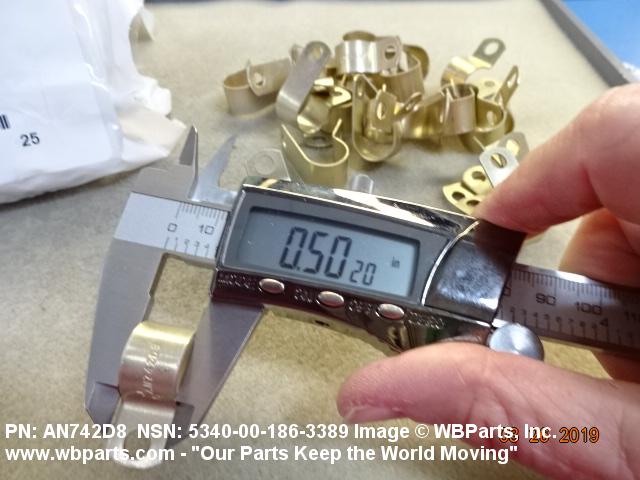

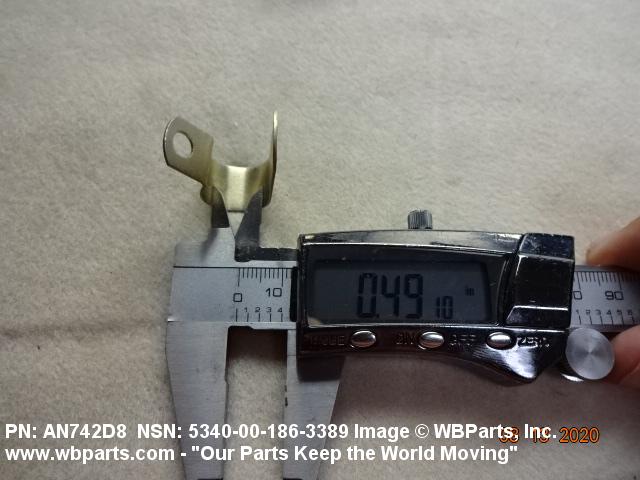

| LOOP INSIDE DIAMETER | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |

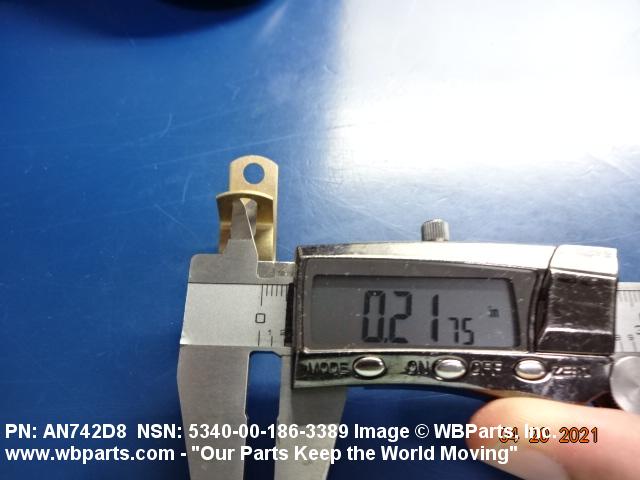

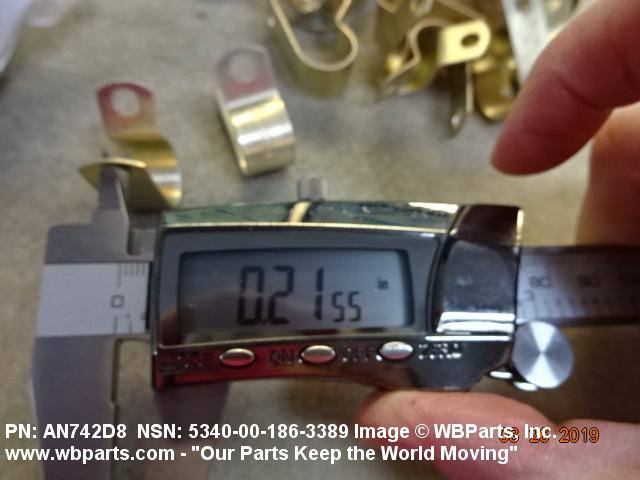

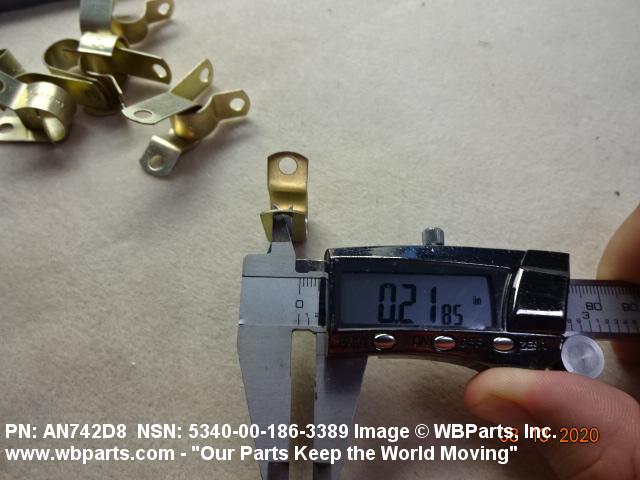

| DIAMETER | 0.213 INCHES MINIMUM AND 0.223 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | C8603ANDTYPE1ANDCLASSA |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21103D8 |
