Product Details | DOUBLE ANGLE BRACKET
5340-00-183-6310 A rigid item usually fabricated from flat material, forming two alternate or two adjacent interior angles, both which are less than 180 degrees (3.141 radians). It is designed to position, align, and/or support an item. It may be reinforced. See also BRACKET, ANGLE and BRACKET (1), MOUNTING.202534000005342000000
Part Alternates: 5001269, 5340-00-183-6310, 00-183-6310, 5340001836310, 001836310
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 SEP 1972 | 00-183-6310 | 20354 ( BRACKET, DOUBLE ANGLE ) |
Drawings & Photos | NSN 5340-00-183-6310
Demand History | NSN 5340-00-183-6310
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-183-6310 | 2008-03-77 | 275 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-183-6310
Related Products | NSN 5340-00-183-6310
Technical Data | NSN 5340-00-183-6310
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | 11 DOUBLE ANGLE |
| III FIRST LEG LENGTH | 0.688 INCHES NOMINAL |
| III SECOND LEG LENGTH | 0.812 INCHES NOMINAL |
| III FIRST LEG THICKNESS | 0.083 INCHES NOMINAL |
| III SECOND LEG THICKNESS | 0.083 INCHES NOMINAL |
| III CENTER SECTION HEIGHT | 0.843 INCHES NOMINAL |
| III CENTER SECTION WIDTH | 0.500 INCHES NOMINAL |
| III CENTER SECTION THICKNESS | 0.083 INCHES NOMINAL |
| III FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| III SECOND LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 102 END RADIUS |
| FIRST LEG WIDTH | 0.500 INCHES NOMINAL |
| FIRST LEG END RADIUS | 0.250 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 132 ONE HOLE |
| FIRST LEG HOLE DIAMETER | 0.240 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.250 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.250 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |

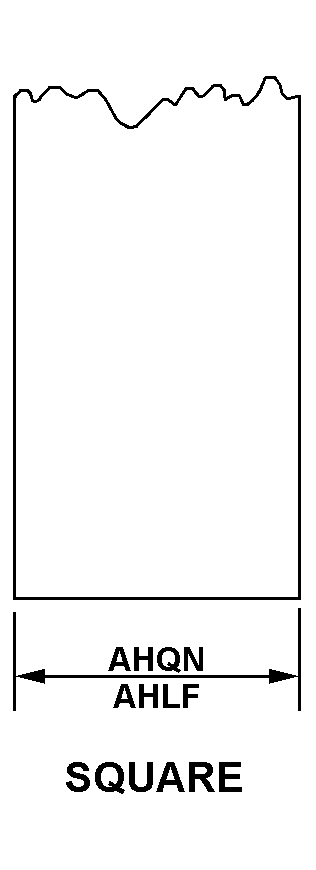

| SECOND LEG STYLE | 104 SQUARE |
| SECOND LEG WIDTH | 0.500 INCHES NOMINAL |

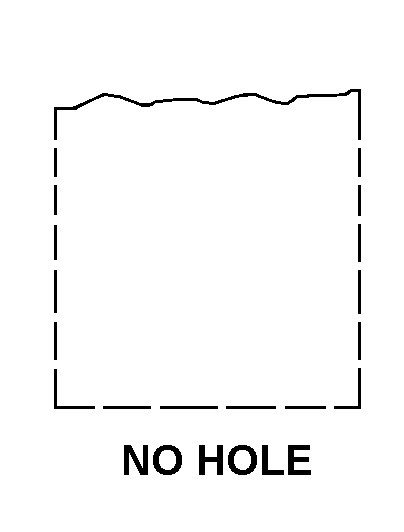

| SECOND LEG HOLE ARRANGEMENT STYLE | 131 NO HOLE |
| (NON-CORE DATA) FABRICATION METHOD | FORMED |
| MANUFACTURERS CODE | 0B9R9 |
| DESIGN CONTROL REFERENCE | 5001269 |
