NSN 5340-00-183-0712 001830712
Product Details | THREADED END TENSIONING TIE ROD
5340-00-183-0712 A rod having various cross-sectional shaped bodies with one right hand and one left hand integral externally threaded end. See also TURNBUCKLE; TURNBUCKLE BODY; and ROD, THREADED END.
Part Alternates: 001830712
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-183-0712 | 20759 ( TIE ROD, TENSIONING, THREADED END ) |

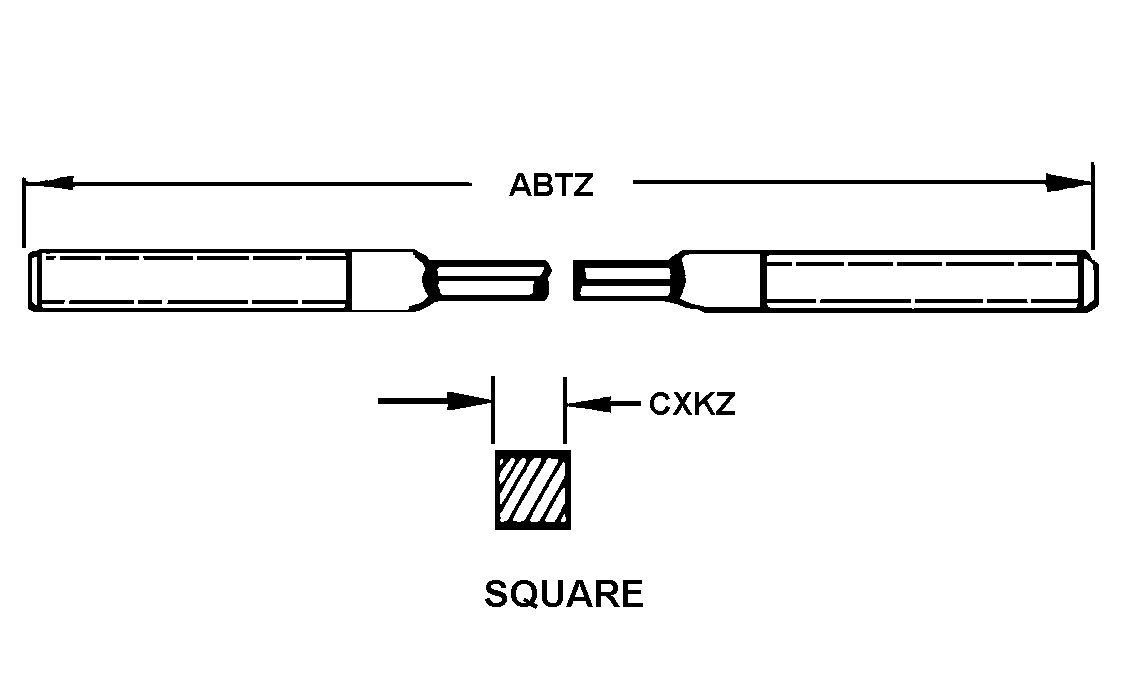

Drawings & Photos | NSN 5340-00-183-0712
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-183-0712
Related Products | NSN 5340-00-183-0712
Technical Data | NSN 5340-00-183-0712
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.190 INCHES ROD CONNECTION |
| THREAD CLASS | 3A OVERALL |
| THREAD LENGTH | 1.344 INCHES MINIMUM AND 1.437 INCHES MAXIMUM AND 1.844 INCHES MINIMUM AND 1.937 INCHES MAXIMUM ROD CONNECTION |
| STYLE DESIGNATOR | 150 SQUARE |
| OVERALL LENGTH | 22.875 INCHES MINIMUM AND 23.125 INCHES MAXIMUM |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN703A2300 |
Restrictions/Controls & Freight Information | NSN 5340-00-183-0712
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
