NSN 5340-00-179-5531 11641853, 00-179-5531, 2815001795531
Product Details | ACCESS COVER
5340-00-179-5531 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 11641853, 5340-00-179-5531, 00-179-5531, 2815001795531, 5340001795531, 001795531
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 NOV 1968 | 00-179-5531 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 5340-00-179-5531
Demand History | NSN 5340-00-179-5531
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-179-5531 | 2008-08-238 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-179-5531
Technical Data | NSN 5340-00-179-5531
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | 122 OVAL, MULTI HOLES |
| WIDTH | 5.520 INCHES NOMINAL |
| LENGTH | 11.840 INCHES NOMINAL |
| HOLE QUANTITY ALONG LENGTH | 6 |
| HOLE QUANTITY ALONG WIDTH | 6 |

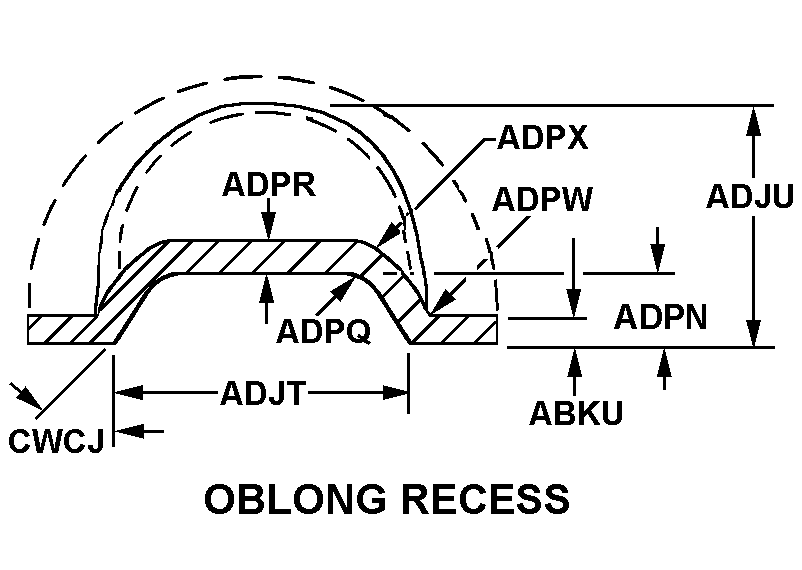

| CROSS-SECTIONAL SHAPE STYLE | 13 OBLONG RECESS |
| FLANGE THICKNESS | 0.306 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| INSIDE WIDTH | 3.800 INCHES MINIMUM AND 3.840 INCHES MAXIMUM |
| INSIDE LENGTH | 10.320 INCHES NOMINAL |
| FIRST RECESS INSIDE HEIGHT | 4.900 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.380 INCHES NOMINAL |
| BODY THICKNESS | 0.060 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.050 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |
| BODY OUTSIDE RADIUS | 0.380 INCHES NOMINAL |
| INSIDE ANGLE | 3.0 DEGREES NOMINAL |
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE |
| SECURING DEVICE TYPE | THREADED FASTENER |
| MOUNTING OPENING SHAPE STYLE | 1 UNTHREADED HOLE |
| HOLE DIAMETER | 0.346 INCHES MINIMUM AND 0.353 INCHES MAXIMUM |
| FEATURES PROVIDED | SEALING CAPABILITY |
| FSC APPLICATION DATA | DIESEL ENGINE OIL COOLER COMPONENT |
Restrictions/Controls & Freight Information | NSN 5340-00-179-5531
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BE | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-179-5531
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
