NSN 5340-00-179-3493 8686989, 00-179-3493, 001793493
Product Details | CASEMENT FASTENER
5340-00-179-3493 A barring device consisting of an integral bar and handle which is either attached to a base plate or designed to be attached directly to the item which it fastens by a pin, bolt or screw. It is engaged by placing the integral bar in an adjoining cavity or strike and is secured by cam action. The fastener is usually mounted on the stile of a door and can be operated from one side only.
Part Alternates: 8686989, 5340-00-179-3493, 00-179-3493, 5340001793493, 001793493
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 JAN 1969 | 00-179-3493 | 06628 ( FASTENER, CASEMENT ) |
Drawings & Photos | NSN 5340-00-179-3493
Cross Reference | NSN 5340-00-179-3493
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8686989 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-179-3493
Technical Data | NSN 5340-00-179-3493
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

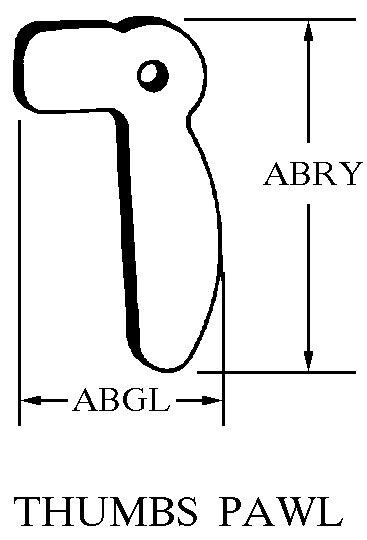

| STYLE DESIGNATOR | E5 THUMB PAWL |
| WIDTH | 1.625 INCHES NOMINAL |
| LENGTH | 3.562 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-179-3493
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
