NSN 5340-00-170-1704 MS9593011, MS9593-011, 00-170-1704
Product Details | ANGLE BRACKET
5340-00-170-1704 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: MS9593011, MS9593-011, 5340-00-170-1704, 00-170-1704, 5340001701704, 001701704
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 FEB 1973 | 00-170-1704 | 16900 ( BRACKET, ANGLE ) |

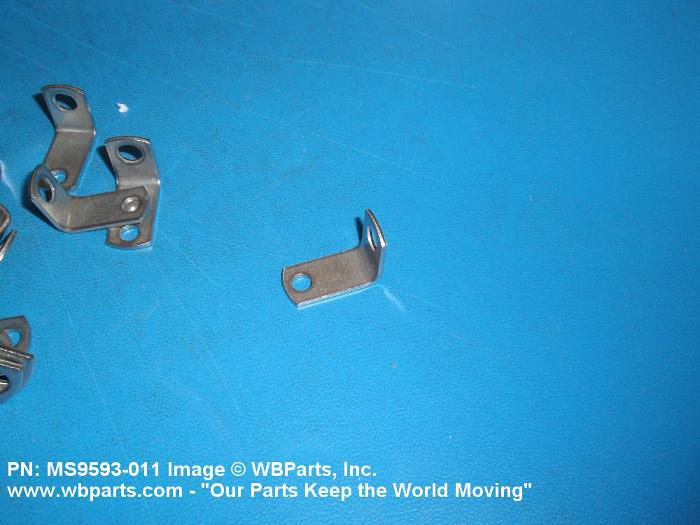

Drawings & Photos | NSN 5340-00-170-1704
Demand History | NSN 5340-00-170-1704
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS9593011 | 2008-07-191 | 100 | Australia |
Cross Reference | NSN 5340-00-170-1704
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS9593-011 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-170-1704
Related Products | NSN 5340-00-170-1704
Technical Data | NSN 5340-00-170-1704
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 321 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5510 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |
| III FIRST LEG LENGTH | 0.725 INCHES MINIMUM AND 0.735 INCHES MAXIMUM |
| III SECOND LEG LENGTH | 1.007 INCHES MINIMUM AND 1.017 INCHES MAXIMUM |
| III FIRST LEG THICKNESS | 0.056 INCHES MINIMUM AND 0.068 INCHES MAXIMUM |
| III SECOND LEG THICKNESS | 0.056 INCHES MINIMUM AND 0.068 INCHES MAXIMUM |
| III FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 102 |
| FIRST LEG WIDTH | 0.500 INCHES NOMINAL |
| FIRST LEG END RADIUS | 0.500 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 132 |
| FIRST LEG HOLE DIAMETER | 0.260 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.225 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 102 |
| SECOND LEG WIDTH | 0.500 INCHES NOMINAL |
| SECOND LEG END RADIUS | 0.500 INCHES NOMINAL |
| SECOND LEG HOLE ARRANGEMENT STYLE | 132 |
| SECOND LEG HOLE DIAMETER | 0.200 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.195 INCHES MINIMUM AND 0.205 INCHES MAXIMUM |
| (NON-CORE DATA) FABRICATION METHOD | STAMPED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9593-011 |
Restrictions/Controls & Freight Information | NSN 5340-00-170-1704
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
