NSN 5340-00-151-9804 LS5911BTH28L, 00-151-9804, 001519804
Product Details | WEBBING STRAP
5340-00-151-9804 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.20416800049Miscellaneous Aircraft Accessories and Components53400020Hardware, Commercial84650020Individual Equipment84700015Armor, Personal
Part Alternates: LS5911BTH28L, 5340-00-151-9804, 00-151-9804, 5340001519804, 001519804
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 JAN 1973 | 00-151-9804 | 20659 ( STRAP, WEBBING ) |
Drawings & Photos | NSN 5340-00-151-9804
Cross Reference | NSN 5340-00-151-9804
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS5911BTH28L | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-151-9804
Related Products | NSN 5340-00-151-9804
Technical Data | NSN 5340-00-151-9804
| Characteristic | Specifications |
|---|---|
| MATERIAL | COTTON, MIL-W-530, TYPE 2A, CLASS 3 |
| LENGTH | 28.000 INCHES NOMINAL |
| WIDTH | 1.000 INCHES NOMINAL |
| COLOR | GRAY, LIGHT GULL |
| END TYPE | FOLDED W/ATTACHMENT |
| FOLD TYPE | TIGHT |
| ATTACHMENT METHOD FOR WHICH DESIGNED | GROMMET SEWED |
| END ATTACHMENT/FASTENING FACILITY | END CLIP METALLIC GROMMET |
| END CLIP STYLE DESIGNATOR | E4 END CLIP |
| END CLIP MATERIAL | STEEL |
| END CLIP QUANTITY | 1 |
| GROMMET QUANTITY | 1 |

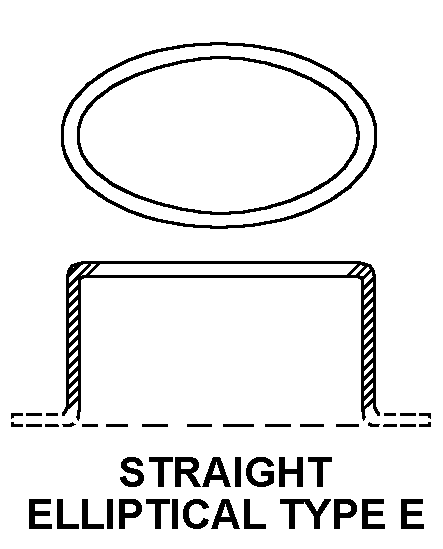

| GROMMET BARREL STYLE DESIGNATOR | F4 STRAIGHT ELLIPTICAL TYPE |
| GROMMET FLANGE STYLE DESIGNATOR | G1 FLANGE |
| GROMMET WASHER STYLE DESIGNATOR | H6 BARREL TYPE |
| DISTANCE FROM STRAP END TO FIRST GROMMET HOLE CENTER | 0.440 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| SPECIAL FEATURES | COLOR NO. 36440,FED-STD-595 |
| SPECIFICATION/STANDARD DATA | 98897-GLS5911 MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 5340-00-151-9804
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 179580 | STRAPS LEATHER IMITATION LEATHER |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-151-9804
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
