NSN 5340-00-138-9843 MS9593005, MS9593-005, 00-138-9843
Product Details | ANGLE BRACKET
5340-00-138-9843 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: MS9593005, MS9593-005, 5340-00-138-9843, 00-138-9843, 5340001389843, 001389843
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 AUG 1971 | 00-138-9843 | 16900 ( BRACKET, ANGLE ) |

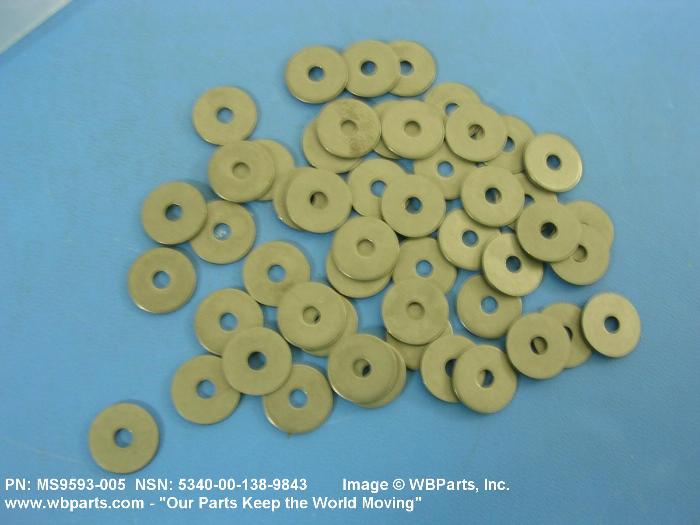

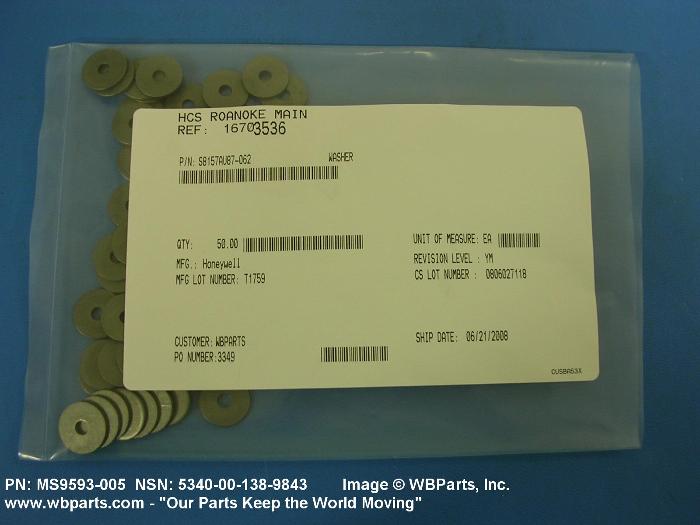

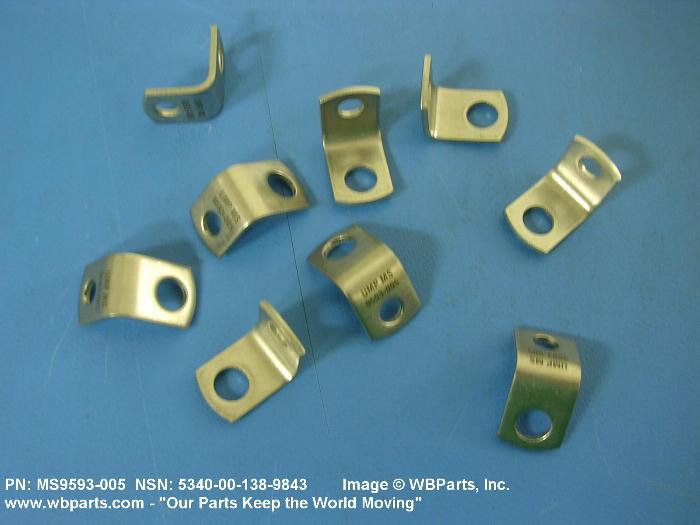

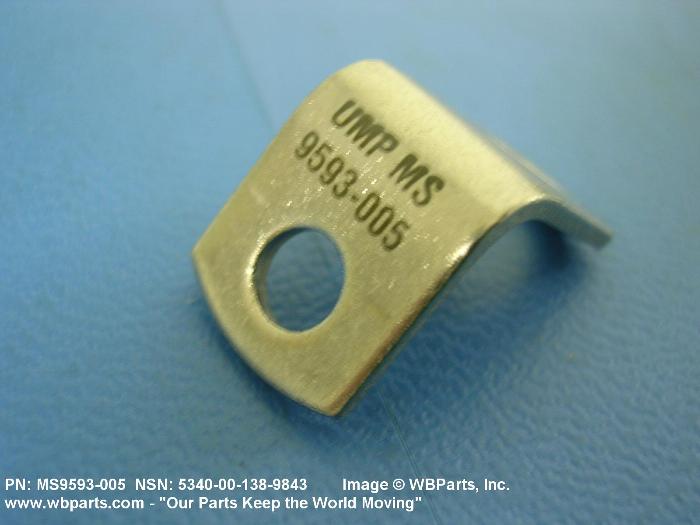

Drawings & Photos | NSN 5340-00-138-9843
Demand History | NSN 5340-00-138-9843
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-138-9843 | 2022-02-54 | 20 | US |
| MS9593005 | 2008-10-297 | 14 | United States |
| MS9593005 | 2008-06-172 | 2 | United States |
Cross Reference | NSN 5340-00-138-9843
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS9593-005 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-138-9843
Related Products | NSN 5340-00-138-9843
Technical Data | NSN 5340-00-138-9843
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 321 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5510 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |
| III FIRST LEG LENGTH | 0.638 INCHES NOMINAL |
| III SECOND LEG LENGTH | 0.730 INCHES NOMINAL |
| III FIRST LEG THICKNESS | 0.056 INCHES MINIMUM AND 0.068 INCHES MAXIMUM |
| III SECOND LEG THICKNESS | 0.056 INCHES MINIMUM AND 0.068 INCHES MAXIMUM |
| III FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 102 |
| FIRST LEG WIDTH | 0.500 INCHES NOMINAL |
| FIRST LEG END RADIUS | 0.500 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 132 |
| FIRST LEG HOLE DIAMETER | 0.200 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.195 INCHES MINIMUM AND 0.205 INCHES MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 102 |
| SECOND LEG WIDTH | 0.500 INCHES NOMINAL |
| SECOND LEG END RADIUS | 0.500 INCHES NOMINAL |
| SECOND LEG HOLE ARRANGEMENT STYLE | 132 |
| SECOND LEG HOLE DIAMETER | 0.260 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.225 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9593-005 |
Restrictions/Controls & Freight Information | NSN 5340-00-138-9843
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-138-9843
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
