NSN 5340-00-123-0201 10866059, 00-123-0201, 001230201
Product Details | ACCESS COVER
5340-00-123-0201 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 10866059, 5340-00-123-0201, 00-123-0201, 5340001230201, 001230201
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 NOV 1968 | 00-123-0201 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 5340-00-123-0201
Cross Reference | NSN 5340-00-123-0201
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10866059 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-123-0201
Technical Data | NSN 5340-00-123-0201
| Characteristic | Specifications |
|---|---|

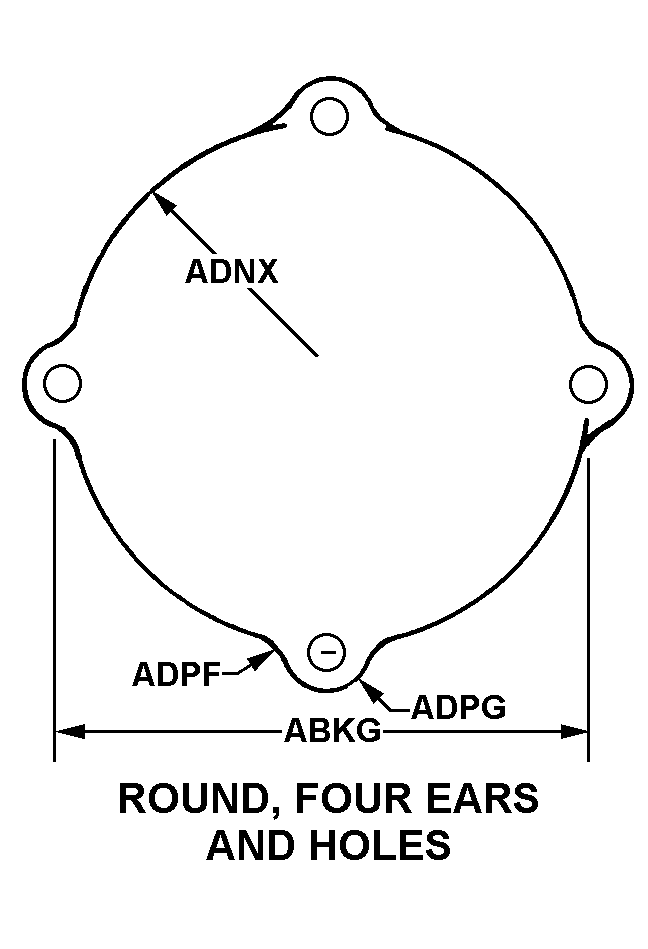

| PERIPHERAL SHAPE STYLE | 109 ROUND, FOUR EARS AND HOLES |
| BOLT CIRCLE DIAMETER | 2.370 INCHES NOMINAL |
| BODY RADIUS | 2.687 INCHES NOMINAL |
| INVERTED RADIUS | 0.437 INCHES NOMINAL |
| EAR RADIUS | 0.125 INCHES NOMINAL |
| MATERIAL | IRON |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-T-11466 MIL SPEC SINGLE MATERIAL RESPONSE |
| SECURING DEVICE TYPE | THREADED FASTENER |
| MOUNTING OPENING SHAPE STYLE | 1 UNTHREADED HOLE |
| HOLE DIAMETER | 0.406 INCHES NOMINAL |
| FEATURES PROVIDED | SEALING CAPABILITY |
Restrictions/Controls & Freight Information | NSN 5340-00-123-0201
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
