NSN 5340-00-111-5746 9643M50G01, 00-111-5746, 001115746
Product Details | ANGLE BRACKET
5340-00-111-5746 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 9643M50G01, 5340-00-111-5746, 00-111-5746, 5340001115746, 001115746
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 AUG 1968 | 00-111-5746 | 16900 ( BRACKET, ANGLE ) |

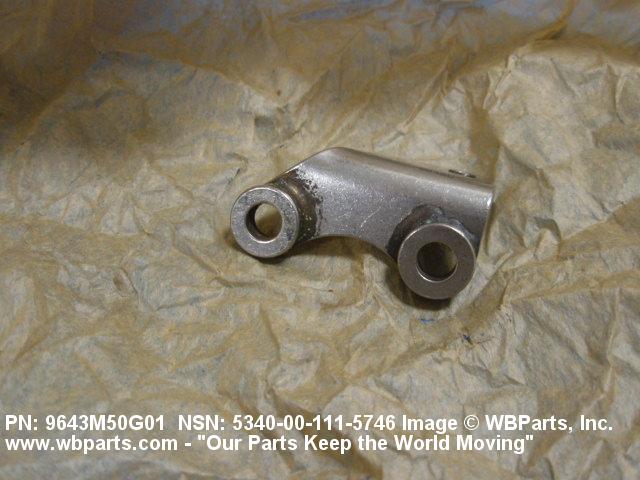

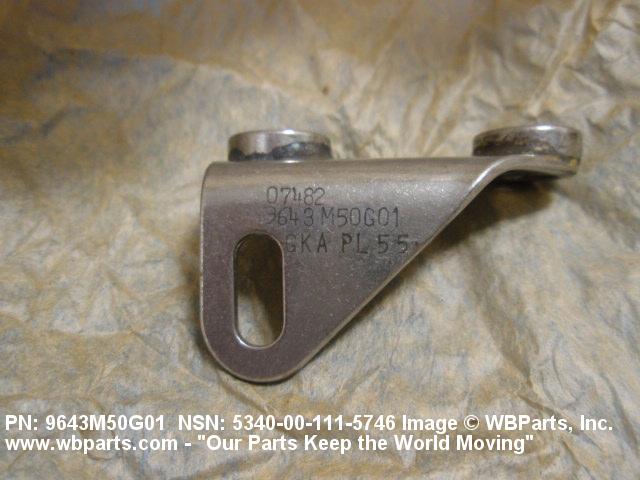

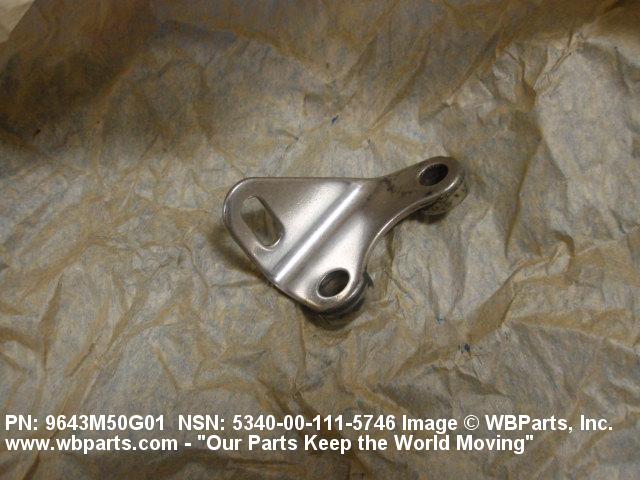

Drawings & Photos | NSN 5340-00-111-5746
Demand History | NSN 5340-00-111-5746
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-111-5746 | 2009-06-167 | 44 | United States |
| 5340-00-111-5746 | 2009-05-150 | 44 | DIBBS |
| 5340-00-111-5746 | 2009-04-118 | 39 | DIBBS |
| 5340-00-111-5746 | 2008-07-189 | 26 | DIBBS |
| 5340-00-111-5746 | 2008-05-127 | 24 | DIBBS |
Cross Reference | NSN 5340-00-111-5746
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9643M50G01 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-111-5746
Related Products | NSN 5340-00-111-5746
Technical Data | NSN 5340-00-111-5746
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5645 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |
| FIRST LEG LENGTH | 0.910 INCHES NOMINAL |
| SECOND LEG LENGTH | 1.330 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.073 INCHES MINIMUM AND 0.087 INCHES MAXIMUM |
| SECOND LEG THICKNESS | 0.203 INCHES MINIMUM AND 0.257 INCHES MAXIMUM |
| FIRST LEG ANGLE | 0.140 RADIANS MINIMUM AND 0.160 RADIANS MAXIMUM |
| FIRST LEG STYLE | 105 CORNER RADIUS |
| FIRST LEG WIDTH | 1.890 INCHES NOMINAL |
| FIRST LEG CORNER RADIUS | 0.625 INCHES NOMINAL |
| SECOND LEG WIDTH | 1.330 INCHES NOMINAL |

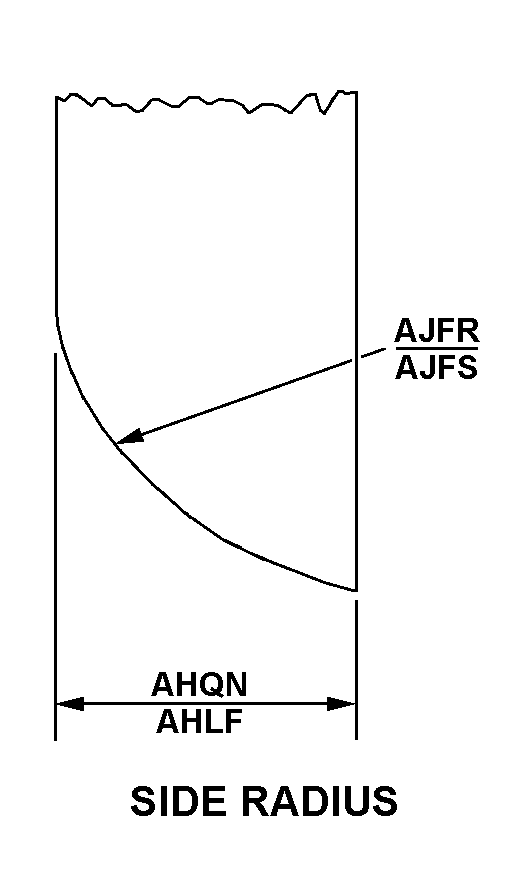

| SECOND LEG SIDE RADIUS | 0.260 INCHES MINIMUM AND 0.300 INCHES MAXIMUM |
| FIRST LEG HOLE ARRANGEMENT STYLE | 133 TWO HOLES |
| FIRST LEG HOLE DIAMETER | 0.280 INCHES MINIMUM AND 0.287 INCHES MAXIMUM |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 1.330 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.140 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.140 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.210 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.530 INCHES NOMINAL |
| SECOND LEG SLOT LENGTH | 0.480 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| SECOND LEG SLOT WIDTH | 0.210 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 103 SIDE RADIUS |
| SECOND LEG HOLE ARRANGEMENT STYLE | 146 ONE SLOT |
| MOUNTING HOLE TYPE | PLAIN |
| MANUFACTURERS CODE | 07482 |
| DESIGN CONTROL REFERENCE | 9643M50G01 |
