NSN 5340-00-088-6085 249SIZE4BR0NZE, 00-088-6085, 000886085
Product Details | SNAP HOOK
5340-00-088-6085 A metal fastening device one or both ends of which are hook shaped with a closing or locking device over the throat opening which is held closed by spring action. If hook shaped on one end only the opposite end is provided with a fixed, loose, or swivel loop or opening for connecting to another item. Excludes cargo hooks with safety devices.
Part Alternates: 249SIZE4BR0NZE, 5340-00-088-6085, 00-088-6085, 5340000886085, 000886085
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 DEC 1967 | 00-088-6085 | 16954 ( SNAP HOOK ) |
Drawings & Photos | NSN 5340-00-088-6085
Cross Reference | NSN 5340-00-088-6085
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 249SIZE4BR0NZE | 79577 | NORTH AND JUDD INC WILCOX-CRITTENDEN DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-088-6085
Related Products | NSN 5340-00-088-6085
Technical Data | NSN 5340-00-088-6085
| Characteristic | Specifications |
|---|---|

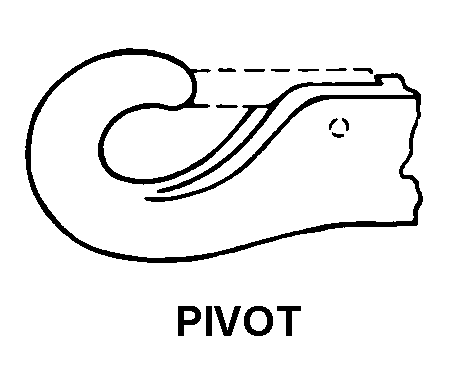

| HOOK STYLE DESIGNATOR | 5A PIVOT |
| DESIGN TYPE | FIXED |
| END POSITION | CONNECTION END AT RIGHT ANGLE TO PLANE OF HOOK END |

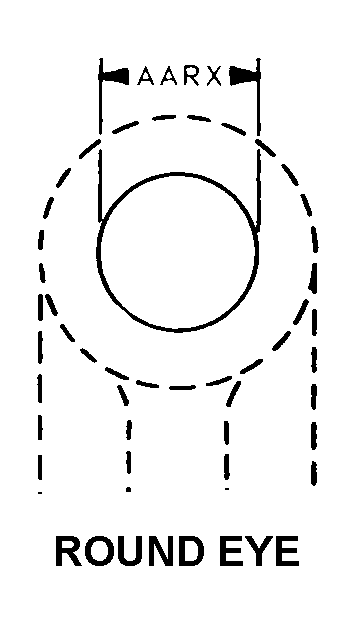

| END CONNECTION STYLE | 1 ROUND EYE |
| INSIDE DIAMETER | 0.875 INCHES NOMINAL |
| HOOK MATERIAL | BRONZE |
| CONNECTION END MATERIAL | BRONZE |
| OVERALL LENGTH | 4.250 INCHES NOMINAL |
| RUBBER COVERED FEATURE | NOT INCLUDED |
| UNATTACHED RING | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 5340-00-088-6085
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095360 | HOOKS NOI BRASS/BRONZE/COPPER |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-088-6085
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
