NSN 5340-00-061-1148 MSS SP-58 TY11, MSSSP58TY11, AA1192
Product Details | PIPE HANGER
5340-00-061-1148 A metallic or nonmetallic item designed to suspend, support, retain, and/or position items such as cable(s), conduit(s), pipe(s), tube(s), and the like from a structure. It may be fastened vertically or horizontally to the structure by means of rod(s), bolt(s), screw(s), and the like. Excludes CLAMP (1), LOOP; STRAP, RETAINING; CLAMP (1), ELECTRICAL; HANGER, WIRE STRAND, SUPPORT (1), ELECTRICAL CABLE; HANGER, CABLE; and hook, support.
Part Alternates: MSS SP-58 TY11, MSSSP58TY11, AA1192, A-A-1192, A-A-1192 TY11, AA1192TY11, 6003, 5340-00-061-1148, 00-061-1148, 5340000611148, 000611148
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-061-1148 | 42764 ( HANGER, PIPE ) |
Drawings & Photos | NSN 5340-00-061-1148
Cross Reference | NSN 5340-00-061-1148
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6003 | 82863 | PAINE CO THE |
| A-A-1192 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-1192 TY11 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| MSS SP-58 TY11 | 59646 | MANUFACTURERS STANDARDIZATION SOCIETY OF THE VALVE AND FITTINGS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-061-1148
Related Products | NSN 5340-00-061-1148
Technical Data | NSN 5340-00-061-1148
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON, MALLEABLE AND STEEL |
| SURFACE TREATMENT | COPPER |

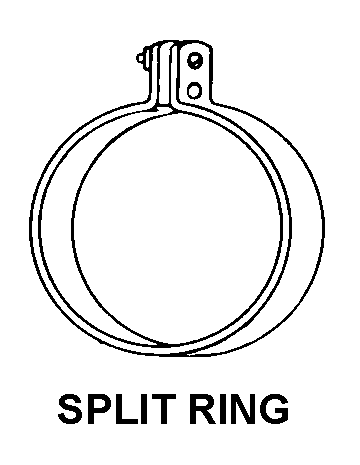

| STYLE DESIGNATOR | 7F SPLIT RING |
| SUPPORTED ITEM AND QUANTITY | 1 TUBE |
| TUBE ACCOMMODATION OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 11 TYPE |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-1192 |
Restrictions/Controls & Freight Information | NSN 5340-00-061-1148
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105500 | HANGERS PIPE NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-061-1148
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
U EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
U EA : Each |
