NSN 5340-00-045-7329 SKS2428, 00-045-7329, 000457329
Product Details | CLAMPING CATCH
5340-00-045-7329 A positive fastening device consisting of a mountable base with an extended loop, claw, or the like. It may include a catch strike and mounting hardware for its complete installation on flat surfaces. The loop, claw, or the like can be manually engaged or disengaged readily for the purpose of securing the mating sections of a suitcase, locker-trunk, shipping and storage container, prefabricated building, tool chest or the like. Excludes CATCH, ELBOW; CATCH, FLUSH; CATCH, FRICTION; and LATCH or LOCK (as modified).
Part Alternates: SKS2428, 5340-00-045-7329, 00-045-7329, 5340000457329, 000457329
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 MAY 1967 | 00-045-7329 | 26525 ( CATCH, CLAMPING ) |
Drawings & Photos | NSN 5340-00-045-7329
Demand History | NSN 5340-00-045-7329
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-045-7329 | 2010-03-80 | 20 | DIBBS |
Cross Reference | NSN 5340-00-045-7329
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SKS2428 | 74284 | SKYDYNE COMPANY, THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-045-7329
Related Products | NSN 5340-00-045-7329
Technical Data | NSN 5340-00-045-7329
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CATCH STEEL COMP 4130 STRIKE |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| STYLE DESIGNATOR | B4 SPECIAL |
| HOLE DIAMETER | 0.189 INCHES NOMINAL |
| ENGAGING SURFACE WIDTH | 0.690 INCHES NOMINAL |
| ENGAGING SURFACE THICKNESS | 0.060 INCHES NOMINAL |
| CATCH WIDTH | 0.833 INCHES NOMINAL |
| WING NUT WIDTH | 1.630 INCHES NOMINAL |
| EXTENDED TENSION SPRING WIDTH | 1.875 INCHES NOMINAL |
| HOLE QUANTITY | 2 |

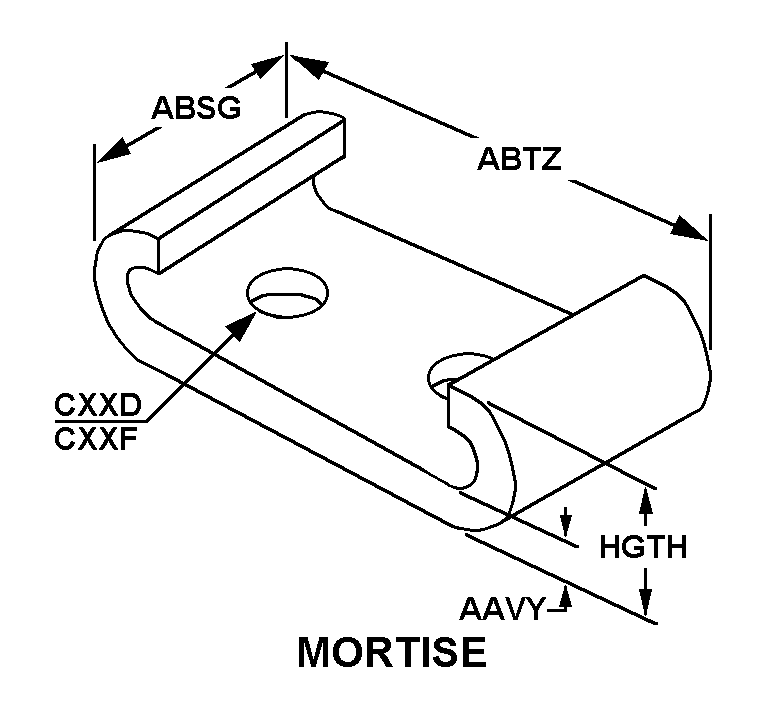

| CATCH STRIKE STYLE | R14 MORTISE |
| MATERIAL THICKNESS | 0.060 INCHES NOMINAL |
| WIDTH | 0.680 INCHES NOMINAL |
| OVERALL LENGTH | 1.750 INCHES NOMINAL |
| SURFACE HOLE DIAMETER | 0.334 INCHES MINIMUM AND 0.344 INCHES MAXIMUM |
| HEIGHT | 0.550 INCHES NOMINAL |
| SURFACE HOLE QUANTITY | 2 |
| OVERALL LENGTH | 1.875 INCHES NOMINAL |
| DESIGN TYPE | CLAW ENGAGING |
| OPERATION METHOD | WING NUT |
Restrictions/Controls & Freight Information | NSN 5340-00-045-7329
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093880 | CATCHES/LATCHES METAL NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-045-7329
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
