NSN 5340-00-030-7742 102110, 00-030-7742, 000307742
Product Details | HAND CRANK
5340-00-030-7742 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.20229900045Miscellaneous Engine Accessories, Nonaircraft53400020Hardware, Commercial
Part Alternates: 102110, 5340-00-030-7742, 00-030-7742, 5340000307742, 000307742
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 OCT 1972 | 00-030-7742 | 17533 ( CRANK, HAND ) |
Drawings & Photos | NSN 5340-00-030-7742
Cross Reference | NSN 5340-00-030-7742
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102110 | 14440 | TELEDYNE CAMERA SYSTEMS TELEDYNE INC COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-030-7742
Related Products | NSN 5340-00-030-7742
Technical Data | NSN 5340-00-030-7742
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, CORROSION RESISTING OVERALL |
| SURFACE TREATMENT AND LOCATION | OXIDE OVERALL |
| ARM STYLE | 5 STRAIGHT |
| DRIVE END STYLE | 105 EXTERNAL |
| LENGTH FROM END TO ARM CENTER | 1.564 INCHES NOMINAL |

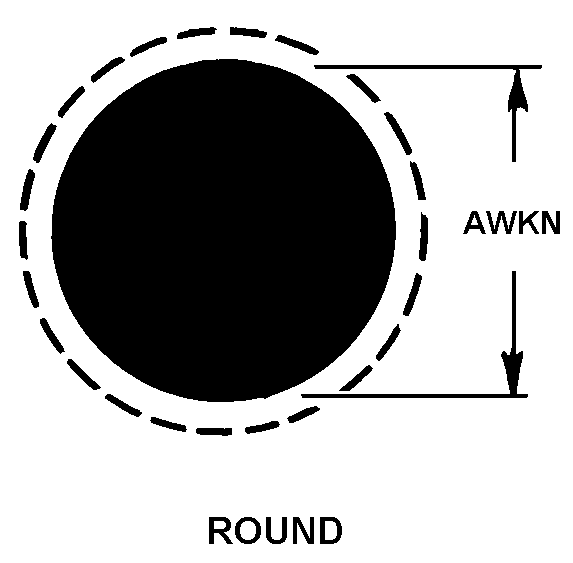

| DRIVE FACILITY STYLE | 158 ROUND |
| DRIVE FACILITY OUTSIDE DIAMETER | 0.1873 INCHES NOMINAL |
| CRANK OVERALL LENGTH | 2.326 INCHES NOMINAL |
| HANDLE MOUNTING METHOD | BOLT |
| HANDLE STYLE | 64 ROUND |
| HANDLE LENGTH | 0.596 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | INCLUDED |
| RATCHET | NOT INCLUDED |
| MANUFACTURERS CODE | 14440 |
| DESIGN CONTROL REFERENCE | 102110 |
Restrictions/Controls & Freight Information | NSN 5340-00-030-7742
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-030-7742
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
