NSN 5340-00-029-8478 265175, 2651-75, 00-029-8478
Product Details | FILLER OPENING CAP
5340-00-029-8478 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: 265175, 2651-75, 5340-00-029-8478, 00-029-8478, 5340000298478, 000298478
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-029-8478 | 30128 ( CAP, FILLER OPENING ) |

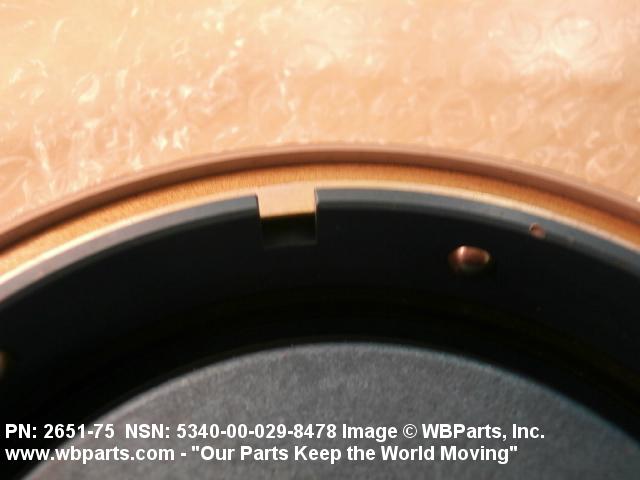

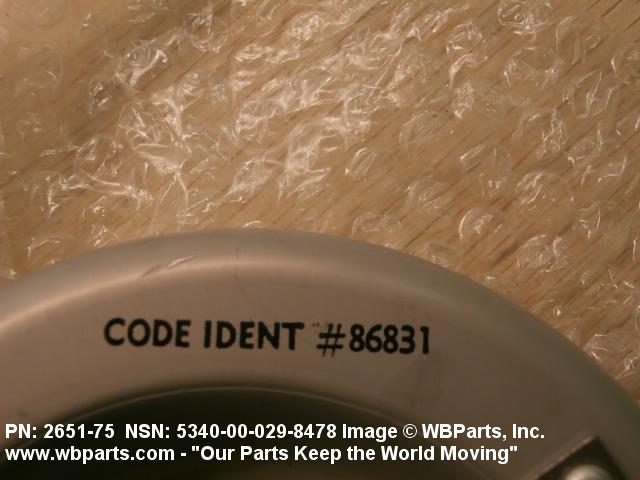

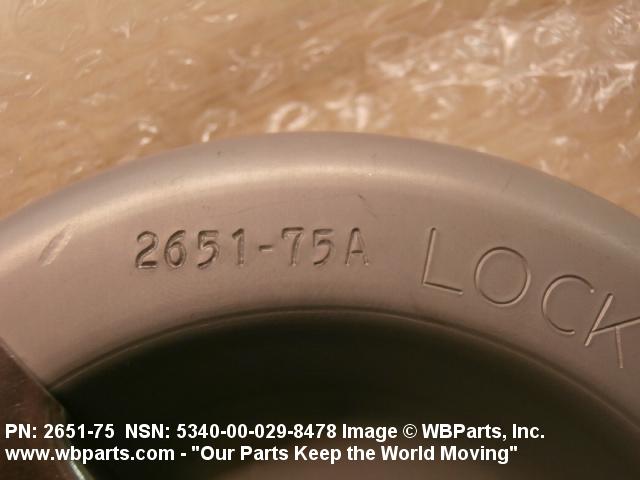

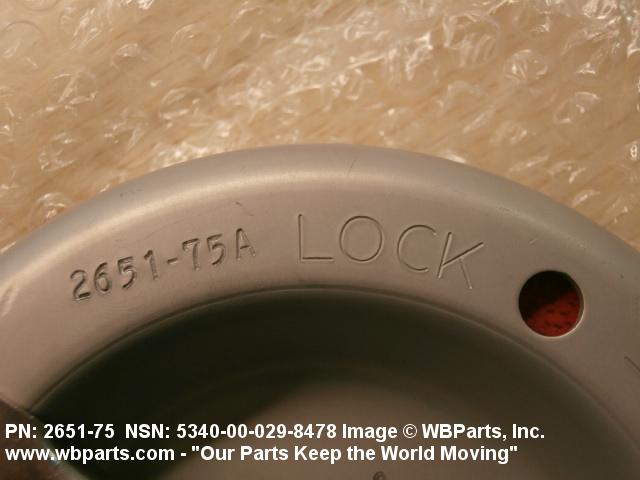

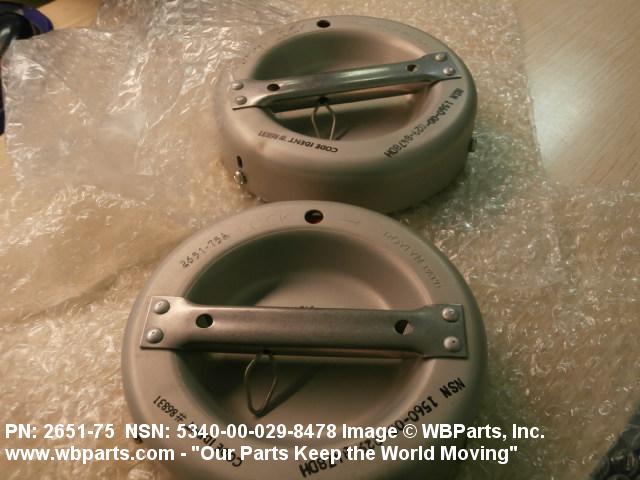

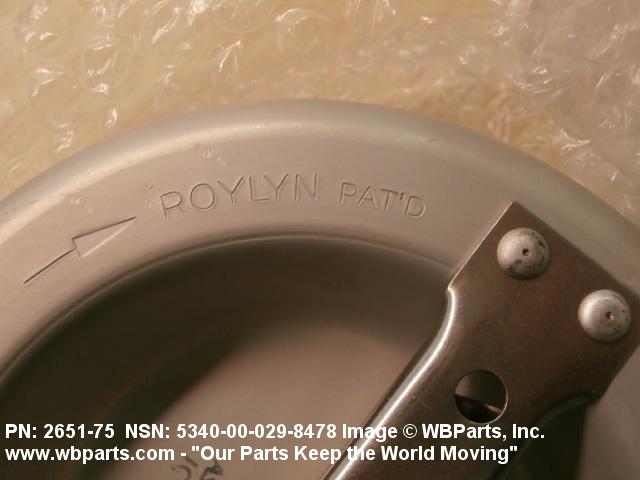

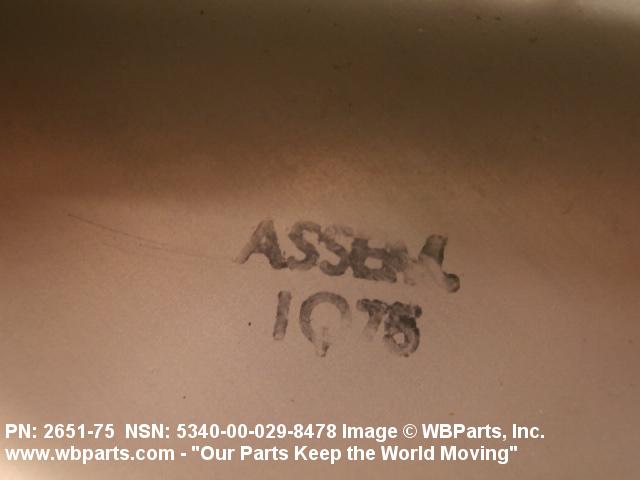

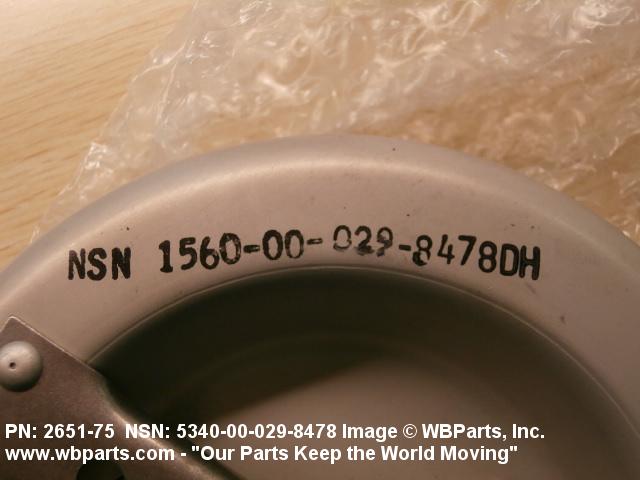

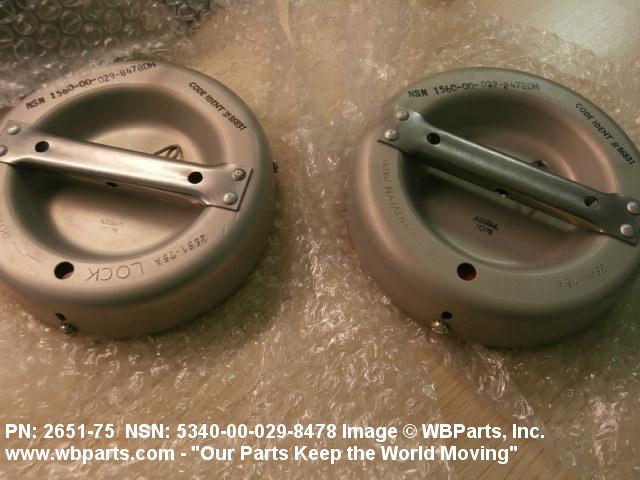

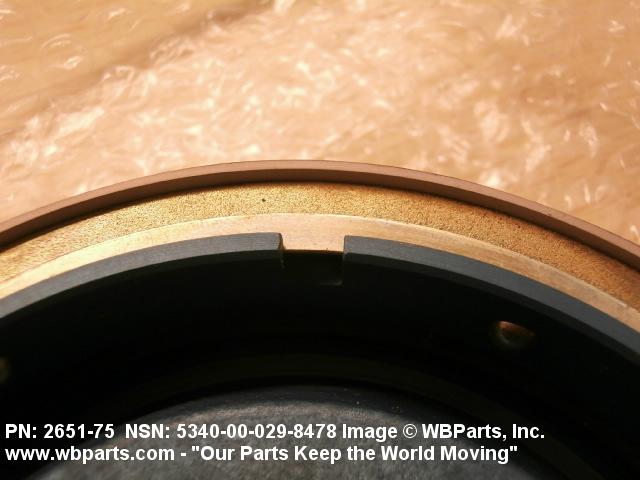

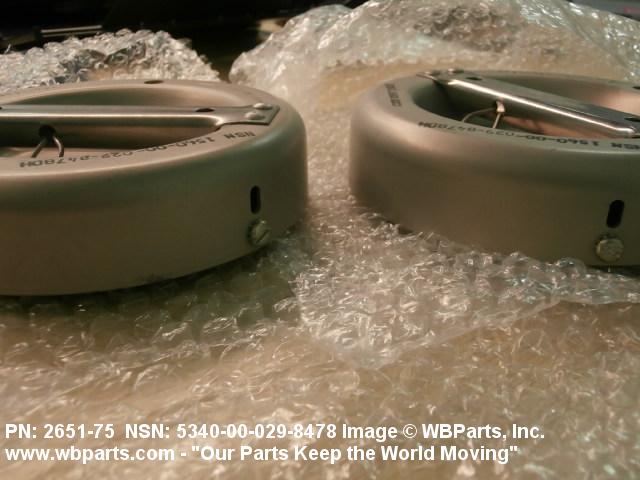

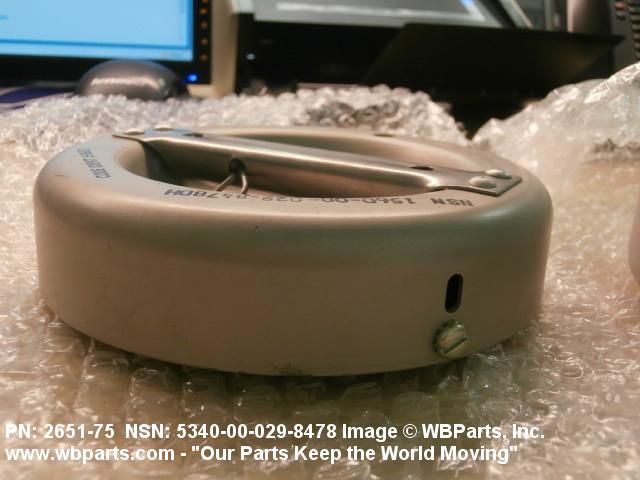

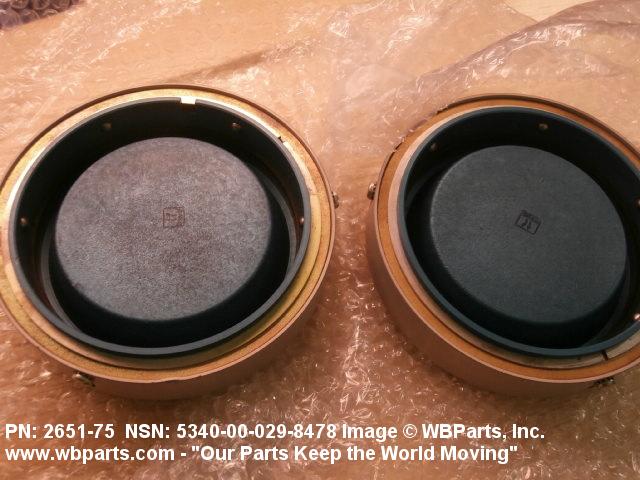

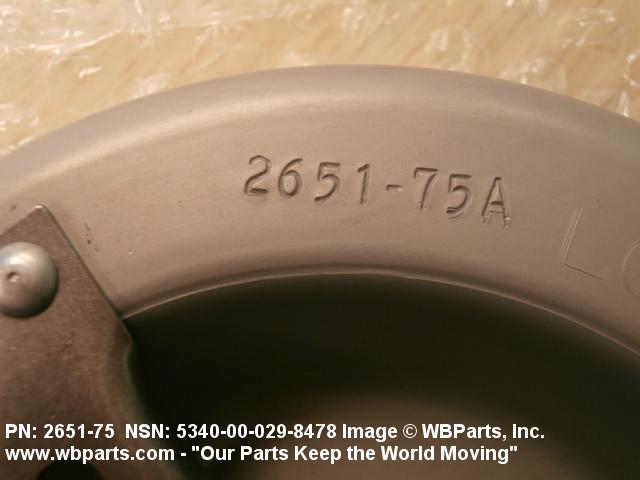

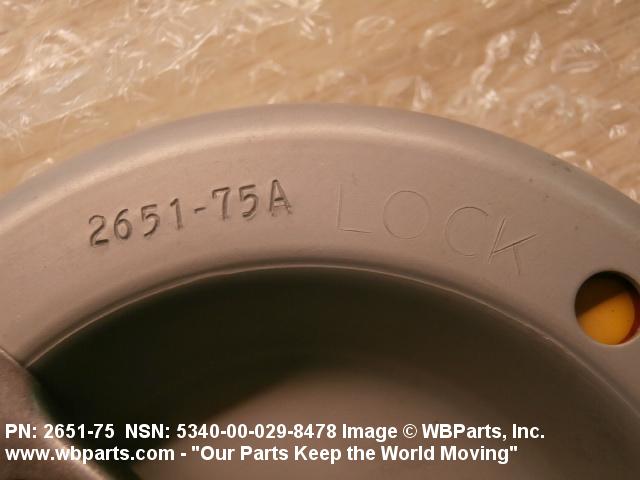

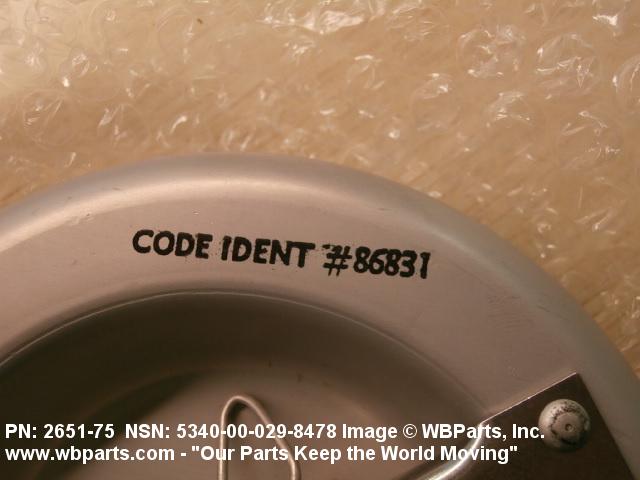

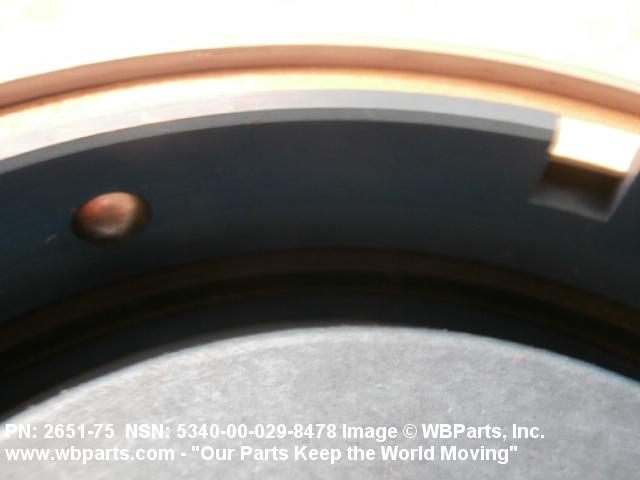

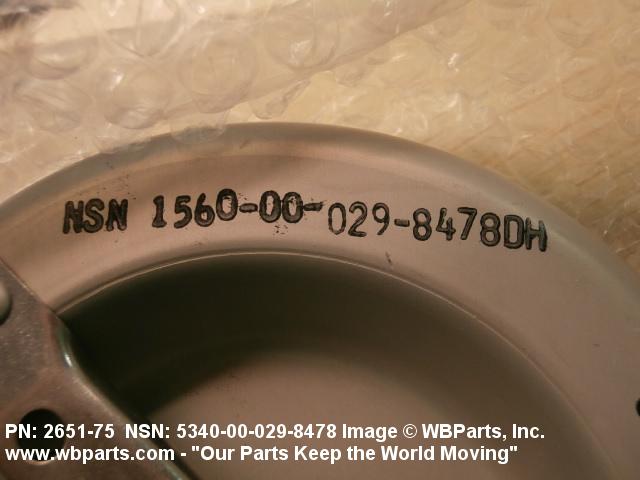

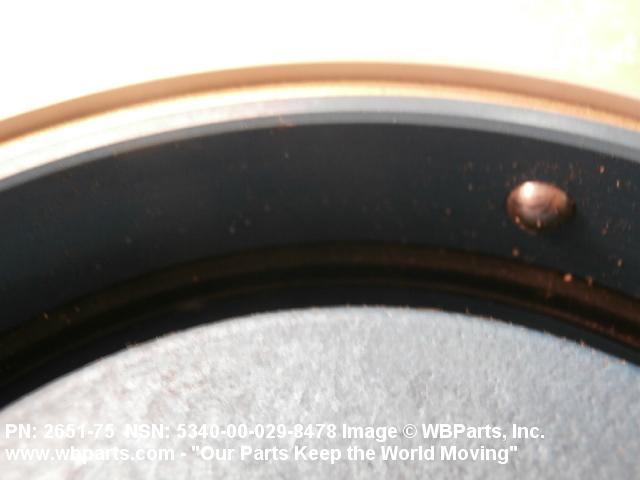

Drawings & Photos | NSN 5340-00-029-8478
Demand History | NSN 5340-00-029-8478
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-029-8478 | 2015-08-231 | 2 | Austria |
| 5340-00-029-8478 | 2015-07-189 | 2 | Austria |
Cross Reference | NSN 5340-00-029-8478
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2651-75 | 86831 | ROCKWELL COLLINS ELECTROMECHANICAL SYSTEMS, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-029-8478
Technical Data | NSN 5340-00-029-8478
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| STYLE DESIGNATOR | B1 OUTSIDE CAM TYPE |
| OUTSIDE DIAMETER | 5.450 INCHES NOMINAL |
| OVERALL HEIGHT | 1.280 INCHES NOMINAL |
| SYSTEM FOR WHICH DESIGNED | NONPRESSURIZED |
| MAXIMUM WORKING PRESSURE | NOT RATED |
| CAM QUANTITY | 6 |
| GRIPPING ACCOMMODATION TYPE | HANDLE |
| LOCKING DEVICE TYPE | INTEGRAL SELF LOCK |
| SPECIAL MARKINGS | LOCK |
| MANUFACTURERS CODE | 86831 |
| DESIGN CONTROL REFERENCE | 2651-75 |
Restrictions/Controls & Freight Information | NSN 5340-00-029-8478
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116430 | CAPS,ENGINE RADIATOR |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-029-8478
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9V | Navy-owned stocks of material managed by the Air Force within the San Antonio Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | JCD | |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
