NSN 5340-00-007-6342 77D601128P001, 00-007-6342, 000076342
Product Details | DOOR HANDLE
5340-00-007-6342 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: 77D601128P001, 5340-00-007-6342, 00-007-6342, 5340000076342, 000076342
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JUL 1972 | 00-007-6342 | 18073 ( HANDLE, DOOR ) |
Drawings & Photos | NSN 5340-00-007-6342
Demand History | NSN 5340-00-007-6342
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 77D601128P001 | 2023-08-213 | 3 | DIBBS |
| 77D601128P001 | 2023-04-107 | 4 | DIBBS |
| 77D601128P001 | 2023-04-106 | 2 | DIBBS |
| 77D601128P001 | 2023-03-85 | 2 | DIBBS |
| 77D601128P001 | 2022-11-319 | 2 | DIBBS |
| 77D601128P001 | 2022-09-268 | 2 | DIBBS |
Cross Reference | NSN 5340-00-007-6342
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 77D601128P001 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-007-6342
Technical Data | NSN 5340-00-007-6342
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-371,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PAINT HANDLE CHROMATE SHAFT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE SHAFT |
| COLOR | BLACK OVERALL |
| STYLE DESIGNATOR | C17 L |
| HEAD DIAMETER | 1.250 INCHES NOMINAL |
| OVERALL LENGTH | 5.125 INCHES NOMINAL |
| HANDLE HEIGHT | 1.940 INCHES NOMINAL |
| HANDLE CLEARANCE | 0.875 INCHES NOMINAL |

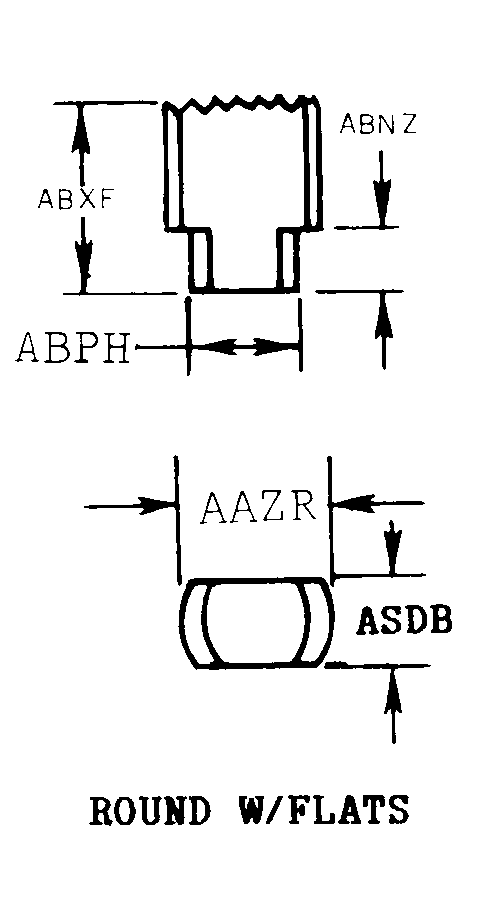

| INTEGRAL SHAFT STYLE | U10 ROUND W/FLATS |
| MAJOR DIAMETER | 0.625 INCHES NOMINAL |
| EFFECTIVE LENGTH | 0.800 INCHES NOMINAL |
| SMALL END DIAMETER | 0.496 INCHES NOMINAL |
| SHAFT LENGTH | 2.400 INCHES NOMINAL |
| SPECIAL FEATURES | INTEGRAL SHAFT ONE FLAT ON END ONLY |
| MANUFACTURERS CODE | 03538 |
| DESIGN CONTROL REFERENCE | 77D601128P001 |
Restrictions/Controls & Freight Information | NSN 5340-00-007-6342
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-007-6342
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
