Product Details | O-RING

5331-00-846-1956 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.

Part Alternates: MS29561224, MS29561-224, MS9241224, MS9241-224, AS3551224, AS3551-224, 5331-00-846-1956, 00-846-1956, 5331008461956, 008461956

Hardware and Abrasives | O-Ring

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-846-1956

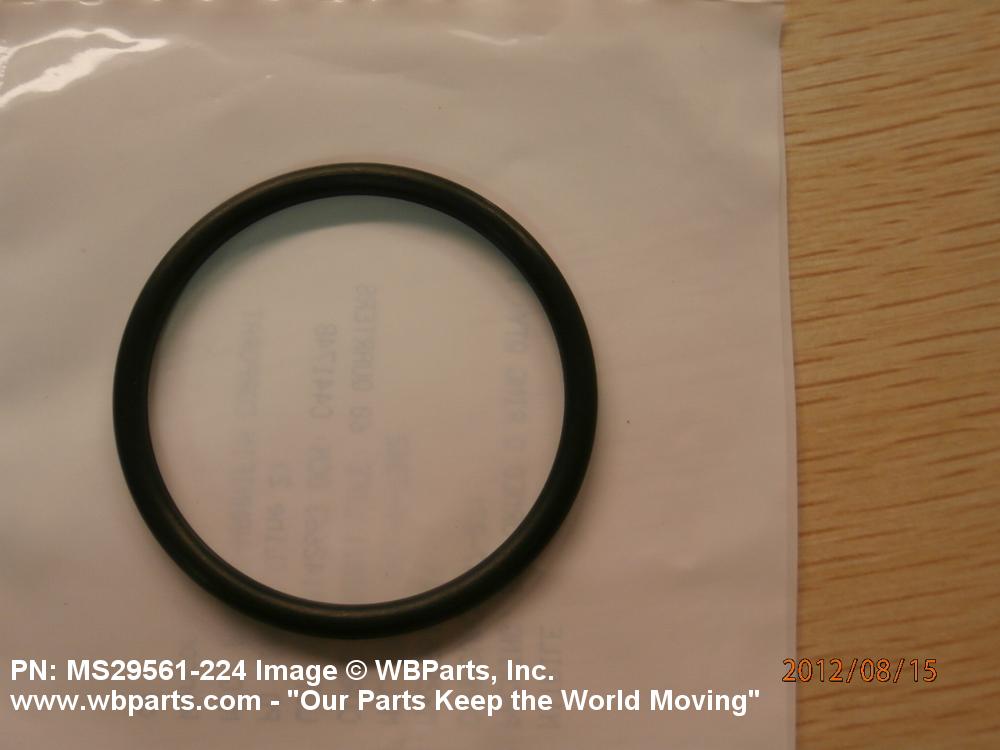

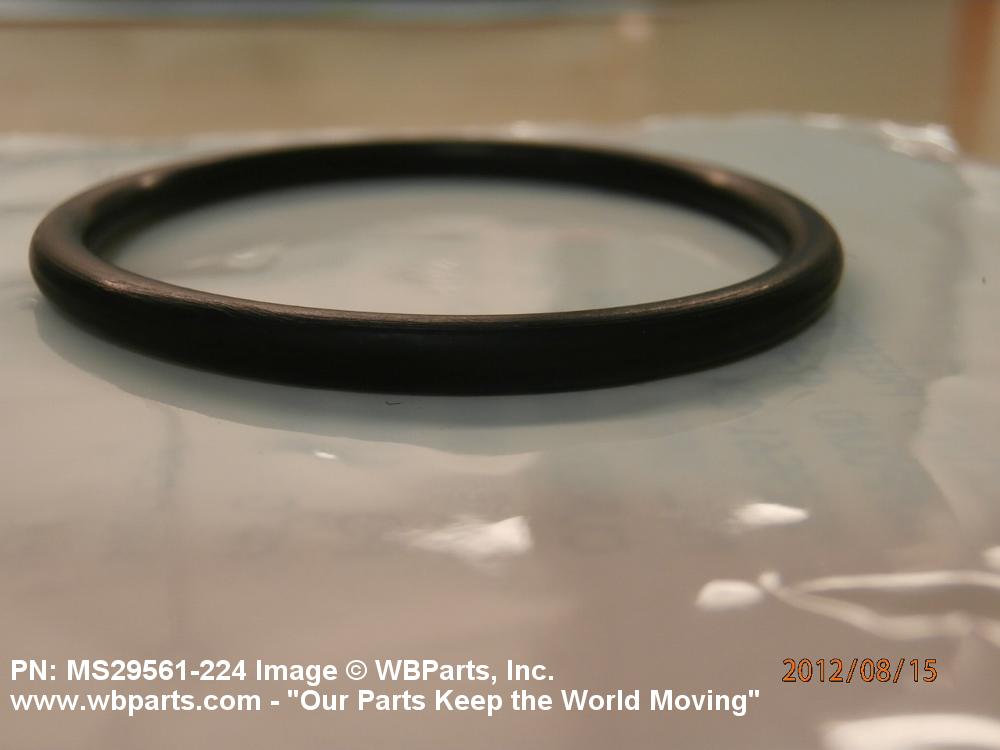

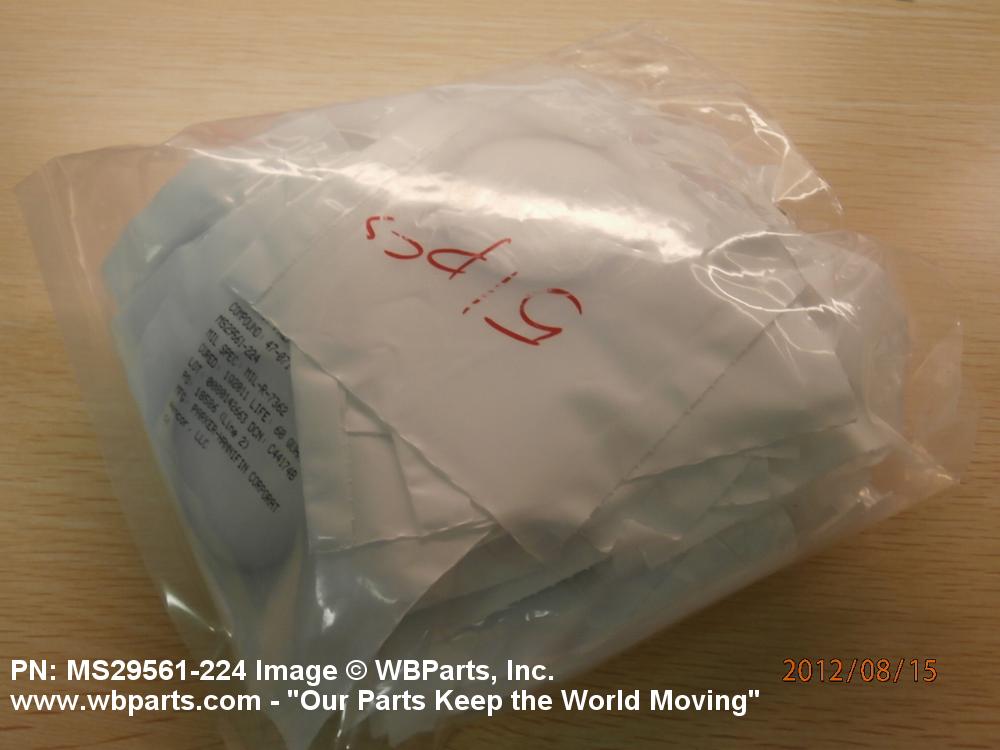

Drawings & Photos | NSN 5331-00-846-1956


Demand History | NSN 5331-00-846-1956

Part Number Request Date QTY Origin
5331-00-846-1956 2023-05-149 60 Philippines
5331-00-846-1956 2023-04-94 30 CN
5331-00-846-1956 2022-11-306 12 US
5331-00-846-1956 2022-11-306 50 US
5331-00-846-1956 2022-03-79 20 Philippines
MS29561224 2022-01-20 2 US
5331-00-846-1956 2021-06-167 100 Canada
MS9241224 2018-07-201 1 US
MS9241-224 2016-12-348 20 US
5331-00-846-1956 2016-11-312 1500 DIBBS
5331-00-846-1956 2014-06-159 1500 DIBBS
MS29561224 2012-08-216 50 United States
5331-00-846-1956 2012-07-194 6 United States
MS9241-224 2010-11-319 200
5331-00-846-1956 2009-11-328 1500 DIBBS
MS9241224 2009-09-258 2 US
5331-00-846-1956 2009-07-187 50 BA
MS9241224 2009-04-98 1 US
5331-00-846-1956 2008-07-199 1500 DIBBS

Cross Reference | NSN 5331-00-846-1956

Part Number Cage Code Manufacturer
AS3551-224 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS29561-224 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS9241-224 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5331-00-846-1956

Technical Data | NSN 5331-00-846-1956

Characteristic Specifications
MATERIAL RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR
CENTER HOLE DIAMETER 1.724 INCHES MINIMUM AND 1.744 INCHES MAXIMUM
CROSS-SECTIONAL HEIGHT 0.135 INCHES MINIMUM AND 0.143 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5331-00-846-1956

Category Code Description
Shelf-Life Code:Y180 months
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
