NSN 5331-00-800-8718 MS28775139, MS28775-139, MS28775139ES

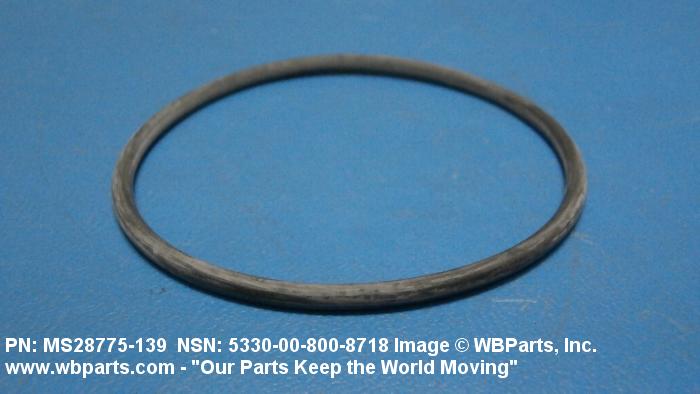

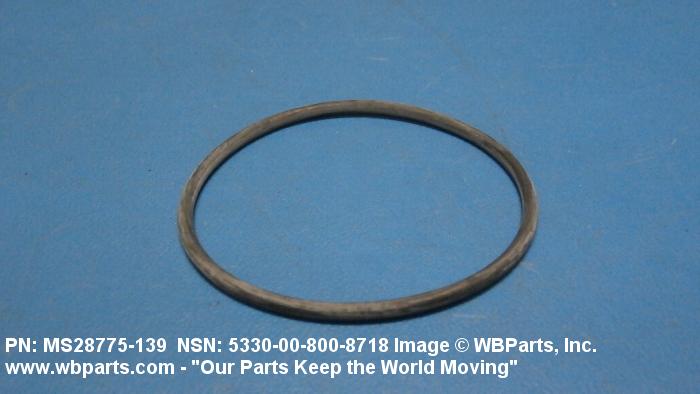

Product Details | O-RING

5331-00-800-8718 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.

Part Alternates: MS28775139, MS28775-139, MS28775139ES, MS28775-139ES, NB39813972, ARP568-139 MIL- P-83461, ARP568-139MILP2 5732, ARP568139MILP25732, ARP568139MILP83461, SAE AS 28775 , SAEAS28775, W4072833AL, Z00.N7423261628TBM, Z00N7423261628TBM, 700139355C, 700-139-355C, 1376-16-161, 161979, 199993, 2-136 N304-75, 2136N30475, 2139, 2-139, 2-139 N304-75, 2139N30475, 2-139N304-75, 0411161139, 0411161-139, 10154079 , 2300-79069, 5331-00-800-8718, 00-800-8718, 5331008008718, 008008718, 137616161, 230079069

Hardware and Abrasives | O-Ring

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-800-8718	47946 ( O-RING )

Drawings & Photos | NSN 5331-00-800-8718

Part Number	Request Date	QTY	Origin
5331-00-800-8718	2024-01-07	369	DIBBS
5331-00-800-8718	2023-12-341	1796	DIBBS
5331-00-800-8718	2022-09-248	3448	DIBBS
5331-00-800-8718	2020-11-321	1	DIBBS-RFPs
5331-00-800-8718	2018-08-218	2000	DIBBS
5331-00-800-8718	2018-07-201	1	DIBBS-RFPs
MS28775139	2018-04-120	4	US
5331-00-800-8718	2016-08-215	2174	DIBBS
5331-00-800-8718	2016-06-159	4436	DIBBS
5331-00-800-8718	2016-03-83	1	DIBBS-RFPs
2-136 N304-75	2016-03-81	27	United States
5331-00-800-8718	2014-08-226	4660	DIBBS
5331-00-800-8718	2014-06-178	3228	DIBBS
5331-00-800-8718	2014-05-129	1305	DIBBS
2-139	2013-08-229	76	Canada
5331-00-800-8718	2012-06-158	2429	DIBBS
5331-00-800-8718	2010-12-356	2982	DIBBS
5331-00-800-8718	2008-12-354	1500	DIBBS
5331-00-800-8718	2008-02-32	3000	DIBBS

Cross Reference | NSN 5331-00-800-8718

Part Number	Cage Code	Manufacturer
0411161-139	96214	RAYTHEON COMPANY DBA RAYTHEON
1376-16-161	A0199	OTO MELARA SPA
1376-16-161	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
161979	62983	EATON AEROSPACE LLC
199993	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2-136 N304-75	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2-139	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2-139 N304-75	C0308	O-RING DIVISION EUROPE
2-139 N304-75	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2-139N304-75	02697	PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER
2300-79069	A0199	OTO MELARA SPA
230079069	0291H	ROSOMAK S.A
700-139-355C	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
ARP568-139 MIL- P-83461	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
ARP568-139MILP2 5732	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS28775-139	0XK26	SEALS & PACKINGS, INC.
MS28775-139	1K697	DBR INDUSTRIES, INC.
MS28775-139	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS28775-139	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS28775-139	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS28775-139ES	H2313	ERIKS B.V.
NB39813972	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
SAE AS 28775	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
W4072833AL	S3092	RHEINMETALL AIR DEFENCE AG
Z00.N7423261628TBM	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5331-00-800-8718

Compare

Related Products | NSN 5331-00-800-8718

5331-00-800-8773, 5331-00-800-9004, 5331-00-801-0895, 5331-00-801-0899, 5331-00-801-1283

Technical Data | NSN 5331-00-800-8718

Characteristic	Specifications
MATERIAL	RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR

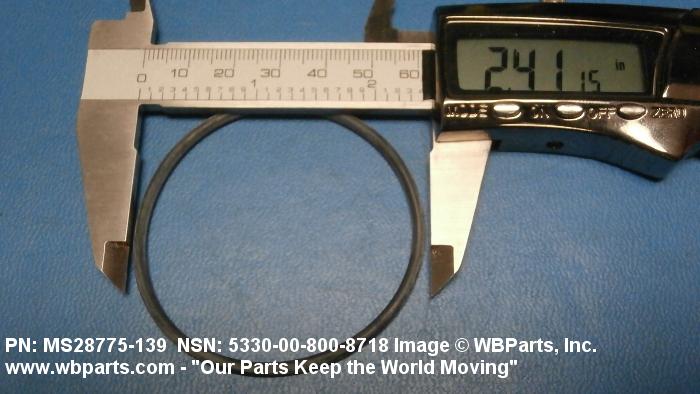

CENTER HOLE DIAMETER	2.165 INCHES MINIMUM AND 2.185 INCHES MAXIMUM

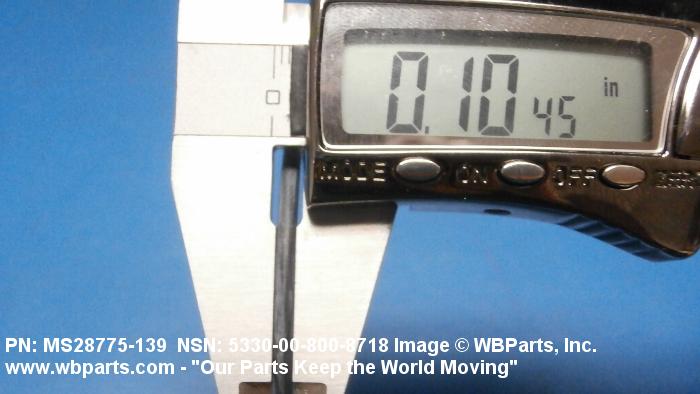

CROSS-SECTIONAL HEIGHT	0.100 INCHES MINIMUM AND 0.106 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5331-00-800-8718

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	Y	180 months
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	596	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5331-00-800-8718

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each
