NSN 5331-00-800-6351 MS29561131, MS29561-131, STD3019C131
Product Details | O-RING

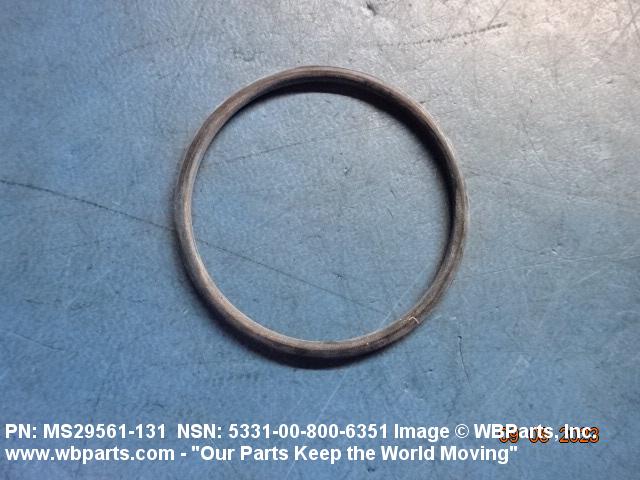

5331-00-800-6351 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: MS29561131, MS29561-131, STD3019C131, 2-131-47-071, 2-131 470-071, 2131470071, 5331-00-800-6351, 00-800-6351, 5331008006351, 008006351, 213147071
Hardware and Abrasives | O-Ring
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 01 JAN 1962 | 00-800-6351 | 47946 ( O-RING ) |
Demand History | NSN 5331-00-800-6351
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5331-00-800-6351 | 2024-05-151 | 1112 | DIBBS |
5331-00-800-6351 | 2023-10-285 | 1112 | DIBBS |
MS29561131 | 2023-08-219 | 15 | us |
5331-00-800-6351 | 2022-11-313 | 150 | IN |
MS29561131 | 2022-01-20 | 4 | US |
5331-00-800-6351 | 2018-01-02 | 358 | DIBBS |
5331-00-800-6351 | 2016-05-137 | 300 | Canada |
5331-00-800-6351 | 2012-11-331 | 1000 | DIBBS |
5331-00-800-6351 | 2012-11-328 | 228 | DIBBS |
5331-00-800-6351 | 2012-03-90 | 412 | DIBBS |
MS29561131 | 2011-09-250 | 20 | PE |
MS29561-131 | 2011-08-223 | 2 | Hong Kong |
Cross Reference | NSN 5331-00-800-6351
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5331-00-800-6351
Related Products | NSN 5331-00-800-6351
Technical Data | NSN 5331-00-800-6351
Characteristic | Specifications |
---|---|
MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR |

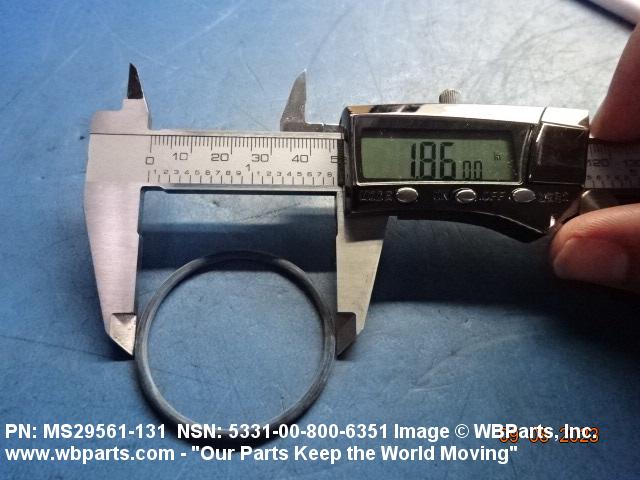

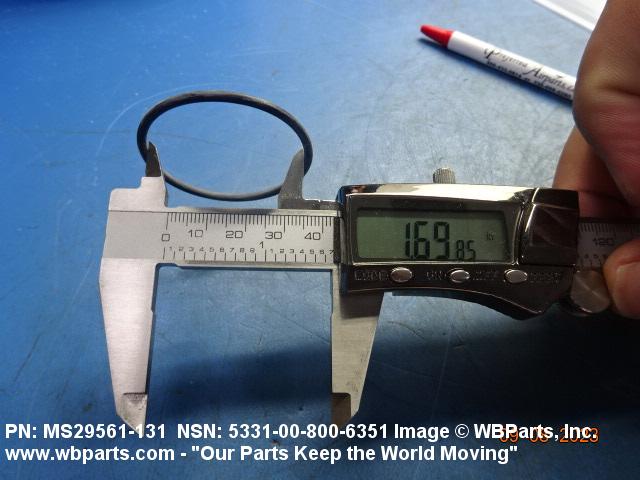

CENTER HOLE DIAMETER | 1.659 INCHES MINIMUM AND 1.689 INCHES MAXIMUM |

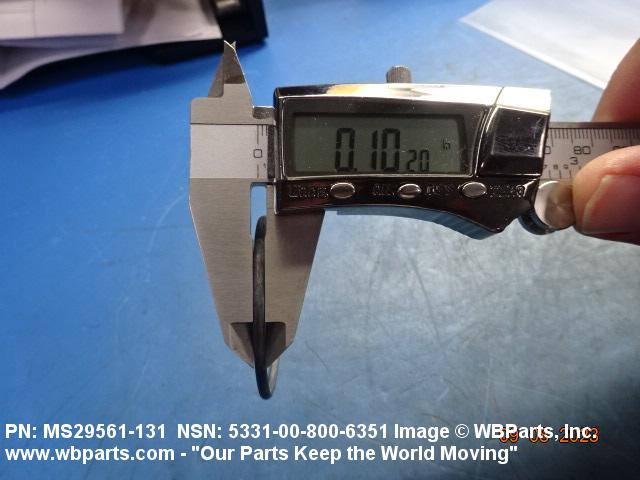

CROSS-SECTIONAL HEIGHT | 0.100 INCHES MINIMUM AND 0.106 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5331-00-800-6351
Category | Code | Description |
---|---|---|
Shelf-Life Code: | Y | 180 months |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
Less than car load rating | J | 100.2 |
Less than truck load rating | J | 100.2 |
Water commodity Code | 713 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
