NSN 5331-00-166-8390 MS9388030, MS9388-030, M83248/1-030
Product Details | O-RING
5331-00-166-8390 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: MS9388030, MS9388-030, M83248/1-030, M832481030, M832481030ES, M83248-1-030ES, A1005816, AMS7276, AS3209030, AS3209-030, ST1050030, ST1050-030, X11904, MILR83248, DD-4729 ITEM NO 16, DD4729ITEMNO16, J221P030, 645001RR030, 700030355C, 700-030-355C, 8003003, 0802912390, 080-29123-90 , 2030V074775, 2-030V0747-75, 2030V116475, 2-030V1164-75, 2030V122675, 2-030V1226-75, 2030V74775, 2-030V747-75, 25283A, 5331-00-166-8390, 00-166-8390, 5331001668390, 001668390
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 NOV 1971 | 00-166-8390 | 47946 ( O-RING ) |
Drawings & Photos | NSN 5331-00-166-8390
Demand History | NSN 5331-00-166-8390
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILR83248 | 2025-05-132 | 2 | United States |
| 5331-00-166-8390 | 2025-02-55 | 6 | US |
| 5331-00-166-8390 | 2024-10-296 | 10 | IN |
| 5331-00-166-8390 | 2024-10-296 | 10 | IN |
| M832481030 | 2024-07-192 | 30 | Japan |
| 5331-00-166-8390 | 2024-02-57 | 12 | UK |
| J221P030 | 2024-01-04 | 2590 | DIBBS |
| M83248/1-030 | 2024-01-04 | 2590 | DIBBS |
| AMS7276 | 2022-04-115 | 140 | United States |
| J221P030 | 2021-12-353 | 4056 | DIBBS |
| M83248/1-030 | 2021-12-353 | 4056 | DIBBS |
| 5331-00-166-8390 | 2021-08-222 | 1 | United States |
| MS9388030 | 2021-04-98 | 4 | United States |
| AS3209030 | 2020-09-265 | 60 | CN |
| AS3209030 | 2020-06-157 | 48 | us |
| 5331-00-166-8390 | 2020-03-66 | 10 | Taiwan |
| 5331-00-166-8390 | 2019-06-177 | 1 | United States |
| 5331-00-166-8390 | 2018-10-289 | 12000 | DIBBS |
| 5331-00-166-8390 | 2018-08-220 | 1939 | DIBBS |
| 5331-00-166-8390 | 2018-07-191 | 8462 | DIBBS |
| 5331-00-166-8390 | 2018-07-183 | 80 | us |
| 5331-00-166-8390 | 2018-01-07 | 11000 | DIBBS |
| 5331-00-166-8390 | 2017-09-267 | 1939 | DIBBS |
| J221P030 | 2017-05-136 | 1 | Canada |
| 5331-00-166-8390 | 2017-04-106 | 6049 | DIBBS |
| MILR83248 | 2017-03-83 | 3 | United States |
| 5331-00-166-8390 | 2016-09-256 | 5509 | DIBBS |
| 5331-00-166-8390 | 2016-04-108 | 10008 | DIBBS |
| MILR83248 | 2016-03-81 | 18 | United States |
| MILR83248 | 2016-03-81 | 9 | United States |
| J221P030 | 2016-03-61 | 35 | US |
| 5331-00-166-8390 | 2015-12-348 | 6 | US |
| M832481030 | 2015-11-315 | 30 | United States |
| M832481030 | 2015-11-315 | 30 | United States |
| AMS7276 | 2015-07-182 | 10 | UK |
| M83248/1-030 | 2015-03-85 | 13 | US |
| M83248/1-030 | 2015-03-69 | 500 | US |
| J221P030 | 2014-09-272 | 50 | US |
| 5331-00-166-8390 | 2014-09-254 | 18 | MANUAL |
| MS9388030 | 2014-09-247 | 50 | UK |
| AMS7276 | 2014-08-234 | 60 | Seychelles |
| AS3209-030 | 2013-08-229 | 1298 | Canada |
| MS9388-030 | 2013-08-229 | 3422 | Canada |
| MS9388030 | 2012-11-334 | 1 | PH |
| 5331-00-166-8390 | 2012-10-300 | 3817 | DIBBS |
| MS9388030 | 2012-10-282 | 2 | PH |
| AMS7276 | 2012-03-76 | 30 | TW |
| MILR83248 | 2011-10-304 | 301 | KR |
| MS9388030 | 2011-06-175 | 24 | US |
| MILR83248 | 2011-01-05 | 1 | CA |
| 5331-00-166-8390 | 2010-11-306 | 1250 | United States |
| 645001RR030 | 2009-06-170 | 20 | DE |
| MILR83248 | 2007-08-221 | 4 | US |
Cross Reference | NSN 5331-00-166-8390
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 080-29123-90 | 94697 | MOOG, INC. |
| 2-030V0747-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-030V1164-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-030V1226-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-030V747-75 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 25283A | 89875 | DEFENSE LOGISTICS AGENCY DIRECTORATE OF MEDICAL MATERIEL |
| 645001RR030 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 700-030-355C | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 8003003 | F2133 | DENISON HYDRAULICS FRANCE SAS |
| 8003003 | FAQB2 | PARKER HANNIFIN FRANCE SAS |
| A1005816 | 50306 | FEDERAL EQUIPMENT AND MANUFACTURING CO., INC. |
| AMS7276 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS3209-030 | 26647 | WENCOR GROUP, LLC |
| DD-4729 ITEM NO 16 | 53424 | CUNICO CORPORATION |
| J221P030 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| M83248-1-030ES | H2313 | ERIKS B.V. |
| M83248/1-030 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M83248/1-030 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILR83248 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS9388-030 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| ST1050-030 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| X11904 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5331-00-166-8390
Related Products | NSN 5331-00-166-8390
Technical Data | NSN 5331-00-166-8390
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROCARBON CLASS FPM |

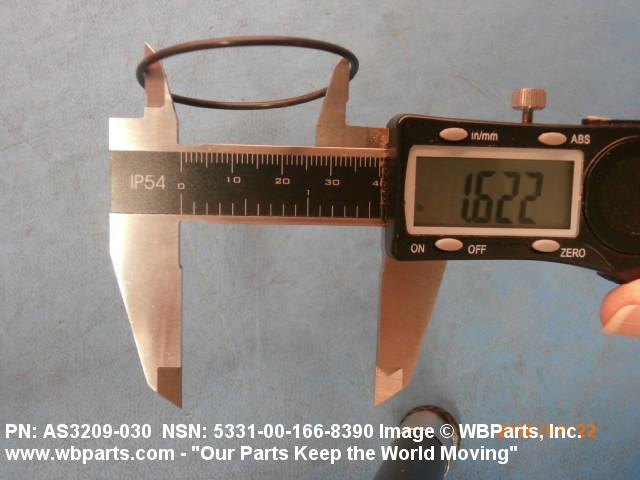

| CENTER HOLE DIAMETER | 1.601 INCHES MINIMUM AND 1.627 INCHES MAXIMUM |

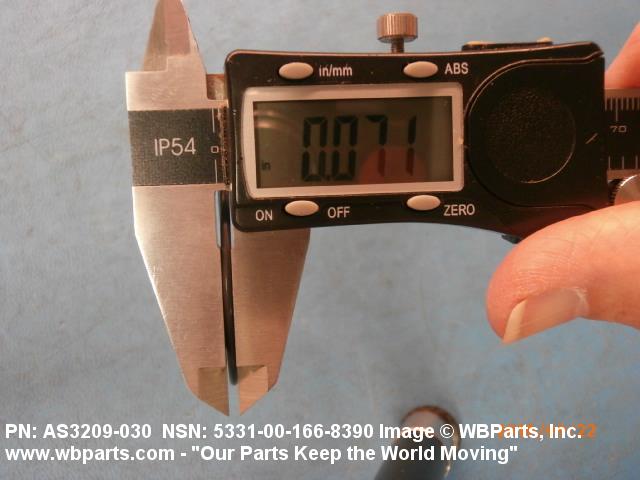

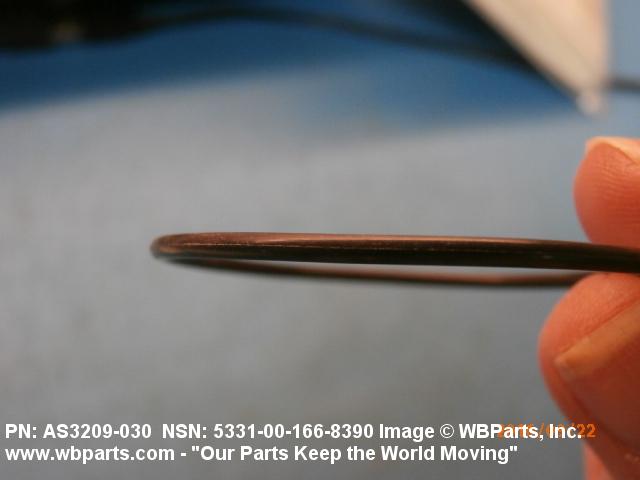

| CROSS-SECTIONAL HEIGHT | 0.067 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5331-00-166-8390
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5331-00-166-8390
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BJ | AH-64 Airframe |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
