NSN 5331-00-165-1944 MS83485/1-225, MS834851225, MS9388225
Product Details | O-RING
5331-00-165-1944 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: MS83485/1-225, MS834851225, MS9388225, MS9388-225, M83248/1-225, M832481225, M83485/1-225, M834851225, N-999-64GH-A-001 REV A ITEM 45, N99964GHA001REVAITEM45, AMS7276, ARP568-225MILR2 5897, ARP568225MILR25897, AS3209225, AS3209-225, H604BN001 FIND, H604BN001FIND, SSBN598516189, SSBN598-516-189, STD3000E30, MILR83248, PC503701, PC50370-1, PC503704, PC50370-4, PD4949711, PD49497-11, PRP56822597575, PRP568-225-975-75, J221P225, 700-225-433, 772-8329001 ITEM NO 1 , 7728329001ITEMNO1, 8/1-214, 81214, 845-4687577 ITEM 59, 8454687577ITEM59, 878225, 903732C1, 9800318X1PIECE, 9800-318X1PIECE, 0407050050, 040-705-0050, 2012V88475, 2-012-V884-75, 209-4642086 ITE, 2094642086ITE, 21089 FIND 40, 21089FIND40, 2-225 77-545-75, 2-225 V747-75, 2-225 V884-75, 22257754575, 2225V074775, 2-225V0747-75, 2225V116475, 2-225V1164-75, 2225V122675, 2-225V1226-75, 2225V74775, 2-225V747-75, 2225V77670, 2-225V776-70, 2225V88475, 225, 4680225, 4680-225, 51543, 516-1893292 PIE, 5161893292PIE, 5489360-20 , 556640804011, 556-6408040-11, 5682257, 568225-7, 655A770 PIECE 2, 655A770PIECE2, 6640219 FIND 20, 6640219-20 , 6640219FIND20, 700225355C, 700-225-355C, 5331-00-165-1944, 00-165-1944, 5331001651944, 001651944, 548936020, 700225433, 664021920
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 NOV 1971 | 00-165-1944 | 47946 ( O-RING ) |

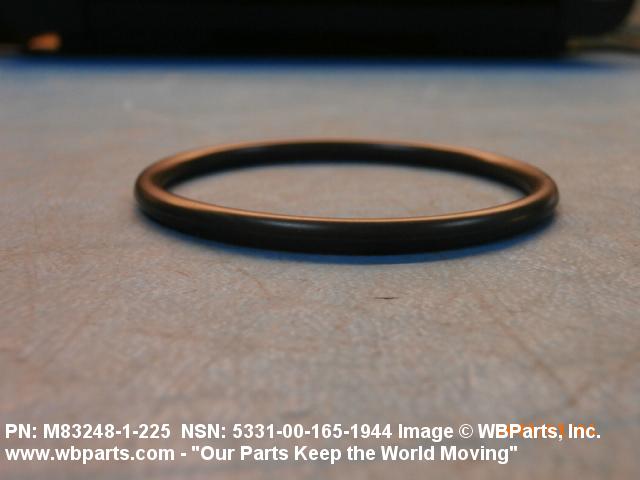

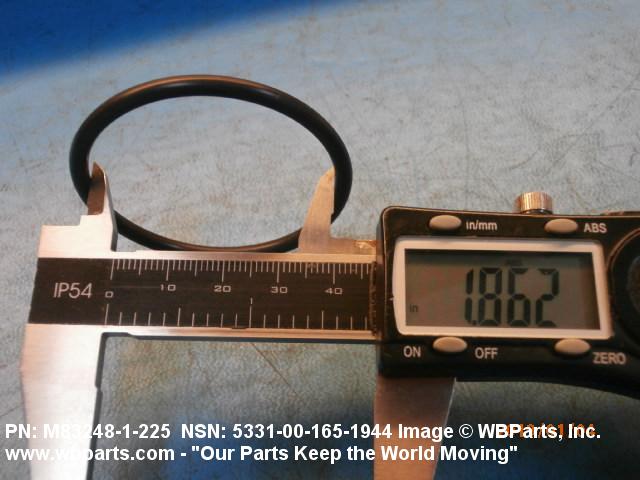

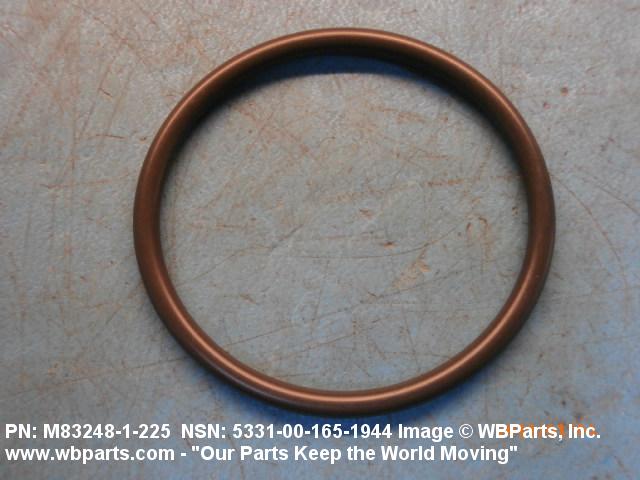

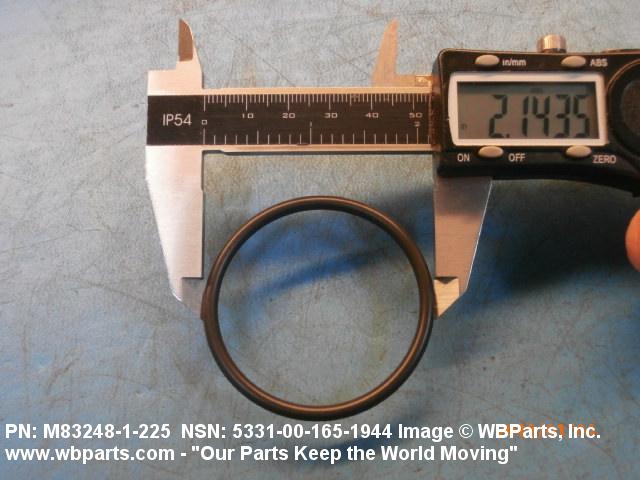

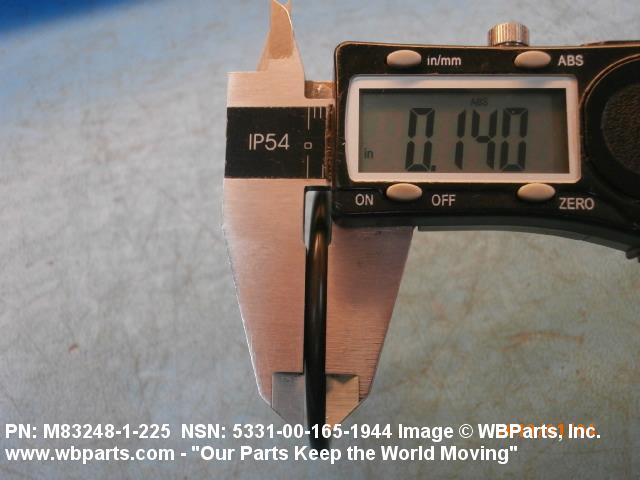

Drawings & Photos | NSN 5331-00-165-1944
Demand History | NSN 5331-00-165-1944
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILR83248 | 2025-05-132 | 2 | United States |
| 5331-00-165-1944 | 2025-01-30 | 1021 | DIBBS |
| 5331-00-165-1944 | 2024-10-281 | 17000 | DIBBS |
| 5331-00-165-1944 | 2024-09-270 | 17000 | DIBBS |
| 5331-00-165-1944 | 2024-06-165 | 5 | ES |
| 5331-00-165-1944 | 2024-03-65 | 17000 | DIBBS |
| 5331-00-165-1944 | 2023-02-46 | 50 | UK |
| 5331-00-165-1944 | 2023-01-26 | 5483 | DIBBS |
| AMS7276 | 2022-04-115 | 140 | United States |
| 5331-00-165-1944 | 2022-04-115 | 10842 | DIBBS |
| 5331-00-165-1944 | 2022-04-104 | 10842 | DIBBS |
| 5331-00-165-1944 | 2021-09-246 | 6 | KE |
| 5331-00-165-1944 | 2021-09-245 | 1283 | DIBBS |
| 5331-00-165-1944 | 2021-07-210 | 1429 | DIBBS |
| 5331-00-165-1944 | 2021-07-182 | 1429 | DIBBS |
| 5331-00-165-1944 | 2020-06-171 | 1 | DIBBS-RFPs |
| 903732C1 | 2020-01-16 | 8 | DE |
| 5331-00-165-1944 | 2018-12-360 | 150 | United States |
| MILR83248 | 2017-03-83 | 3 | United States |
| 5331-00-165-1944 | 2016-04-116 | 6852 | DIBBS |
| 5331-00-165-1944 | 2016-04-108 | 6852 | DIBBS |
| MILR83248 | 2016-03-81 | 18 | United States |
| MILR83248 | 2016-03-81 | 9 | United States |
| AMS7276 | 2015-07-182 | 10 | UK |
| AMS7276 | 2014-08-234 | 60 | Seychelles |
| J221P225 | 2013-10-287 | 1 | United States |
| M83248/1-225 | 2013-08-229 | 160 | Canada |
| MS9388-225 | 2013-08-229 | 80 | Canada |
| 5331-00-165-1944 | 2012-08-235 | 1 | US |
| M832481225 | 2012-04-104 | 4 | US |
| AMS7276 | 2012-03-76 | 30 | TW |
| MILR83248 | 2011-10-304 | 301 | KR |
| J221P225 | 2011-03-88 | 8 | NL |
| M834851225 | 2011-03-76 | 1 | us |
| MILR83248 | 2011-01-05 | 1 | CA |
| 5331-00-165-1944 | 2010-06-168 | 40 | US |
| MILR83248 | 2007-08-221 | 4 | US |
Cross Reference | NSN 5331-00-165-1944
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 040-705-0050 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 2-012-V884-75 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 2-225 77-545-75 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 2-225 V747-75 | C0308 | O-RING DIVISION EUROPE |
| 2-225 V884-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-225 V884-75 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 2-225V0747-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-225V1164-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-225V1226-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-225V747-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-225V776-70 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 209-4642086 ITE | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 21089 FIND 40 | 78062 | DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE |
| 225 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 4680-225 | 90166 | EATON AEROSPACE LLC DBA USE CAGE CODE 62983 FOR |
| 51543 | 93835 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC SYSTEMS DIVISION |
| 516-1893292 PIE | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 5489360-20 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 556-6408040-11 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 568225-7 | 81400 | HASKEL INTERNATIONAL, INC. DBA BUTECH PRESSURE SYSTEMS |
| 655A770 PIECE 2 | 03502 | GENERAL ELECTRIC CO NAVAL AND DRIVE TURBINE SYSTEMS DEPT |
| 6640219 FIND 20 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 6640219-20 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 700-225-355C | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 700-225-433 | 10941 | CARVER PUMP COMPANY INC |
| 772-8329001 ITEM NO 1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 8/1-214 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 845-4687577 ITEM 59 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 878225 | 90166 | EATON AEROSPACE LLC DBA USE CAGE CODE 62983 FOR |
| 903732C1 | 55820 | HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS |
| 9800-318X1PIECE | 96169 | ELECTRIC BOAT CORPORATION |
| AMS7276 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| ARP568-225MILR2 5897 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AS3209-225 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| H604BN001 FIND | 98523 | JERED LLC DBA PAR |
| J221P225 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| M83248/1-225 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83485/1-225 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MILR83248 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS83485/1-225 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS9388-225 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| N-999-64GH-A-001 REV A ITEM 45 | 10941 | CARVER PUMP COMPANY INC |
| PC50370-1 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| PC50370-4 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| PD49497-11 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| PRP568-225-975-75 | 77308 | PARCO INC. |
| SSBN598-516-189 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| STD3000E30 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5331-00-165-1944
Related Products | NSN 5331-00-165-1944
Technical Data | NSN 5331-00-165-1944
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROCARBON CLASS FPM |
| CENTER HOLE DIAMETER | 1.841 INCHES MINIMUM AND 1.877 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 0.135 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILR83248 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83248/1-225 |
Restrictions/Controls & Freight Information | NSN 5331-00-165-1944
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5331-00-165-1944
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
