NSN 5331-00-103-1579 AS3209120, AS3209-120, ST3001120

Product Details | O-RING

5331-00-103-1579 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.

Part Alternates: AS3209120, AS3209-120, ST3001120, ST3001-120, Z00.N7423510008TBM, Z00N7423510008TBM, 10338601 , 946.91.27.765, 9469127765, 5331-00-103-1579, 00-103-1579, 5331001031579, 001031579

Hardware and Abrasives | O-Ring

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	05 MAY 1972	00-103-1579	47946 ( O-RING )

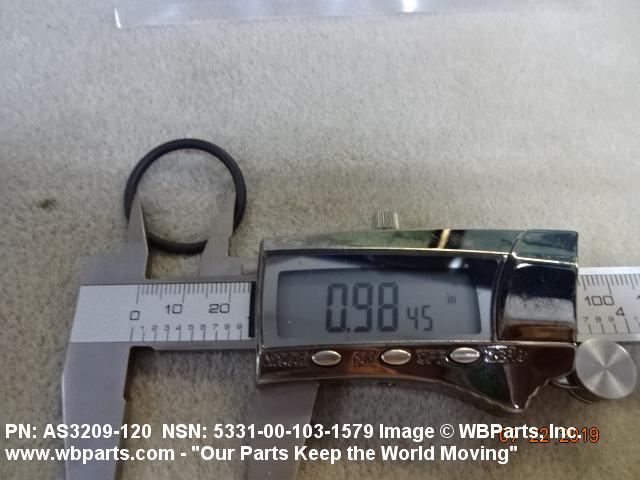

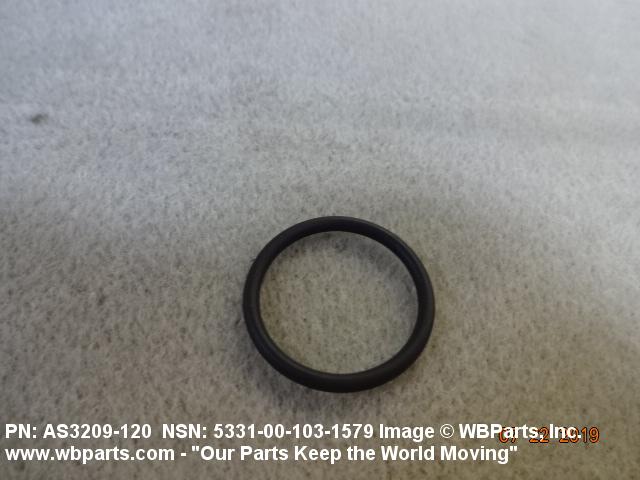

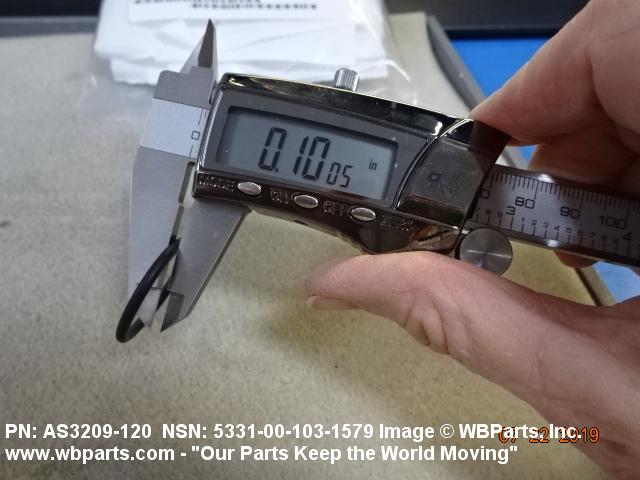

Drawings & Photos | NSN 5331-00-103-1579

Part Number	Request Date	QTY	Origin
AS3209120	2024-08-234	20	Japan
AS3209120	2021-10-300	20	United States
5331-00-103-1579	2020-11-321	1	DIBBS-RFPs
5331-00-103-1579	2020-10-280	100	MANUAL
AS3209-120	2020-10-280	100	SA
5331-00-103-1579	2020-09-274	3847	DIBBS
AS3209120	2020-08-230	2	Malaysia
AS3209120	2019-05-141	8	US
AS3209-120	2019-05-136	20	United States
AS3209120	2018-05-124	1	AF
5331-00-103-1579	2017-08-216	147	Malaysia
5331-00-103-1579	2017-07-200	147	Malaysia
AS3209120	2016-10-305	2	United States
AS3209120	2016-07-193	8	US
5331-00-103-1579	2015-10-300	164	Malaysia
AS3209-120	2015-03-76	10	TH
AS3209120	2014-06-167	20	United States
AS3209120	2014-04-99	30	US
AS3209120	2013-09-270	20	LK
AS3209120	2013-07-197	25	LK
AS3209120	2013-07-186	50	Hong Kong
AS3209120	2013-07-186	500	Hong Kong
AS3209120	2013-04-92	1	BR
AS3209-120	2012-05-145	10	MM
AS3209120	2011-09-266	1	United States
AS3209120	2011-09-249	6	us
AS3209-120	2010-11-322	400
AS3209-120	2010-11-322	100
AS3209120	2010-05-134	30	Italy
5331-00-103-1579	2010-04-92	3928	DIBBS
AS3209120	2009-09-264	1	Thailand
AS3209120	2009-05-148	4	Seychelles
5331-00-103-1579	2009-05-131	1054	DIBBS
AS3209120	2008-12-339	50	us

Cross Reference | NSN 5331-00-103-1579

Part Number	Cage Code	Manufacturer
946.91.27.765	S4080	PILATUS AIRCRAFT LTD
AS3209-120	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
ST3001-120	00198	PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP.
Z00.N7423510008TBM	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5331-00-103-1579

Compare

Related Products | NSN 5331-00-103-1579

5331-00-103-1655, 5331-00-103-1675, 5331-00-103-1711, 5331-00-103-1747, 5331-00-103-1750

Technical Data | NSN 5331-00-103-1579

Characteristic	Specifications
MATERIAL	RUBBER FLUOROCARBON CLASS FPM
CENTER HOLE DIAMETER	0.977 INCHES MINIMUM AND 0.997 INCHES MAXIMUM
CROSS-SECTIONAL HEIGHT	0.100 INCHES MINIMUM AND 0.106 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5331-00-103-1579

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	596	unknown
Originating Activity Code	KE	Naval ICP Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5331-00-103-1579

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
