NSN 5330-01-502-6992 ABA24913K1D101A, ABA24913KT1D101, CE01167D469A
Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-01-502-6992 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: ABA24913K1D101A, ABA24913KT1D101, CE01167D469A, FPG2910R1, 5330-01-502-6992, 01-502-6992, 5330015026992, 015026992
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 NOV 2002 | 01-502-6992 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
Drawings & Photos | NSN 5330-01-502-6992
Demand History | NSN 5330-01-502-6992
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CE01167D469A | 2022-12-360 | 4 | DIBBS |
| FPG2910R1 | 2022-12-360 | 4 | DIBBS |
| CE01167D469A | 2022-05-150 | 2 | DIBBS |
| FPG2910R1 | 2022-05-150 | 2 | DIBBS |
| CE01167D469A | 2021-12-349 | 1 | DIBBS |
| FPG2910R1 | 2021-12-349 | 1 | DIBBS |
| CE01167D469A | 2021-06-165 | 1 | DIBBS |
| FPG2910R1 | 2021-06-165 | 1 | DIBBS |
| CE01167D469A | 2020-11-314 | 1 | DIBBS |
| FPG2910R1 | 2020-11-314 | 1 | DIBBS |
| CE01167D469A | 2020-10-301 | 1 | DIBBS |
| FPG2910R1 | 2020-10-301 | 1 | DIBBS |
| CE01167D469A | 2020-08-217 | 2 | DIBBS |
| FPG2910R1 | 2020-08-217 | 2 | DIBBS |
| CE01167D469A | 2020-01-05 | 1 | DIBBS |
| FPG2910R1 | 2020-01-05 | 1 | DIBBS |
| CE01167D469A | 2019-12-344 | 1 | DIBBS |
| FPG2910R1 | 2019-12-344 | 1 | DIBBS |
| CE01167D469A | 2019-08-228 | 1 | DIBBS |
| FPG2910R1 | 2019-08-228 | 1 | DIBBS |
| CE01167D469A | 2019-08-220 | 1 | DIBBS |
| FPG2910R1 | 2019-08-220 | 1 | DIBBS |
| CE01167D469A | 2019-02-45 | 1 | DIBBS |
| FPG2910R1 | 2019-02-45 | 1 | DIBBS |
| CE01167D469A | 2019-02-35 | 5 | DIBBS |
| FPG2910R1 | 2019-02-35 | 5 | DIBBS |
| 5330-01-502-6992 | 2018-11-331 | 1 | DIBBS |
| 5330-01-502-6992 | 2014-07-203 | 3 | DIBBS |
| 5330-01-502-6992 | 2014-05-131 | 8 | DIBBS |
| 5330-01-502-6992 | 2014-04-91 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-502-6992
Related Products | NSN 5330-01-502-6992
Technical Data | NSN 5330-01-502-6992
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROSILICONE CLASS FQ CORE PLASTIC POLYETHYLENE TEREPHTHALATE JACKET |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-25988, CL 1, TY 2, GR 50 MIL SPEC SINGLE MATERIAL RESPONSE CORE DACRON 400 MFR REF SINGLE MATERIAL RESPONSE JACKET |
| HARDNESS RATING | 50.0 SHORE DUROMETER A NOMINAL OVERALL |
| CONSTRUCTION | ONE-PIECE |

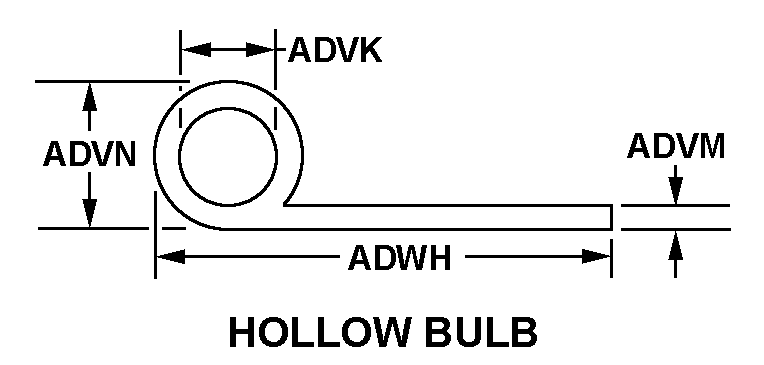

| CROSS-SECTIONAL SHAPE STYLE | H1 HOLLOW BULB |
| CROSS SECTION INSIDE DIAMETER | 0.501 INCHES NOMINAL |
| CROSS-SECTIONAL THICKNESS | 0.062 INCHES NOMINAL |
| CROSS-SECTIONAL HEIGHT | 0.625 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 1.290 INCHES NOMINAL |
| STYLE DESIGNATOR | A1 CIRCULAR |
| APERTURE DIAMETER | 13.250 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | HELICOPTER, CARGO-TRANSPORT CHINOOK, CH-47; 1520-01-088-3669 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | RING, P-SEAL FLUOROSILICONE |
| MANUFACTURERS CODE | 18350 |
| DESIGN CONTROL REFERENCE | ABA24913KT1D101 |
Restrictions/Controls & Freight Information | NSN 5330-01-502-6992
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-502-6992
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
