NSN 5330-01-499-9896 N0300 8-260, N03008260, 8-260 N300-90
Product Details | PREFORMED PACKING BACK-UP RING
5330-01-499-9896 A circular shaped item with an aperture manufactured to predetermined dimensions, constructed with a rectangular cross section that may be solid, with joint, or in a helical form that facilitates spiral wrap installation. It prevents seal extrusion under pressure and is designed to fit on the down-pressure side of a gland groove with a PACKING, PREFORMED or O-RING.
Part Alternates: N0300 8-260, N03008260, 8-260 N300-90, 8260N30090, 8-260-N300-90 , 924915, 5330-01-499-9896, 01-499-9896, 5330014999896, 014999896
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 AUG 2002 | 01-499-9896 | 66949 ( BACK-UP RING, PREFORMED PACKING ) |
Drawings & Photos | NSN 5330-01-499-9896
Demand History | NSN 5330-01-499-9896
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-499-9896 | 2014-06-162 | 20 | US |
| 5330-01-499-9896 | 2011-01-18 | 11 | DIBBS |
Cross Reference | NSN 5330-01-499-9896
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8-260 N300-90 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 8-260-N300-90 | 34228 | L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO |
| 924915 | 34228 | L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO |
| N0300 8-260 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-499-9896
Related Products | NSN 5330-01-499-9896
Technical Data | NSN 5330-01-499-9896
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR |
| MATERIAL DOCUMENT AND CLASSIFICATION | (92697)NO300-90 BUNA-N MFR REF SINGLE MATERIAL RESPONSE |
| HARDNESS RATING | 90.0 SHORE DUROMETER A NOMINAL |
| TEMP RATING | -40.0 DEG FAHRENHEIT AND 180.0 DEG FAHRENHEIT |

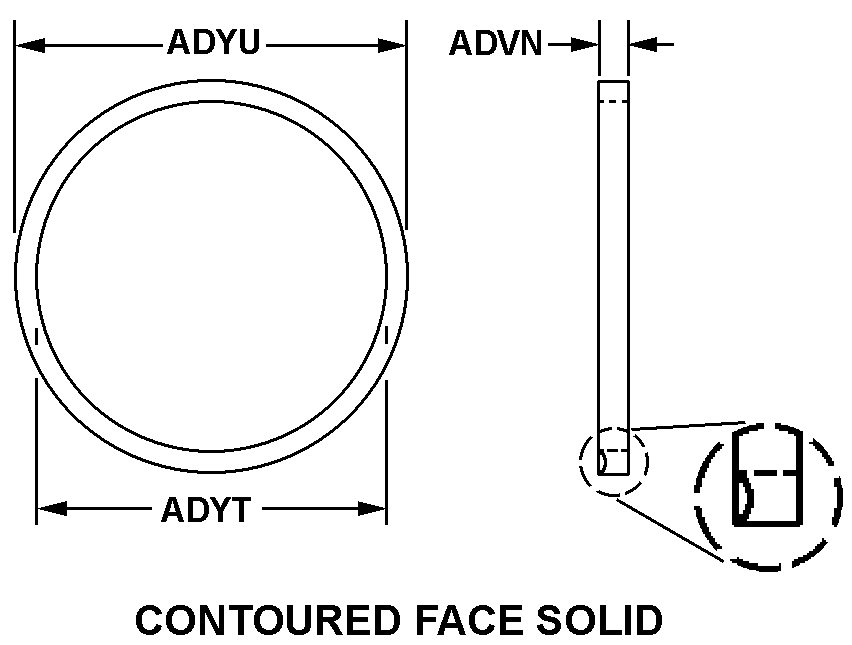

| CROSS-SECTIONAL SHAPE STYLE | 3 CONTOURED FACE SOLID |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PARBAK |
| CROSS-SECTIONAL HEIGHT | 0.050 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 6.518 INCHES NOMINAL |
| PERIPHERAL DIAMETER | 6.754 INCHES NOMINAL |
| MANUFACTURERS CODE | 02697 |
| DESIGN CONTROL REFERENCE | N0300 8-260 |
Restrictions/Controls & Freight Information | NSN 5330-01-499-9896
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-499-9896
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
