NSN 5330-01-499-4469 17P8D9333510, 17P8D9333-510, 01-499-4469
Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-01-499-4469 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: 17P8D9333510, 17P8D9333-510, 5330-01-499-4469, 01-499-4469, 5330014994469, 014994469
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JUL 2002 | 01-499-4469 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
Drawings & Photos | NSN 5330-01-499-4469
Cross Reference | NSN 5330-01-499-4469
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17P8D9333-510 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-499-4469
Technical Data | NSN 5330-01-499-4469
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | TWO-PIECE |

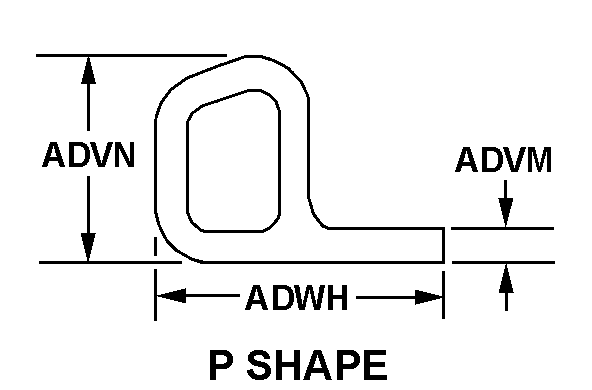

| CROSS-SECTIONAL SHAPE STYLE | H102 P SHAPE |
| CROSS-SECTIONAL THICKNESS | 0.070 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 0.950 INCHES MINIMUM AND 1.010 INCHES MAXIMUM |
| CROSS-SECTIONAL WIDTH | 1.350 INCHES MINIMUM AND 1.410 INCHES MAXIMUM |
| SPECIAL FEATURES | SEAL IS MADE FROM DASH NUMBER: -14, SEAL (MOLDED ELASTOMERIC FIRE WALL;SPEC DMS 1854 TYPE 4 REINFORCED WITHC ERAMIC CLOTH, 1-PLY; -50, COVER (CLOTH ARAMID KNITTED MESH TYPE HT-2002 FROMMOHAWK FABRIC CO, INC); AND -136, CORE (SILICONE RUBBER, SOFT MFG METHOD OPTIONAL; SPEC DMS1980GRADE 1 |
| III END ITEM IDENTIFICATION | C-17A AIRCRAFT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SEALS,FAN DUCT - FIXED DUCT |
Restrictions/Controls & Freight Information | NSN 5330-01-499-4469
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-01-499-4469
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
