NSN 5330-01-468-1429 S9413128, S9413-128, 01-468-1429
Product Details | PREFORMED PACKING
5330-01-468-1429 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.
Part Alternates: S9413128, S9413-128, 5330-01-468-1429, 01-468-1429, 5330014681429, 014681429
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 SEP 1999 | 01-468-1429 | 04521 ( PACKING, PREFORMED ) |
Drawings & Photos | NSN 5330-01-468-1429
Cross Reference | NSN 5330-01-468-1429
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S9413-128 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-468-1429
Technical Data | NSN 5330-01-468-1429
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROCARBON CLASS FPM OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-83248, TYPE 1, CLASS 1 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |

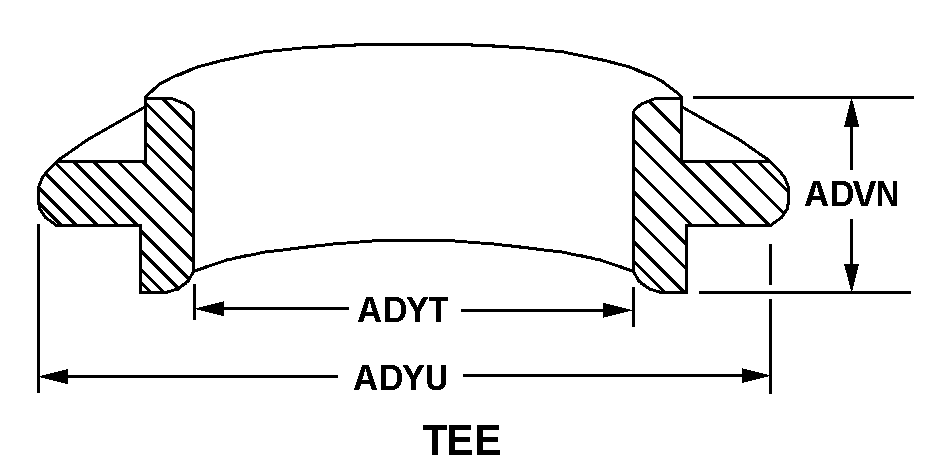

| CROSS-SECTIONAL SHAPE STYLE | D152 TEE |
| CROSS-SECTIONAL HEIGHT | 0.100 INCHES MINIMUM AND 0.106 INCHES MAXIMUM |
| CENTER HOLE DIAMETER | 1.475 INCHES MINIMUM AND 1.499 INCHES MAXIMUM |
| PERIPHERAL DIAMETER | 1.575 INCHES MINIMUM AND 1.605 INCHES MAXIMUM |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PACKING, PREFORM-FLUOROCARBON |
Restrictions/Controls & Freight Information | NSN 5330-01-468-1429
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-01-468-1429
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
