NSN 5330-01-467-2437 LS602251NONASBESTOS, LS60225-1NON-ASBESTOS, 01-467-2437

Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL

5330-01-467-2437 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.

Part Alternates: LS602251NONASBESTOS, LS60225-1NON-ASBESTOS, 5330-01-467-2437, 01-467-2437, 5330014672437, 014672437

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	20 AUG 1999	01-467-2437	32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION )

Drawings & Photos | NSN 5330-01-467-2437

Part Number	Request Date	QTY	Origin
5330-01-467-2437	2020-02-57	179	DIBBS
5330-01-467-2437	2020-02-36	179	DIBBS
5330-01-467-2437	2020-01-05	1399	DIBBS
5330-01-467-2437	2017-08-234	1000	DIBBS
5330-01-467-2437	2017-06-157	248	DIBBS
5330-01-467-2437	2017-06-152	1100	DIBBS
5330-01-467-2437	2017-05-132	248	DIBBS
5330-01-467-2437	2017-05-124	248	DIBBS
5330-01-467-2437	2016-07-190	1450	DIBBS
5330-01-467-2437	2016-06-181	1450	DIBBS
5330-01-467-2437	2016-06-167	563	DIBBS
5330-01-467-2437	2010-12-348	2500	DIBBS
5330-01-467-2437	2010-11-323	3401	DIBBS
5330-01-467-2437	2010-11-312	3400	DIBBS
5330-01-467-2437	2009-12-352	2000	DIBBS
5330-01-467-2437	2009-10-293	1600	DIBBS

Cross Reference | NSN 5330-01-467-2437

Part Number	Cage Code	Manufacturer
LS60225-1NON-ASBESTOS	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-467-2437

Compare

Related Products | NSN 5330-01-467-2437

5330-01-467-2442, 5330-01-467-2498, 5330-01-467-2508, 5330-01-467-2549, 5330-01-467-2569

Technical Data | NSN 5330-01-467-2437

Characteristic	Specifications
MATERIAL	SILICONE CORE
CONSTRUCTION	ONE-PIECE

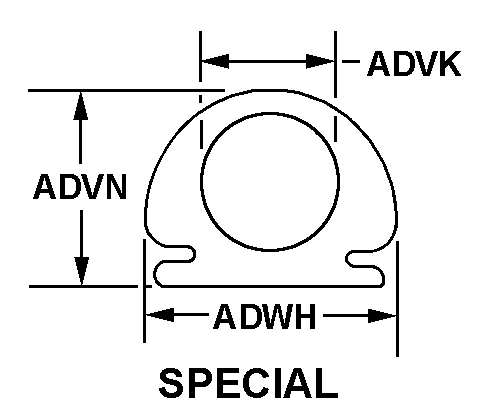

CROSS-SECTIONAL SHAPE STYLE	H25 SPECIAL
CROSS SECTION INSIDE DIAMETER	0.223 INCHES NOMINAL
CROSS-SECTIONAL HEIGHT	0.468 INCHES MINIMUM AND 0.594 INCHES MAXIMUM
CROSS-SECTIONAL WIDTH	0.390 INCHES MINIMUM AND 0.472 INCHES MAXIMUM
FABRICATION METHOD	SOLID
ATTACHMENT METHOD	CEMENTED
FEATURES PROVIDED	FABRIC REINFORCED
SPECIAL FEATURES	SEAL SHALL CONFORM TO FIREPROOF REQUIREMENTS (2000 DEGREES F FOR 15 MINUTES) OF LOCKHEED-GEORGIA CO. DOCUMENT DSM90001 (POWER PLANT MATERIAL)
ENVIRONMENTAL ATTRIBUTE CODE	ASBESTOS ALTERNATIVE PRODUCTS

Restrictions/Controls & Freight Information | NSN 5330-01-467-2437

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Environmental Attribute Code:	JG
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194090	WASHERS/SEALS
Less than car load rating
Less than truck load rating	S	60.0
Water commodity Code	596	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-01-467-2437

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 FT : Foot

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 FT : Foot
