NSN 5330-01-450-9178 7331FTE9874780, 7331FTE987-4780, 01-450-9178
Product Details | PACKING ASSEMBLY
5330-01-450-9178 Any combination of items manufactured from PACKING MATERIAL to predetermined dimensions, or any combination of nonmetallic molded or formed shapes (other than solid rubber or synthetic rubber rings having a square or rectangular cross section) specifically designed and manufactured for use as a seal. The assembly may include metal lantern rings, metal separators, and/or end or adapter rings.
Part Alternates: 7331FTE9874780, 7331FTE987-4780, 5330-01-450-9178, 01-450-9178, 5330014509178, 014509178
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 NOV 1997 | 01-450-9178 | 07961 ( PACKING ASSEMBLY ) |

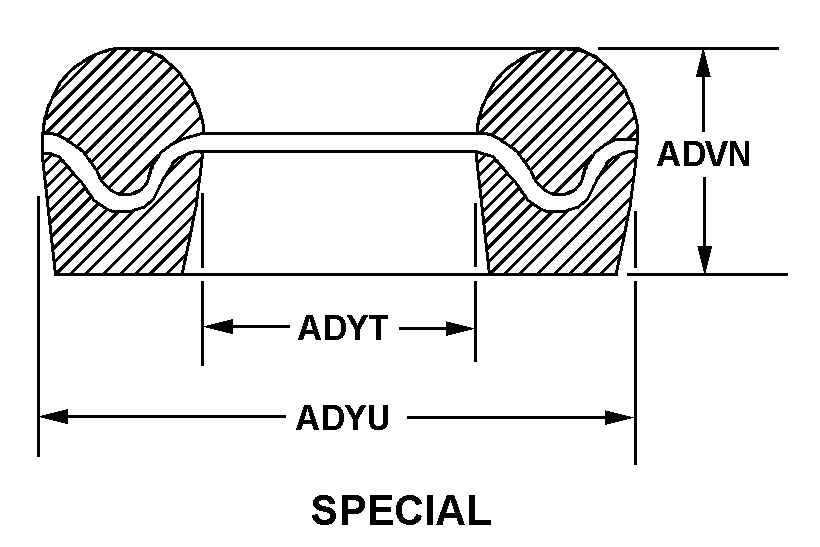

Drawings & Photos | NSN 5330-01-450-9178
Demand History | NSN 5330-01-450-9178
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7331FTE9874780 | 2021-02-42 | 6 | CO |
| 5330-01-450-9178 | 2020-01-13 | 3 | ZA |
| 5330-01-450-9178 | 2017-11-317 | 4 | Argentina |
| 7331FTE9874780 | 2013-10-301 | 50 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-450-9178
Technical Data | NSN 5330-01-450-9178
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | D119 SPECIAL OVERALL |
| CROSS-SECTIONAL HEIGHT | 0.416 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 2.223 INCHES NOMINAL |
| PERIPHERAL DIAMETER | 2.643 INCHES NOMINAL |
| INTERMEDIATE RING QUANTITY | 1 |
| OUTSIDE DIAMETER | 2.643 INCHES NOMINAL |
| INSIDE DIAMETER | 2.248 INCHES NOMINAL |
| HEIGHT | 0.416 INCHES NOMINAL |
| SPECIAL FEATURES | INTERMEDIATE RING IS 987 NITRIL CMP, 65 DURO SHORE A;INTERNALLY MOLDED IN BACK UP RING IS NON RADIUSED, REVERSE SCARF ANGLE WEAR RESISTANT NYLON PER GTS-0020 |
Restrictions/Controls & Freight Information | NSN 5330-01-450-9178
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
