NSN 5330-01-391-3661 HP 1127, HP1127, 12364324
Product Details | PACKING RETAINER
5330-01-391-3661 An item designed to fit over a packing gland by mating with a surface of a second part which together will retain into a narrow groove or confined space the PACKING, PREFORMED or O-RING, or an item designed to fit over a rod or shaft, to mate with a stuffing box to confine PACKING MATERIAL. It may function as a static or dynamic seal retainer with the packing located on, around, or in the centerline direction of the rod or shaft axis. It may have holes or joints for mounting, be threaded or unthreaded. See also PACKING NUT and PACKING NUT, STUFFING TUBE.
Part Alternates: HP 1127, HP1127, 12364324, 5330-01-391-3661, 01-391-3661, 5330013913661, 013913661
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUN 1994 | 01-391-3661 | 13706 ( RETAINER, PACKING ) |
Drawings & Photos | NSN 5330-01-391-3661
Demand History | NSN 5330-01-391-3661
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| VA650043 | 2020-05-28 | 59 | DIBBS |
| VA650043 | 2020-05-20 | 59 | DIBBS |
| VA650043 | 2019-05-09 | 33 | DIBBS |
| VA650043 | 2019-05-01 | 33 | DIBBS |
| VA650043 | 2019-01-16 | 20 | DIBBS |
| VA650043 | 2019-01-08 | 20 | DIBBS |
| 5330-01-391-3661 | 2018-03-12 | 14 | DIBBS |
| 5330-01-391-3661 | 2018-01-31 | 32 | DIBBS |
| 5330-01-391-3661 | 2017-12-28 | 14 | DIBBS |
| 12364324 | 2017-09-19 | 1 | |
| 5330-01-391-3661 | 2017-09-19 | 1 | DIBBS-KIT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-391-3661
Related Products | NSN 5330-01-391-3661
Technical Data | NSN 5330-01-391-3661
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROCARBON CLASS FPM OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D2000, M3HK910A1-10B37B38EF31EO78Z1Z2Z3Z 4 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 85.0 SHORE DUROMETER A MINIMUM AND 95.0 SHORE DUROMETER A MAXIMUM OVERALL |

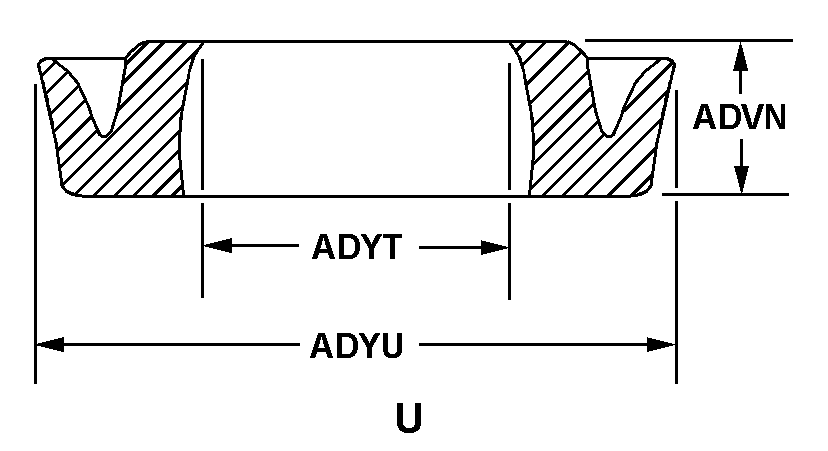

| CROSS-SECTIONAL SHAPE STYLE | D109 U |
| CROSS-SECTIONAL HEIGHT | 0.175 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| CENTER HOLE DIAMETER | 2.180 INCHES MINIMUM AND 2.220 INCHES MAXIMUM |
| PERIPHERAL DIAMETER | 2.518 INCHES MINIMUM AND 2.568 INCHES MAXIMUM |
| MANUFACTURERS CODE | 19207 |
| MFR SOURCE CONTROLLING REFERENCE | 12364324 |
Restrictions/Controls & Freight Information | NSN 5330-01-391-3661
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-391-3661
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
