NSN 5330-01-367-2753 DAA3150D409007, DAA3150D409-007, 01-367-2753
Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-01-367-2753 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: DAA3150D409007, DAA3150D409-007, 5330-01-367-2753, 01-367-2753, 5330013672753, 013672753
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 NOV 1992 | 01-367-2753 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
Drawings & Photos | NSN 5330-01-367-2753
Cross Reference | NSN 5330-01-367-2753
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DAA3150D409-007 | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-367-2753
Technical Data | NSN 5330-01-367-2753
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | SOLID |

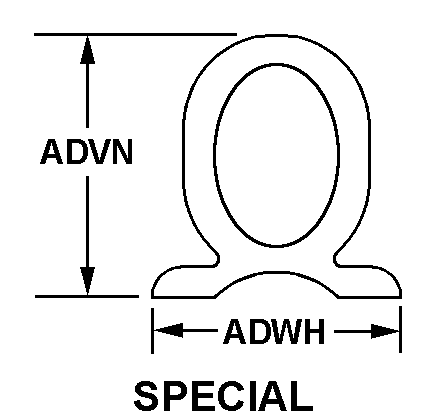

| CROSS-SECTIONAL SHAPE STYLE | H108 SPECIAL |
| SPECIAL FEATURES | THIS SEAL IS 20.46 INCHES LONG |
| III END ITEM IDENTIFICATION | PACER SPECIAL |
Restrictions/Controls & Freight Information | NSN 5330-01-367-2753
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-01-367-2753
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BQ | TN:B-2 TSSP, NORTHROP GRUMMAN |
| Price Validation | P | The current standard price is the initial negotiated provisioned price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F59 | Northrop Grumman IS ACS 2501 Liberty Parkway, Suite 101 Midwest, OK 73110-2885 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
