NSN 5330-01-324-1056 M24716TY2CLB4.0 0NPS150PSICRPL, M24716TY2CLB4.000NPS 150PSI, M24716TY2CLB4000NPS150PSI
Product Details | SPIRAL WOUND GASKET

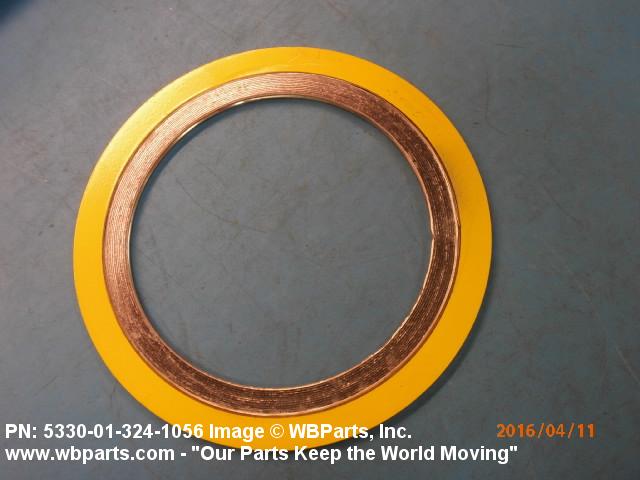

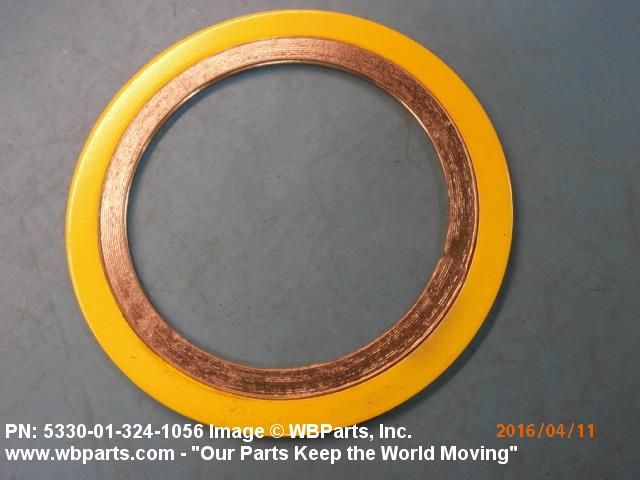

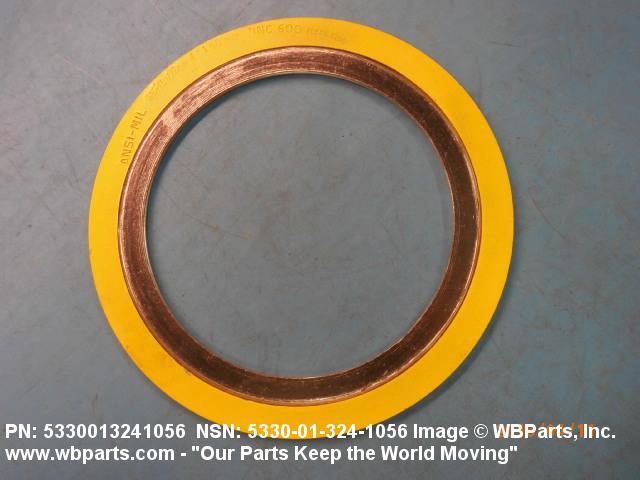

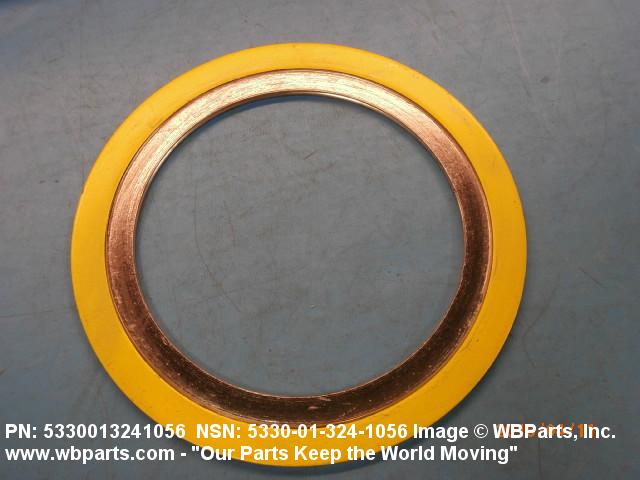

5330-01-324-1056 A circular or moderately noncircular shaped item with an aperture. It is constructed of spring-like metal strips, preformed into a vee shape, laminated with a soft filler. It is designed to seal between two nondeforming surfaces. It may have an inner and/or outer, solid or spiral wound compression ring(s).
Part Alternates: M24716TY2CLB4.0 0NPS150PSICRPL, M24716TY2CLB4.000NPS 150PSI, M24716TY2CLB4000NPS150PSI, M24716TY2CLB400NPS150PSICRPL, B5651, D5640 ITEM 11, D5640ITEM11, MIL-G-21032TYCL BSER150 5IN, MILG21032TYCLBSER1505IN, MILG24716, MIL-G-24716, MILG24716TYCLB4IPS150PSI, MIL-G-24716TYCLB4IPS150PSI, 522C011511, 522C011-511, 5330-01-324-1056, 01-324-1056, 5330013241056, 013241056
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 AUG 1990 | 01-324-1056 | 37840 ( GASKET, SPIRAL WOUND ) |

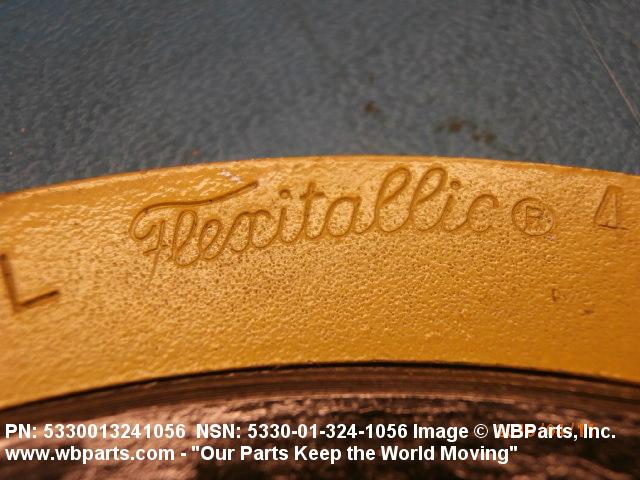

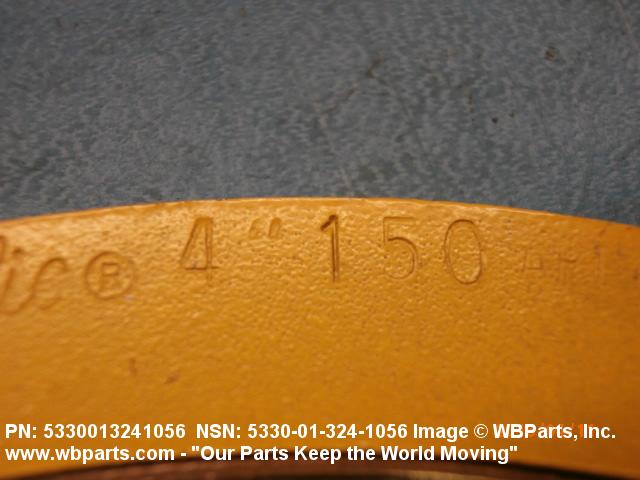

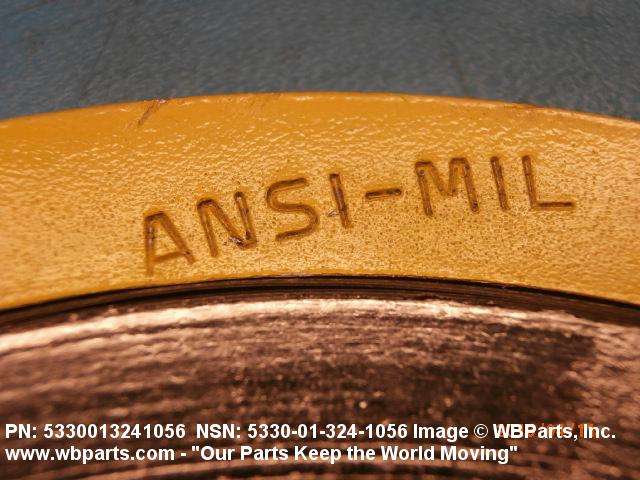

Drawings & Photos | NSN 5330-01-324-1056
Demand History | NSN 5330-01-324-1056
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-324-1056 | 2016-03-70 | 6 | United States |
| 5330-01-324-1056 | 2009-09-267 | 500 | DIBBS |
| MILG24716 | 2009-05-128 | 1 | India |
| 5330-01-324-1056 | 2008-12-338 | 700 | DIBBS |
| 5330-01-324-1056 | 2008-11-317 | 357 | DIBBS |
| 5330-01-324-1056 | 2008-10-282 | 153 | DIBBS |
| 5330-01-324-1056 | 2008-10-281 | 85 | DIBBS |
Cross Reference | NSN 5330-01-324-1056
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 522C011-511 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| B5651 | 17062 | P J VALVES INC |
| D5640 ITEM 11 | 17062 | P J VALVES INC |
| M24716TY2CLB4.0 0NPS150PSICRPL | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| M24716TY2CLB4.000NPS 150PSI | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-G-21032TYCL BSER150 5IN | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MIL-G-24716 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-G-24716TYCLB4IPS150PSI | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-324-1056
Technical Data | NSN 5330-01-324-1056

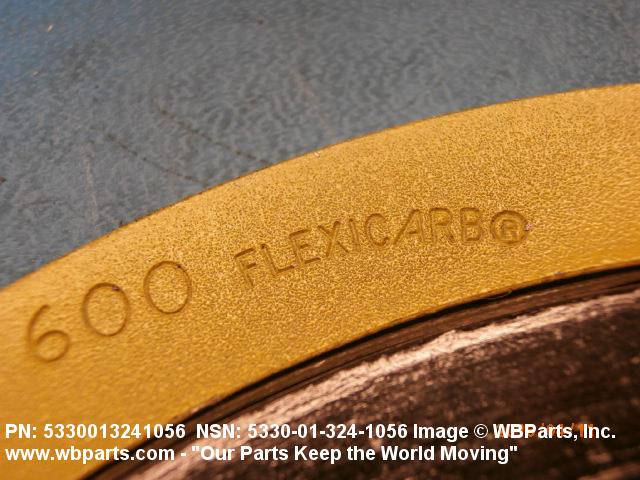

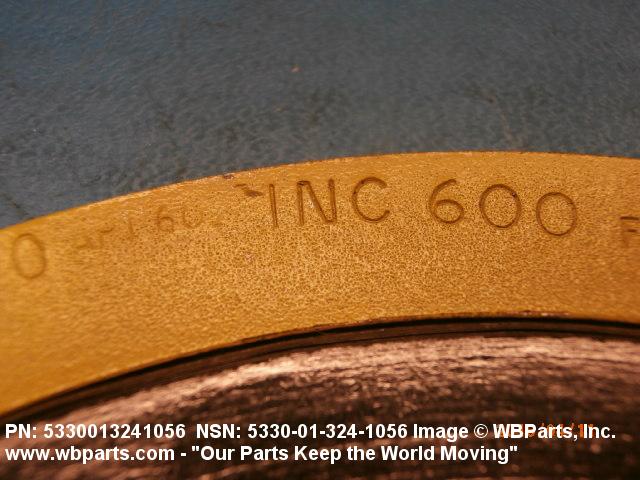

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OUTER RING GRAPHITE AND NICKEL ALLOY 600 SPIRAL WOUND FILLER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-24503,TY 1,CL 2 MIL SPEC 1ST MATERIAL RESPONSE AND ASTM B168 ASSN STD 2ND MATERIAL RESPONSE SPIRAL WOUND FILLER |
| CROSS-SECTIONAL SHAPE STYLE | F47 METAL WINDING W/SOFT FILLER AND OUTER RING |

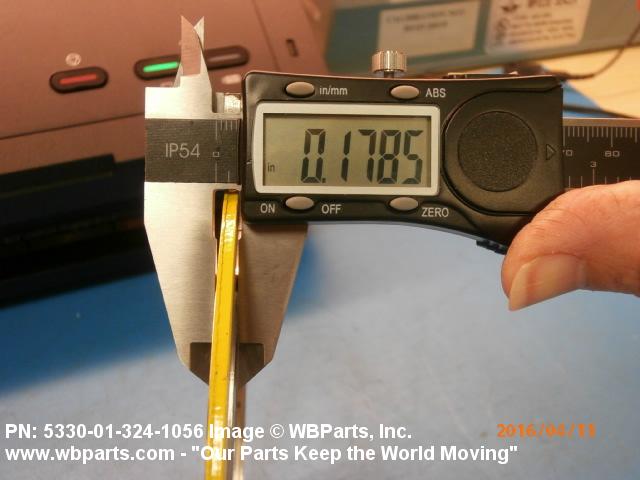

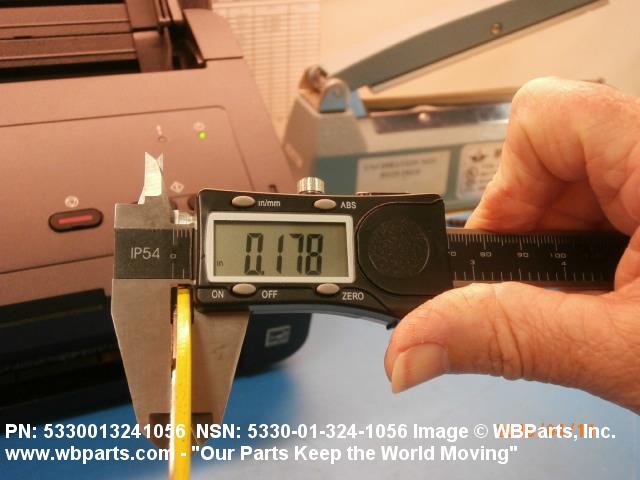

| CROSS-SECTIONAL THICKNESS | 0.170 INCHES MINIMUM AND 0.180 INCHES MAXIMUM |

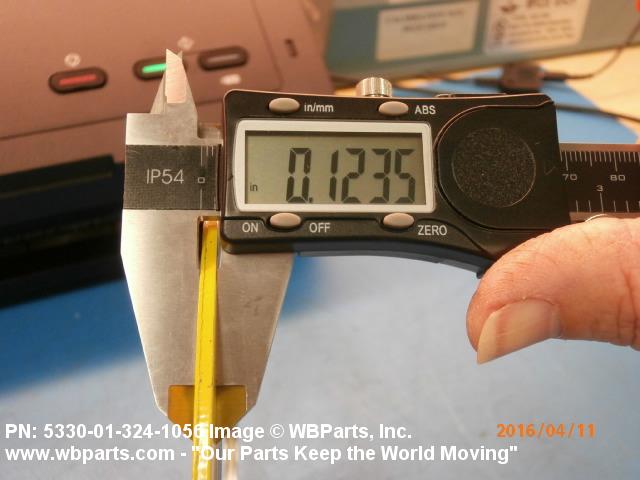

| GAGE RING THICKNESS | 0.117 INCHES MINIMUM AND 0.131 INCHES MAXIMUM |
| STYLE DESIGNATOR | B8 CIRCULAR |

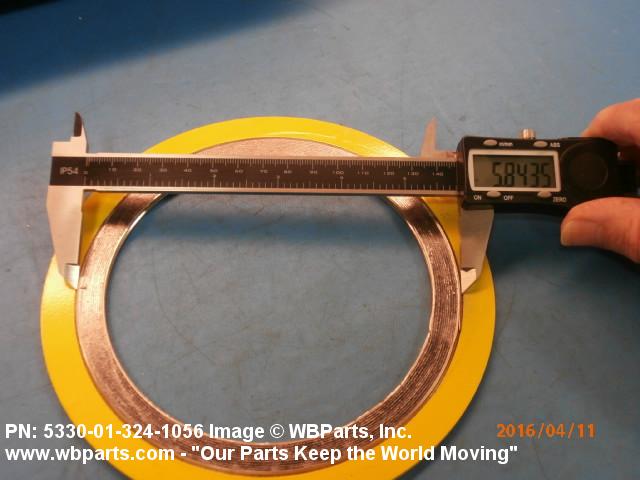

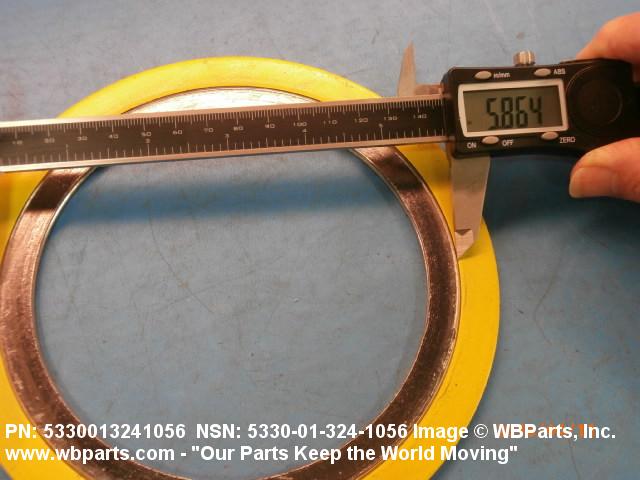

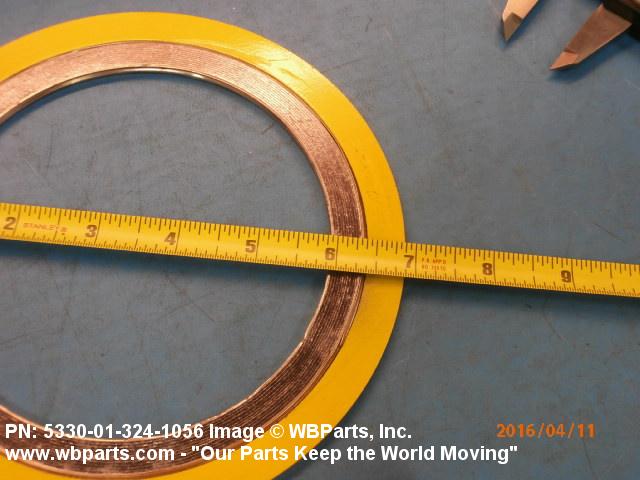

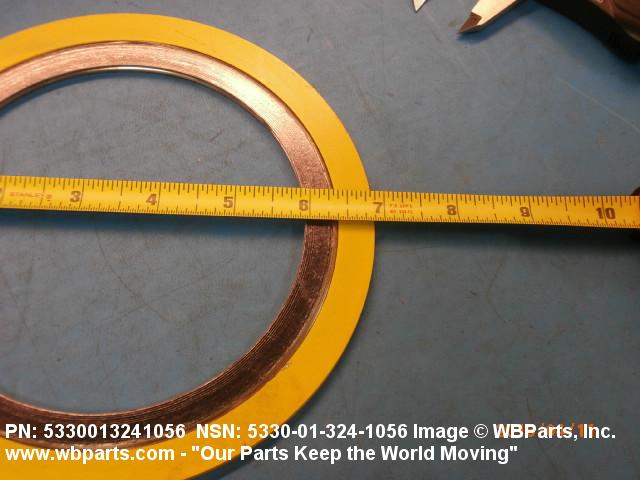

| OUTSIDE DIAMETER | 5.844 INCHES NOMINAL |

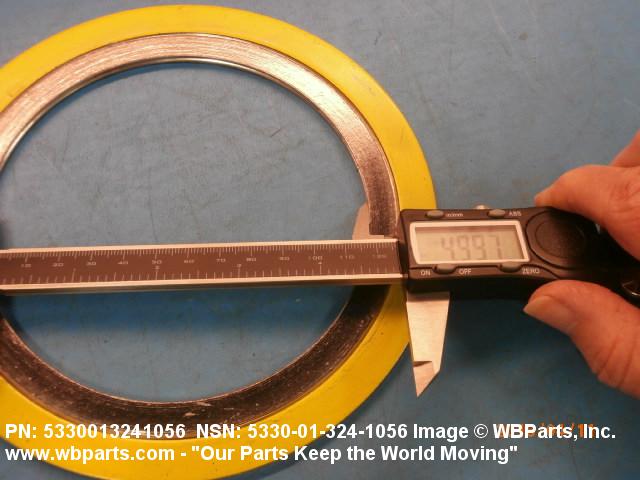

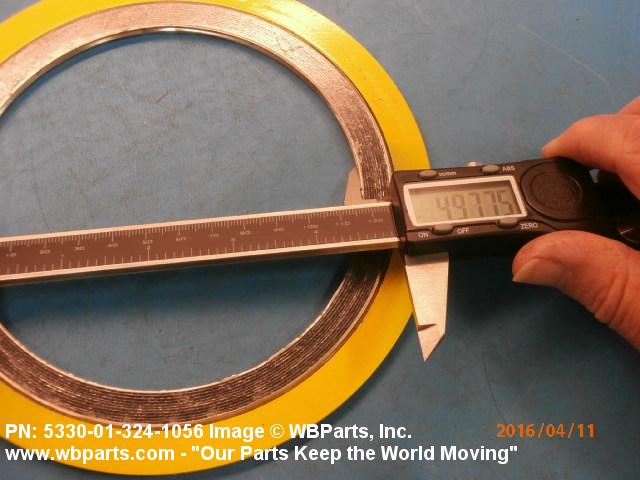

| APERTURE DIAMETER | 5.000 INCHES NOMINAL |

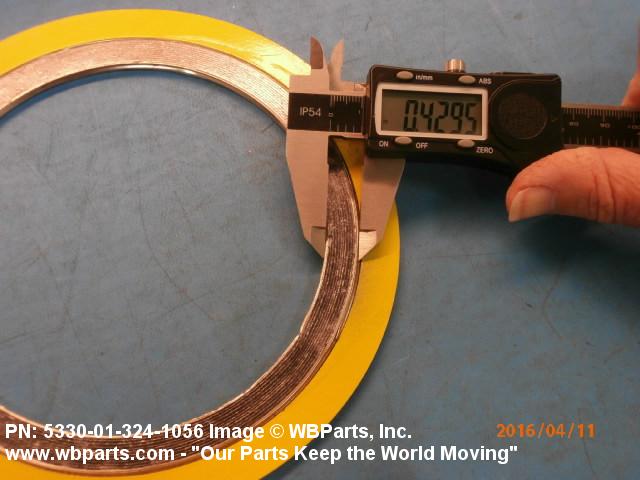

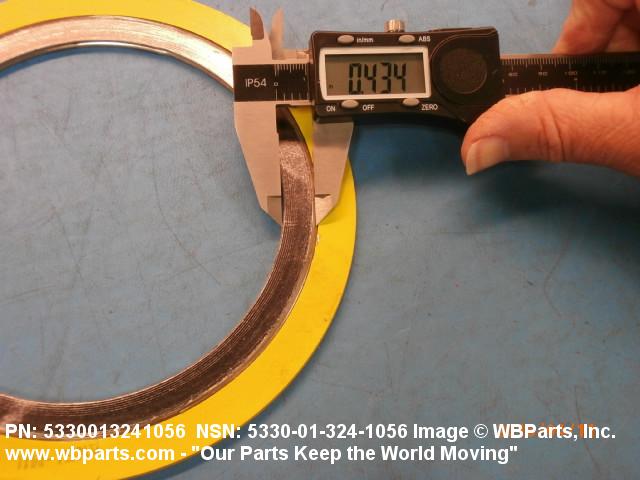

| BEARING SURFACE WIDTH | 0.422 INCHES NOMINAL |
