NSN 5330-01-324-0143 M24716T0100BG, M24716T0100BH, M24716T0100BI
Product Details | SPIRAL WOUND GASKET

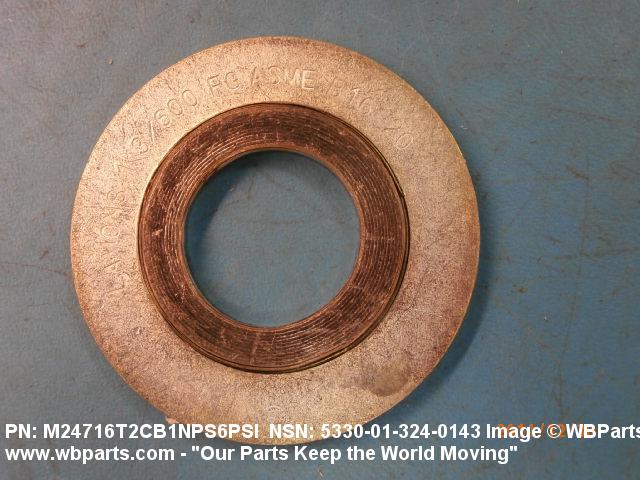

5330-01-324-0143 A circular or moderately noncircular shaped item with an aperture. It is constructed of spring-like metal strips, preformed into a vee shape, laminated with a soft filler. It is designed to seal between two nondeforming surfaces. It may have an inner and/or outer, solid or spiral wound compression ring(s).
Part Alternates: M24716T0100BG, M24716T0100BH, M24716T0100BI, M24716T2CB1.000NPS600PSI, M24716T2CB1000NPS600PSI, M24716TY2CLB1.0 0NPS600PSICRPL, M24716TY2CLB100NPS600PSICRPL, MILG24716, MIL-G-24716, MILG24716TY2CLB 1IPS600PSI, MILG24716TY2CLB1IPS600PSI, 010030814SCM, 522C011526, 522C011-526, 54300054, 54-30-0054, 54305034, 54-30-5034, 877471502F4, 87747-1502F4, 5330-01-324-0143, 01-324-0143, 5330013240143, 013240143
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 AUG 1990 | 01-324-0143 | 37840 ( GASKET, SPIRAL WOUND ) |

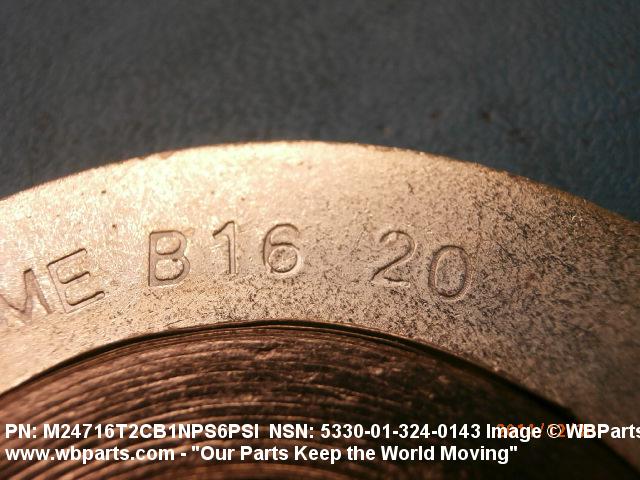

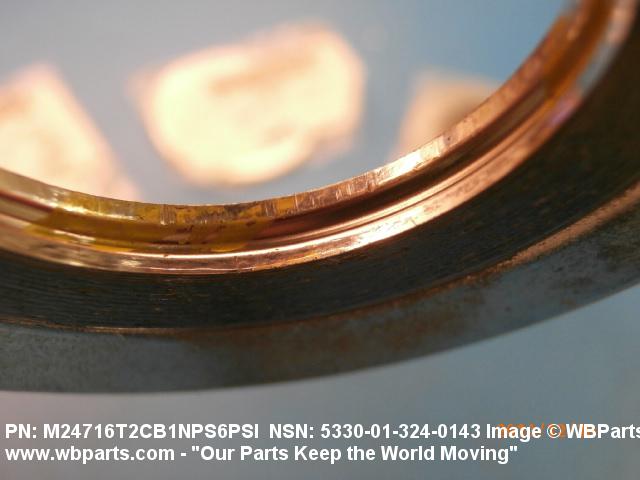

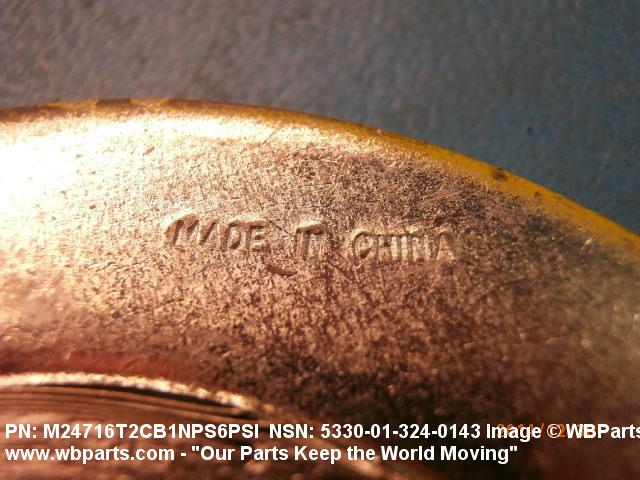

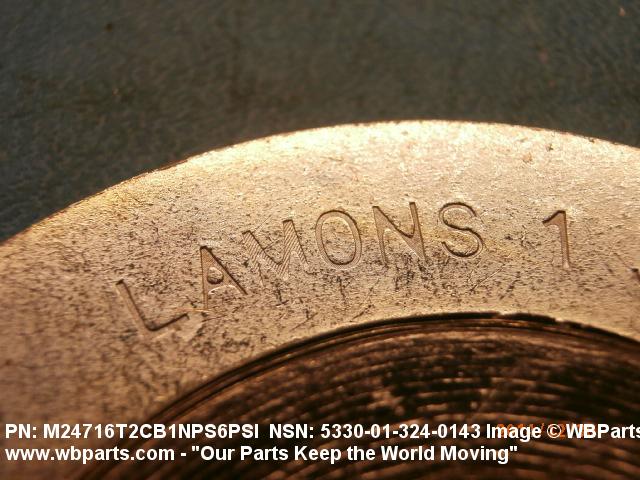

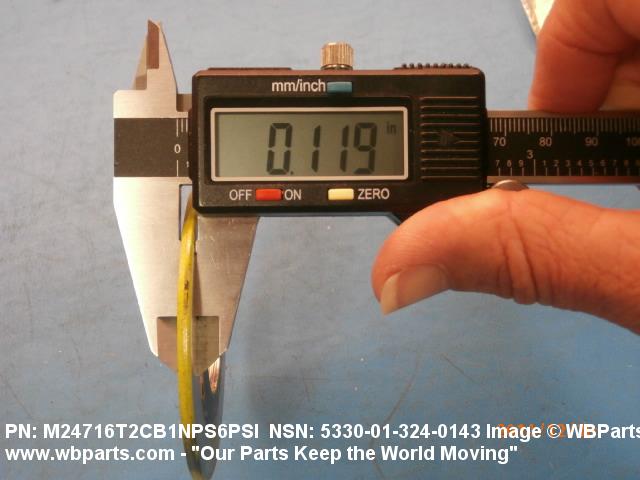

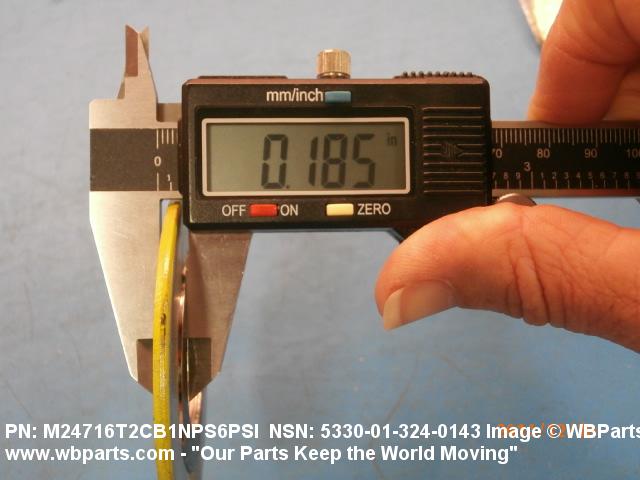

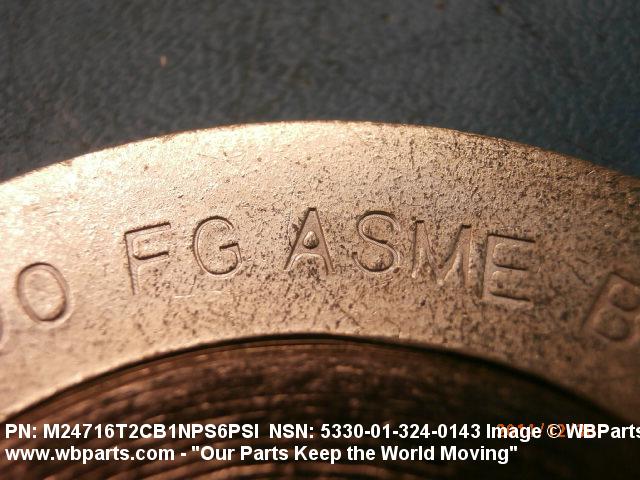

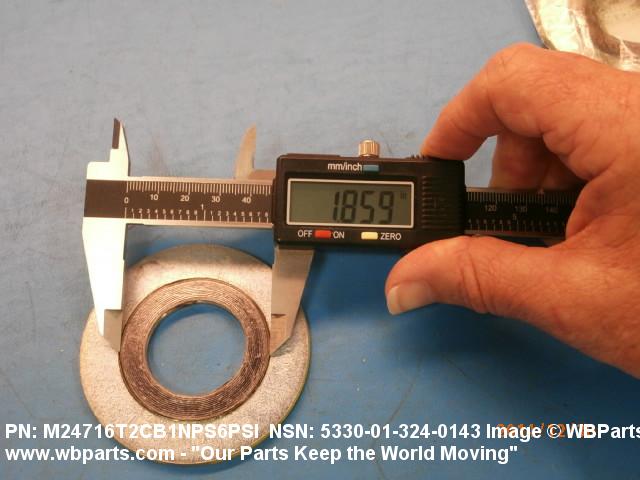

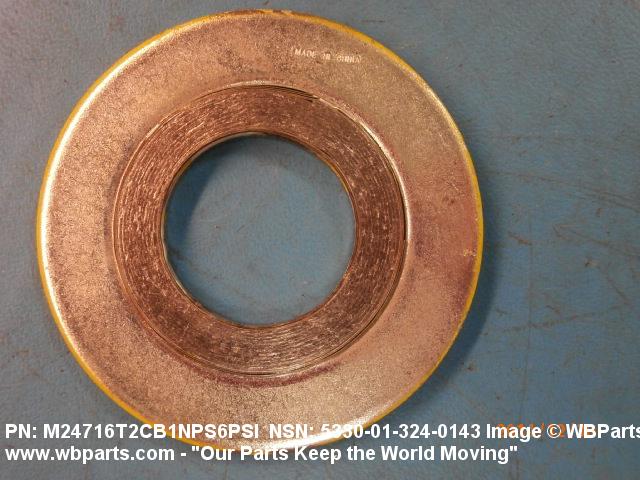

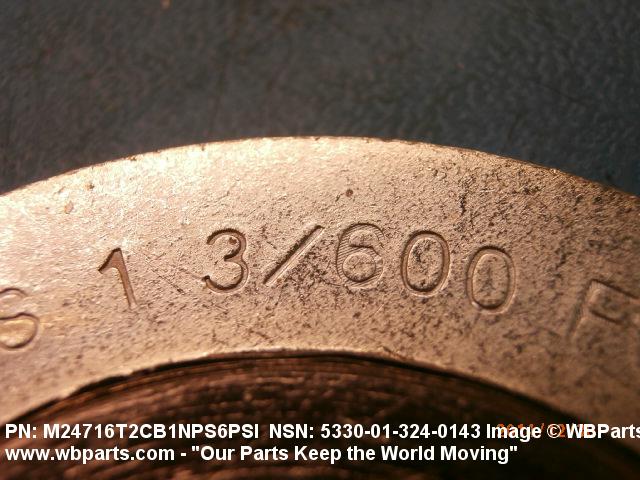

Drawings & Photos | NSN 5330-01-324-0143
Demand History | NSN 5330-01-324-0143
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-324-0143 | 2022-10-279 | 778 | DIBBS |
| 5330-01-324-0143 | 2022-05-139 | 643 | DIBBS |
| 5330-01-324-0143 | 2015-04-91 | 1400 | DIBBS |
| 013240143 | 2014-12-350 | 4 | United States |
| 5330-01-324-0143 | 2014-12-350 | 4 | United States |
| 5330-01-324-0143 | 2013-11-307 | 1626 | DIBBS |
| 5330-01-324-0143 | 2012-07-213 | 1200 | DIBBS |
| MILG24716 | 2009-05-128 | 1 | India |
| 5330-01-324-0143 | 2008-05-148 | 856 | DIBBS |
| 5330-01-324-0143 | 2008-02-32 | 1075 | DIBBS |
| 5330-01-324-0143 | 2008-01-31 | 1077 | DIBBS |
| 5330-01-324-0143 | 2008-01-15 | 784 | DIBBS |
Cross Reference | NSN 5330-01-324-0143
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 010030814SCM | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 522C011-526 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 54-30-0054 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 54-30-5034 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 87747-1502F4 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| M24716T0100BG | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24716T0100BH | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24716T0100BI | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24716T2CB1.000NPS600PSI | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24716TY2CLB1.0 0NPS600PSICRPL | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MIL-G-24716 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILG24716TY2CLB 1IPS600PSI | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-324-0143
Related Products | NSN 5330-01-324-0143
Technical Data | NSN 5330-01-324-0143
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OUTER RING GRAPHITE AND NICKEL ALLOY 600 SPIRAL WOUND FILLER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-24503,TY 1,CL 2 MIL SPEC 1ST MATERIAL RESPONSE AND ASTM B168 ASSN STD 2ND MATERIAL RESPONSE SPIRAL WOUND FILLER |
| CROSS-SECTIONAL SHAPE STYLE | F47 METAL WINDING W/SOFT FILLER AND OUTER RING |

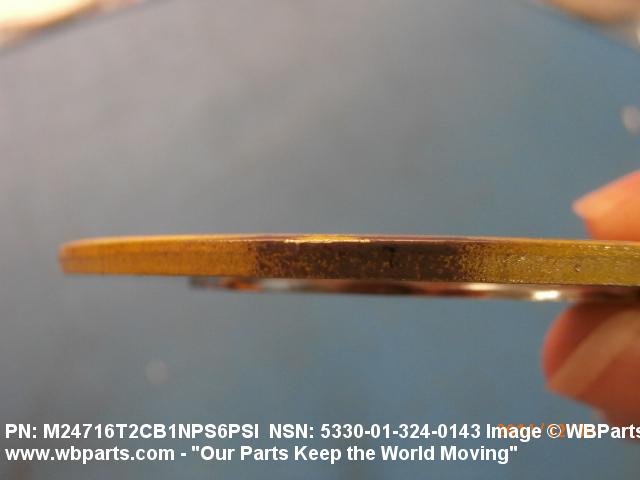

| CROSS-SECTIONAL THICKNESS | 0.170 INCHES MINIMUM AND 0.180 INCHES MAXIMUM |
| GAGE RING THICKNESS | 0.117 INCHES MINIMUM AND 0.131 INCHES MAXIMUM |
| STYLE DESIGNATOR | B8 CIRCULAR |
| OUTSIDE DIAMETER | 1.844 INCHES NOMINAL |

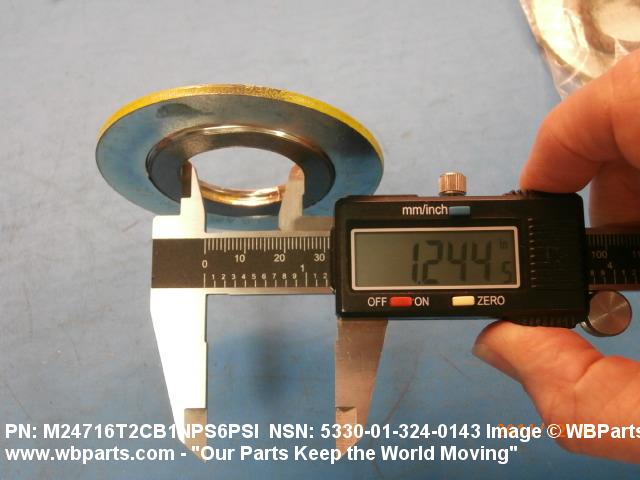

| APERTURE DIAMETER | 1.250 INCHES NOMINAL |
| BEARING SURFACE WIDTH | 0.297 INCHES NOMINAL |

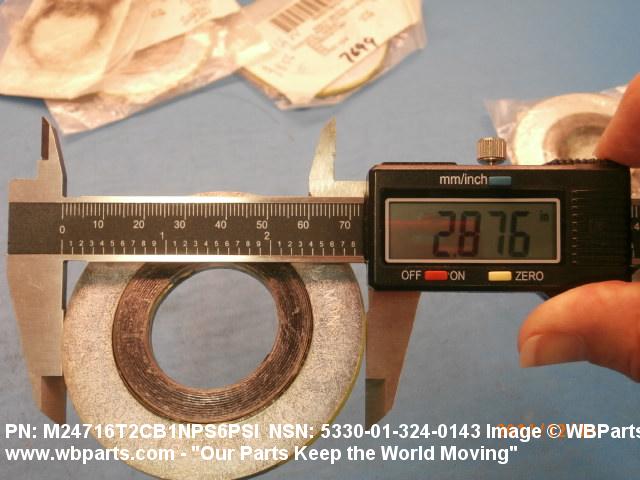

| GAGE RING OUTSIDE DIAMETER | 2.875 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND B CLASS AND 1 IPS SIZE AND 300,400,600 SERIES |
| ENVIRONMENTAL ATTRIBUTE CODE | ASBESTOS ALTERNATIVE PRODUCTS |
| III TEMP RATING | 900.0 DEG FAHRENHEIT |
| III MAXIMUM PRESSURE RATING | 600.0 POUNDS PER SQUARE INCH |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-G-24716 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24716T0100BI |
Restrictions/Controls & Freight Information | NSN 5330-01-324-0143
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Environmental Attribute Code: | JG |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-324-0143
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
