NSN 5330-01-323-9941 M83461/1-217, M834611217, 80363972475XX129OLD
Product Details | PREFORMED PACKING
5330-01-323-9941 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.
Part Alternates: M83461/1-217, M834611217, 80363972475XX129OLD, 80363972475XXX29, 803-6397247-5XXX-29, 5330-01-323-9941, 01-323-9941, 5330013239941, 013239941
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 AUG 1990 | 01-323-9941 | 04521 ( PACKING, PREFORMED ) |

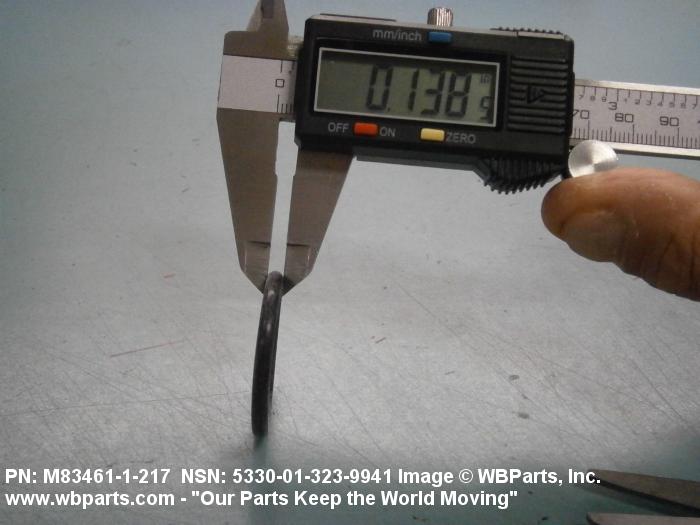

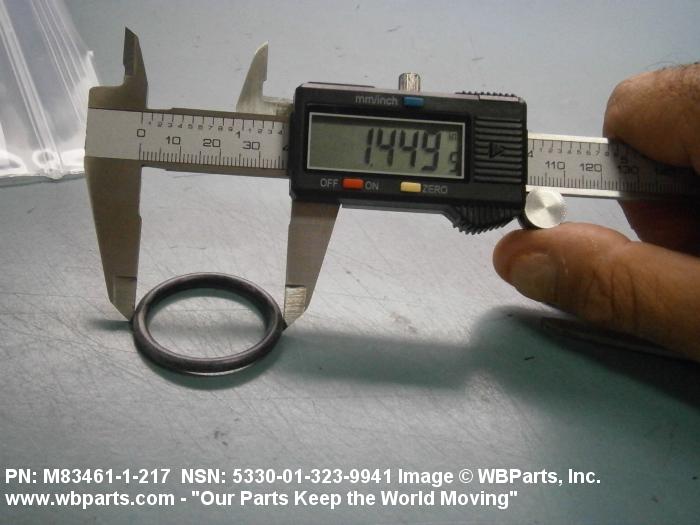

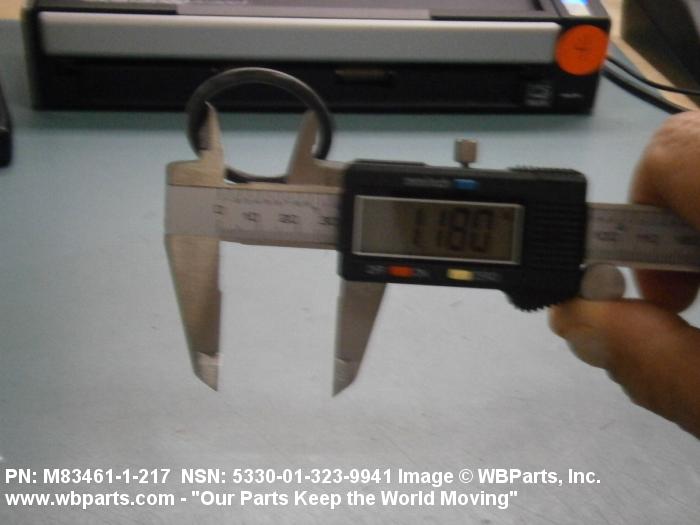

Drawings & Photos | NSN 5330-01-323-9941
Demand History | NSN 5330-01-323-9941
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M834611217 | 2016-08-221 | 50 | Malaysia |
| 5330-01-323-9941 | 2016-08-218 | 10 | Malaysia |
| 5330-01-323-9941 | 2016-06-176 | 2 | Malaysia |
| 5330-01-323-9941 | 2016-06-169 | 2 | Malaysia |
| M834611217 | 2015-04-119 | 2500 | US |
| M834611217 | 2013-07-205 | 12 | Singapore |
| 5330-01-323-9941 | 2011-11-318 | 10 | US |
| M834611217 | 2011-01-18 | 10 | FR |
| M83461/1-217 | 2010-11-316 | 50 | |
| 5330-01-323-9941 | 2008-08-218 | 2 | Philippines |
| 5330-01-323-9941 | 2006-10-284 | 360 | Greece |
Cross Reference | NSN 5330-01-323-9941
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-323-9941
Technical Data | NSN 5330-01-323-9941
| Characteristic | Specifications |
|---|---|
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 803-6397247-5XXX-29 |
Restrictions/Controls & Freight Information | NSN 5330-01-323-9941
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | S | 60 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5330-01-323-9941
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | X3 | Nuclear Reactor Plant (NRP) material under the technical cognizance of the NAVSEA 08 special designed, manufactured and/or treated for use in a NRP or controls thereof. This category includes all other NRP items which are not coded X2 or X4. |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N35 | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
