Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-01-317-2738 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: C2821012, CSTM3646, CSTM4694, 5330-01-317-2738, 01-317-2738, 5330013172738, 013172738
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAR 1990 | 01-317-2738 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
Drawings & Photos | NSN 5330-01-317-2738
Demand History | NSN 5330-01-317-2738
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| C2821012 | 2020-05-136 | 16 | DIBBS |
| C2821012 | 2020-04-121 | 16 | DIBBS |
| C2821012 | 2017-10-300 | 4 | US |
| 5330-01-317-2738 | 2017-10-297 | 40 | DIBBS |
| 5330-01-317-2738 | 2017-06-166 | 51 | DIBBS |
| 5330-01-317-2738 | 2017-06-158 | 51 | DIBBS |
| 5330-01-317-2738 | 2017-03-69 | 52 | DIBBS |
| 5330-01-317-2738 | 2017-03-61 | 52 | DIBBS |
| 5330-01-317-2738 | 2017-02-43 | 49 | DIBBS |
| 5330-01-317-2738 | 2016-10-288 | 15 | DIBBS |
| 5330-01-317-2738 | 2016-10-280 | 15 | DIBBS |
| 5330-01-317-2738 | 2016-08-216 | 19 | DIBBS |
| 5330-01-317-2738 | 2016-07-208 | 19 | DIBBS |
| 5330-01-317-2738 | 2015-09-259 | 1 | DIBBS |
| 5330-01-317-2738 | 2015-09-256 | 19 | DIBBS |
| 5330-01-317-2738 | 2014-09-271 | 27 | DIBBS |
| 5330-01-317-2738 | 2013-09-258 | 16 | DIBBS |
| 5330-01-317-2738 | 2013-08-242 | 16 | DIBBS |
| 5330-01-317-2738 | 2013-08-240 | 16 | DIBBS |
| 5330-01-317-2738 | 2013-05-140 | 18 | DIBBS |
| 5330-01-317-2738 | 2012-08-226 | 8 | DIBBS |
| 5330-01-317-2738 | 2012-04-110 | 4 | US |
| 5330-01-317-2738 | 2012-04-103 | 10 | US |
| 5330-01-317-2738 | 2011-07-203 | 25 | DIBBS |
| 5330-01-317-2738 | 2011-07-202 | 25 | DIBBS |
| 5330-01-317-2738 | 2011-04-109 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-317-2738
Related Products | NSN 5330-01-317-2738
Technical Data | NSN 5330-01-317-2738
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SILICONE CLASS Q OVERALL |
| CONSTRUCTION | SOLID |

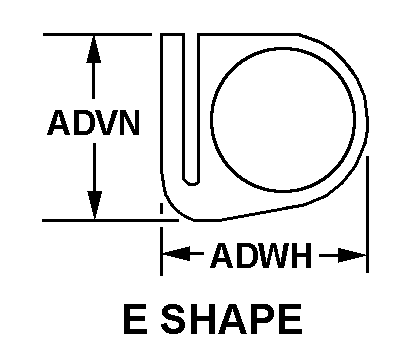

| CROSS-SECTIONAL SHAPE STYLE | H42 E SHAPE |
