NSN 5330-01-317-0178 S176881, S-17688-1, 01-317-0178
Product Details | NONMETALLIC SPECIAL SHAPED SECTION SEAL
5330-01-317-0178 An item fabricated from NONMETALLIC SPECIAL SHAPED SECTION. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items, except for molded corners, slot(s), press fit buttons, and the like must be of one continuous cross section. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes BUSHING, NONMETALLIC; PACKING, PERFORMED; PAD, CUSHIONING;and SEAL, PLAIN. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: S176881, S-17688-1, 5330-01-317-0178, 01-317-0178, 5330013170178, 013170178
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 MAR 1990 | 01-317-0178 | 32847 ( SEAL, NONMETALLIC SPECIAL SHAPED SECTION ) |
Drawings & Photos | NSN 5330-01-317-0178
Demand History | NSN 5330-01-317-0178
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-317-0178 | 2013-06-158 | 10 | DIBBS |
| 5330-01-317-0178 | 2010-02-40 | 13 | DIBBS |
| 5330-01-317-0178 | 2009-12-345 | 13 | DIBBS |
| 5330-01-317-0178 | 2009-08-232 | 20 | DIBBS |
| 5330-01-317-0178 | 2009-06-167 | 10 | DIBBS |
| 5330-01-317-0178 | 2009-05-151 | 1 | DIBBS |
| 5330-01-317-0178 | 2008-10-301 | 2 | DIBBS |
| 5330-01-317-0178 | 2008-10-288 | 2 | DIBBS |
Cross Reference | NSN 5330-01-317-0178
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S-17688-1 | 75345 | KIRKHILL-TA CO. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-317-0178
Technical Data | NSN 5330-01-317-0178
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYETHYLENE TEREPHTHALATE OVERALL |
| CONSTRUCTION | SOLID |

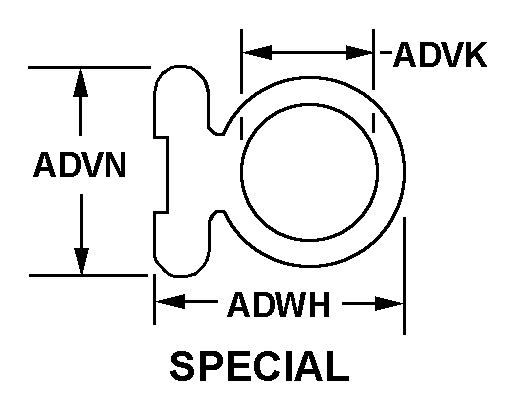

| CROSS-SECTIONAL SHAPE STYLE | H23 SPECIAL |
| CROSS SECTION INSIDE DIAMETER | 0.304 INCHES MINIMUM AND 0.364 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 0.570 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |
| CROSS-SECTIONAL WIDTH | 0.470 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| SPECIAL FEATURES | HAS A LIP EXTENDING OFF THE ROUNDPORTION OF THE SEAL; MADE OF DACRON IMPREGNATED WITH FLUOROSILICONE 55 DURO STM23-403 |
Restrictions/Controls & Freight Information | NSN 5330-01-317-0178
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI SUB3 |
| Less than car load rating | B | 300 |
| Less than truck load rating | C | 250.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-317-0178
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | P | The current standard price is the initial negotiated provisioned price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | UC | TG:C-5A GALAXY |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
