NSN 5330-01-316-8968 LT50111, LT50112, 01-316-8968
Product Details | NONMETALLIC ROUND SECTION SEAL
5330-01-316-8968 An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items with a solid cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to specific shape with or without joints. It may be a straight item of a specific length with end cuts or joints. It may have a solid or tubular cross section. Except for molded corners, end cuts, and mounting facilities such as mounting holes, slots, press-fit buttons, or the like, the item must be of one continuous round cross section. It may have fabric, cord or metal reinforcement. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER ROUND SECTION and TUBING, NONMETALLIC. Excludes GASKET and PACKING, PREFORMED.
Part Alternates: LT50111, LT50112, 5330-01-316-8968, 01-316-8968, 5330013168968, 013168968
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 MAR 1990 | 01-316-8968 | 36873 ( SEAL, NONMETALLIC ROUND SECTION ) |
Drawings & Photos | NSN 5330-01-316-8968
Demand History | NSN 5330-01-316-8968
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-316-8968 | 2017-11-318 | 7 | DIBBS |
| 5330-01-316-8968 | 2017-11-306 | 7 | DIBBS |
| 5330-01-316-8968 | 2017-10-285 | 7 | DIBBS |
| 5330-01-316-8968 | 2017-10-277 | 7 | DIBBS |
| 5330-01-316-8968 | 2010-12-335 | 21 | DIBBS |
| 5330-01-316-8968 | 2010-10-295 | 14 | DIBBS |
| 5330-01-316-8968 | 2010-09-250 | 9 | DIBBS |
| 5330-01-316-8968 | 2010-08-224 | 52 | DIBBS |
| 5330-01-316-8968 | 2010-08-214 | 52 | DIBBS |
| 5330-01-316-8968 | 2010-06-175 | 7 | DIBBS |
| 5330-01-316-8968 | 2010-05-132 | 6 | DIBBS |
| 5330-01-316-8968 | 2010-04-96 | 19 | DIBBS |
| 5330-01-316-8968 | 2009-05-146 | 52 | DIBBS |
| 5330-01-316-8968 | 2009-01-21 | 12 | DIBBS |
| 5330-01-316-8968 | 2008-05-148 | 40 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-316-8968
Technical Data | NSN 5330-01-316-8968
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR OVERALL |
| CONSTRUCTION | ONE-PIECE |

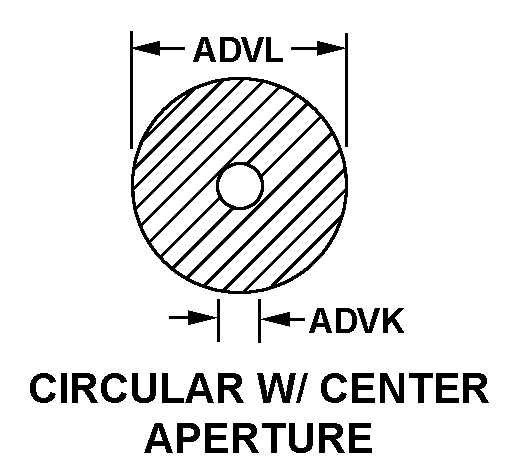

| CROSS-SECTIONAL SHAPE STYLE | G23 CIRCULAR WITH CENTER APERTURE |
| CROSS SECTION INSIDE DIAMETER | 0.177 INCHES NOMINAL |
| CROSS SECTION OUTSIDE DIAMETER | 0.438 INCHES NOMINAL |

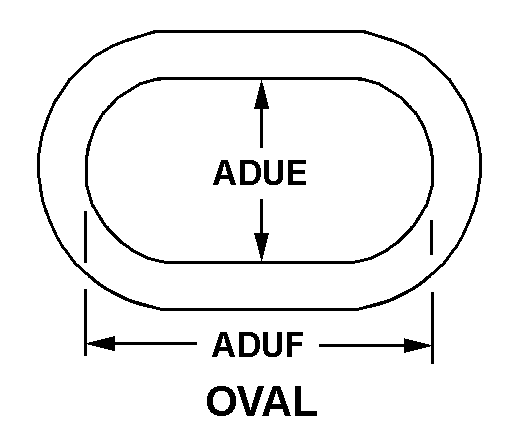

| STYLE DESIGNATOR | A2 OVAL |
| SPECIAL FEATURES | LENGTH AT CENTERLINE 206.00 MIN.,306.00 MAX. |
Restrictions/Controls & Freight Information | NSN 5330-01-316-8968
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI SUB8 |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-316-8968
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | AY | TG:FIRE CONTROL AND BOMBING SYSTEMS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
1 EA : Each |
