NSN 5330-01-306-9603 MS2877812, MS28778-12 , 19A11C122
Product Details | PREFORMED PACKING
5330-01-306-9603 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.
Part Alternates: MS2877812, MS28778-12 , 19A11C122, 19A11-C-12-2, 5330-01-306-9603, 01-306-9603, 5330013069603, 013069603
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 SEP 1989 | 01-306-9603 | 04521 ( PACKING, PREFORMED ) |

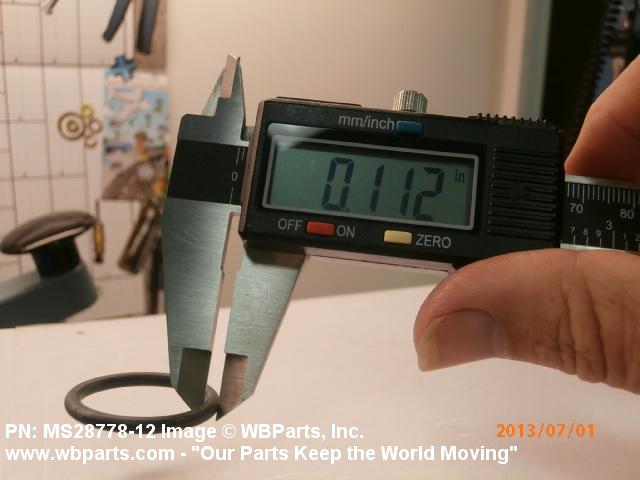

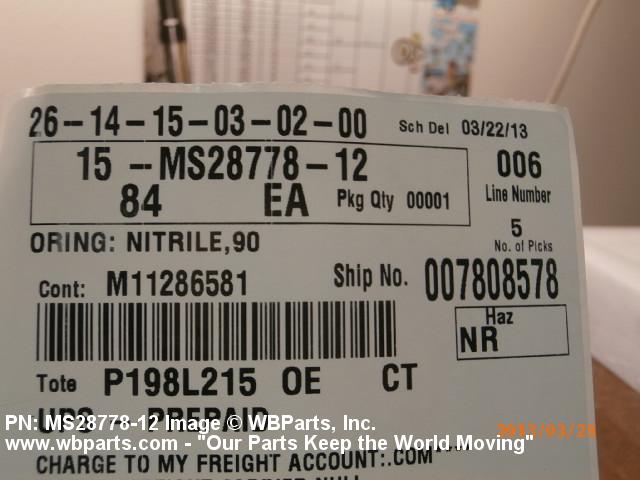

Drawings & Photos | NSN 5330-01-306-9603
Demand History | NSN 5330-01-306-9603
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2877812 | 2025-04-97 | 40 | TW |
| MS2877812 | 2025-03-70 | 4 | United States |
| MS2877812 | 2024-12-354 | 2 | United States |
| MS2877812 | 2024-01-04 | 10 | United States |
| MS2877812 | 2023-12-353 | 10 | United States |
| MS2877812 | 2023-12-339 | 4 | IN |
| MS2877812 | 2023-10-278 | 8 | US |
| MS2877812 | 2023-03-74 | 25 | United States |
| MS2877812 | 2021-08-222 | 8 | United States |
| MS2877812 | 2021-04-98 | 3 | United States |
| MS2877812 | 2019-11-315 | 10 | KR |
| 5330-01-306-9603 | 2019-09-251 | 4550 | DIBBS |
| 5330-01-306-9603 | 2019-03-69 | 500 | IN |
| MS2877812 | 2019-03-64 | 100 | US |
| MS2877812 | 2018-09-267 | 276 | United States |
| MS2877812 | 2017-06-179 | 2 | United Arab Emirates |
| 5330-01-306-9603 | 2017-06-171 | 80 | United States |
| MS28778-12 | 2017-06-171 | 8 | United States |
| MS28778-12 | 2017-06-171 | 8 | United States |
| MS28778-12 | 2017-06-171 | 12 | United States |
| 5330-01-306-9603 | 2017-04-117 | 5 | MY |
| 5330-01-306-9603 | 2017-04-116 | 5 | Malaysia |
| MS2877812 | 2017-01-10 | 30 | United States |
| MS28778-12 | 2016-10-301 | 7 | United States |
| 5330-01-306-9603 | 2016-09-257 | 5 | Malaysia |
| MS2877812 | 2016-03-91 | 4 | United States |
| 5330-01-306-9603 | 2016-02-50 | 9200 | DIBBS |
| 5330-01-306-9603 | 2015-09-250 | 8990 | DIBBS |
| MS28778-12 | 2015-01-29 | 6 | United States |
| MS28778-12 | 2015-01-29 | 6 | United States |
| MS2877812 | 2015-01-20 | 5 | US |
| MS2877812 | 2014-10-295 | 1 | United States |
| MS2877812 | 2014-09-259 | 100 | US |
| MS2877812 | 2014-04-113 | 4 | United States |
| MS2877812 | 2014-01-09 | 8 | US |
| MS2877812 | 2013-06-175 | 100 | United States |
| MS2877812 | 2013-03-81 | 100 | United States |
| MS28778-12 | 2012-11-310 | 99 | |
| MS2877812 | 2012-10-297 | 1 | Malaysia |
| MS2877812 | 2012-05-123 | 8 | US |
| MS2877812 | 2012-05-123 | 8 | US |
| MS2877812 | 2011-10-293 | 8 | Italy |
| MS28778-12 | 2011-08-236 | 8 | United States |
| MS2877812 | 2011-08-214 | 4 | United States |
| 5330-01-306-9603 | 2011-03-67 | 4500 | DIBBS |
| 5330-01-306-9603 | 2010-08-215 | 4000 | DIBBS |
| 5330-01-306-9603 | 2010-02-46 | 1 | US |
| 5330-01-306-9603 | 2009-08-230 | 5 | US |
| 5330-01-306-9603 | 2009-04-110 | 400 | US |
| 5330-01-306-9603 | 2008-08-242 | 815 | Canada |
| 5330-01-306-9603 | 2008-04-114 | 6 | Thailand |
| MS2877812 | 2008-03-65 | 9 | US |
Cross Reference | NSN 5330-01-306-9603
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 19A11-C-12-2 | 88032 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| MS28778-12 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS28778-12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS28778-12 | A9271 | GORIZIANE GROUP SPA |
| MS28778-12 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-306-9603
Related Products | NSN 5330-01-306-9603
Technical Data | NSN 5330-01-306-9603
| Characteristic | Specifications |
|---|---|
| DEPARTURE FROM CITED DOCUMENT | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZW |
Restrictions/Controls & Freight Information | NSN 5330-01-306-9603
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | HX | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-306-9603
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
1 EA : Each |
