Product Details | NONMETALLIC CHANNEL SEAL
5330-01-298-6992 An item fabricated from NONMETALLIC CHANNEL. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting facilities, such as mounting hole(s), slot(s), press fit buttons, and the like, must be one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes GASKET; GROMMET, NONMETALLIC; and PACKING, PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC CHANNEL.
Part Alternates: 5336184, 5330-01-298-6992, 01-298-6992, 5330012986992, 012986992
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 APR 1989 | 01-298-6992 | 32846 ( SEAL, NONMETALLIC CHANNEL ) |
Drawings & Photos | NSN 5330-01-298-6992
Demand History | NSN 5330-01-298-6992
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-298-6992 | 2009-12-347 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-298-6992
Technical Data | NSN 5330-01-298-6992
| Characteristic | Specifications |
|---|---|
| CONSTRUCTION | ONE-PIECE |

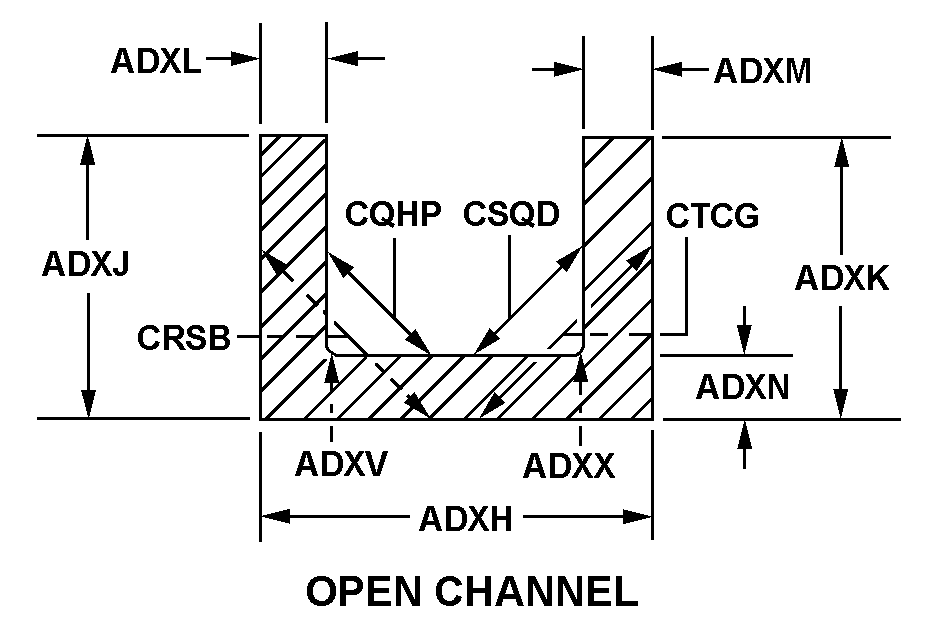

| CROSS-SECTIONAL SHAPE STYLE | K4 OPEN CHANNEL |
| RIGHT/BASE FLANGE HEIGHT | 6.000 INCHES MINIMUM AND 6.120 INCHES MAXIMUM |
| LEFT FLANGE HEIGHT | 8.690 INCHES MINIMUM AND 8.810 INCHES MAXIMUM |
| LEFT FLANGE THICKNESS AT TOE | 0.190 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| RIGHT/BASE FLANGE THICKNESS AT TOE | 0.190 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| WEB WIDTH | 6.000 INCHES MINIMUM AND 6.120 INCHES MAXIMUM |
| LEFT SIDE FLANGE HEIGHT | 8.690 INCHES MINIMUM AND 8.810 INCHES MAXIMUM |
| RIGHT SIDE FLANGE HEIGHT | 8.690 INCHES MINIMUM AND 8.810 INCHES MAXIMUM |
| LEFT SIDE FLANGE THICKNESS | 0.190 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| RIGHT SIDE FLANGE THICKNESS | 0.190 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| WEB THICKNESS | 0.190 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| LEFT INSIDE ANGLE | 45.0 DEGREES NOMINAL |
| RIGHT OUTSIDE ANGLE | 45.0 DEGREES NOMINAL |
| RIGHT TIP RELATIONSHIP WITH LEFT TIP | IDENTICAL |
| SPECIAL FEATURES | 3 PIECES BONDED TOGETHER TO FORM CHANNEL |
