NSN 5330-01-286-3464 NAS1523AA17R, NAS1523AA-17R, 946.91.91.017
Product Details | PACKING WITH RETAINER
5330-01-286-3464 An item composed of a compressible nonmetallic ring which may be loosely fitted into a noncompressible retaining ring, or may be of one piece construction with the compressible ring molded and/or mechanically connected to the retainer. It is specifically designed to form a fluid tight seal when compressed by a packing nut, gland, etc., between fixed surfaces and a cylindrical item passing through it. Excludes SEAL, PLAIN, ENCASED.
Part Alternates: NAS1523AA17R, NAS1523AA-17R, 946.91.91.017, 9469191017, 5330-01-286-3464, 01-286-3464, 5330012863464, 012863464
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 SEP 1988 | 01-286-3464 | 05680 ( PACKING WITH RETAINER ) |

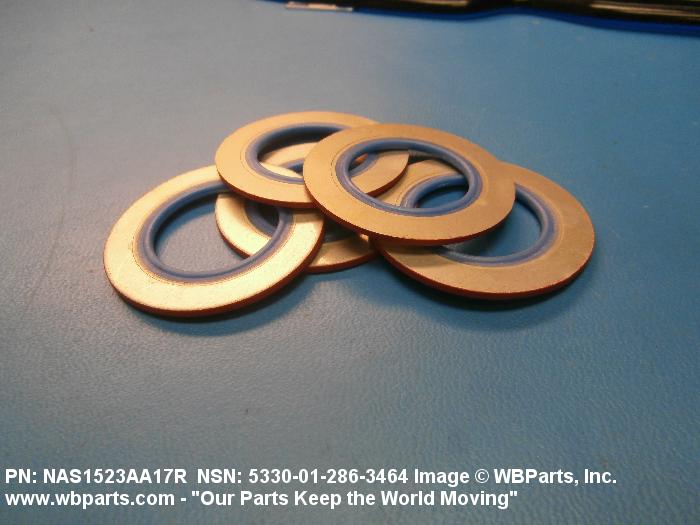

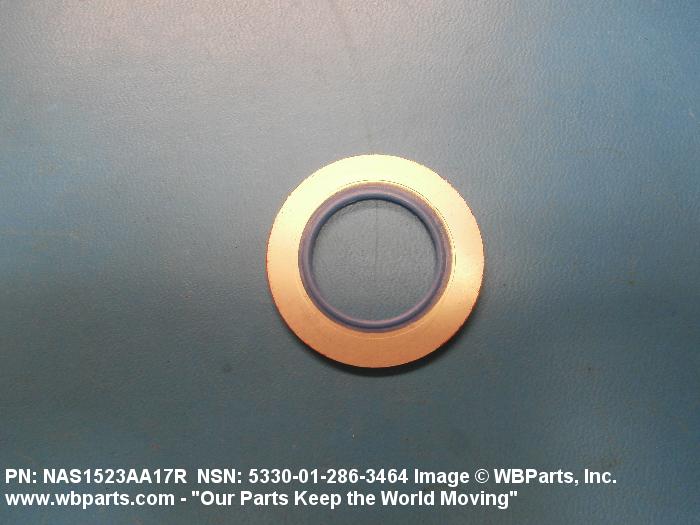

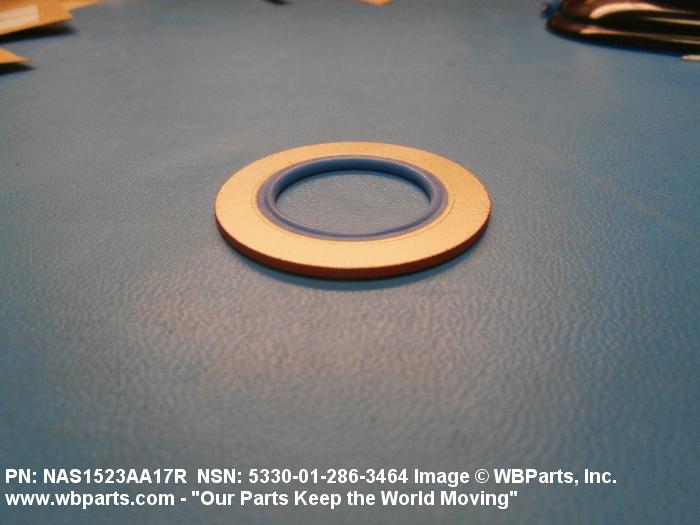

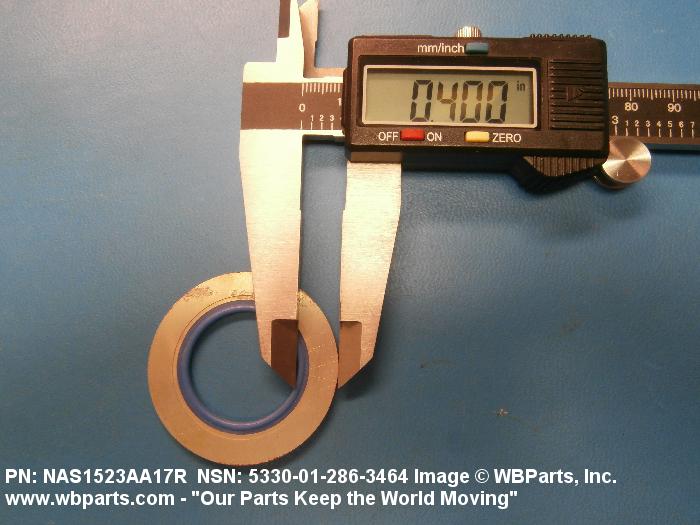

Drawings & Photos | NSN 5330-01-286-3464
Demand History | NSN 5330-01-286-3464
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-286-3464 | 2017-02-33 | 180 | DIBBS |
| 5330-01-286-3464 | 2014-12-344 | 5 | United States |
| NAS1523AA17R | 2014-03-76 | 20 | South Africa |
| NAS1523AA17R | 2012-11-334 | 15 | United States |
| NAS1523AA17R | 2012-09-261 | 15 | United States |
| NAS1523AA17R | 2012-09-251 | 15 | United States |
Cross Reference | NSN 5330-01-286-3464
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-286-3464
Related Products | NSN 5330-01-286-3464
Technical Data | NSN 5330-01-286-3464
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROSILICONE CLASS FQ PACKING ALUMINUM ALLOY 7075 RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-25988,TY 2,CL 1,GR 60 MIL SPEC SINGLE MATERIAL RESPONSE PACKING QQ-A-250/12,T6 FED SPEC SINGLE MATERIAL RESPONSE RETAINER |
| SURFACE TREATMENT | ANODIZE RETAINER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2,CL 1 OR 2 MIL SPEC SINGLE TREATMENT RESPONSE RETAINER |
| CONSTRUCTION | ONE-PIECE |

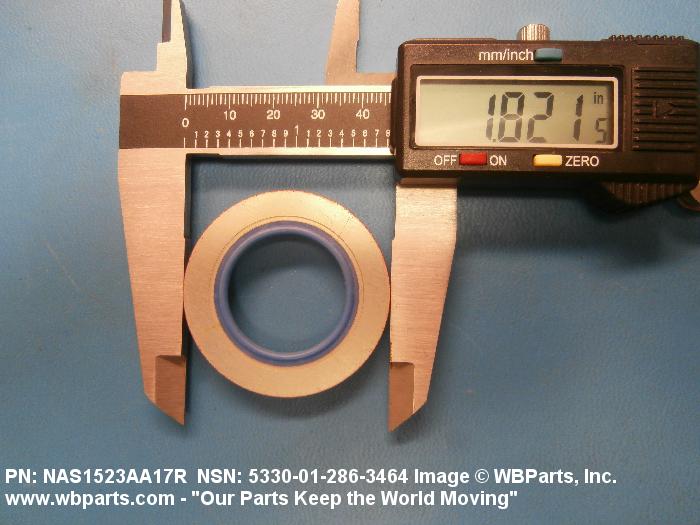

| OUTSIDE DIAMETER | 1.807 INCHES MINIMUM AND 1.832 INCHES MAXIMUM |

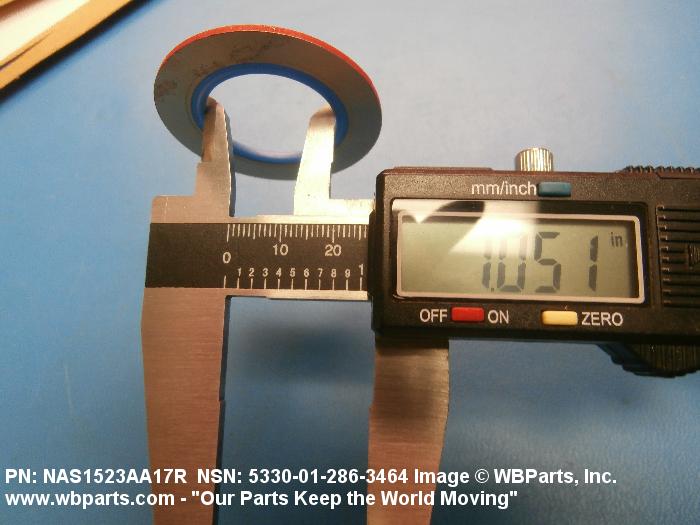

| PACKING INSIDE DIAMETER | 1.040 INCHES MINIMUM AND 1.060 INCHES MAXIMUM |

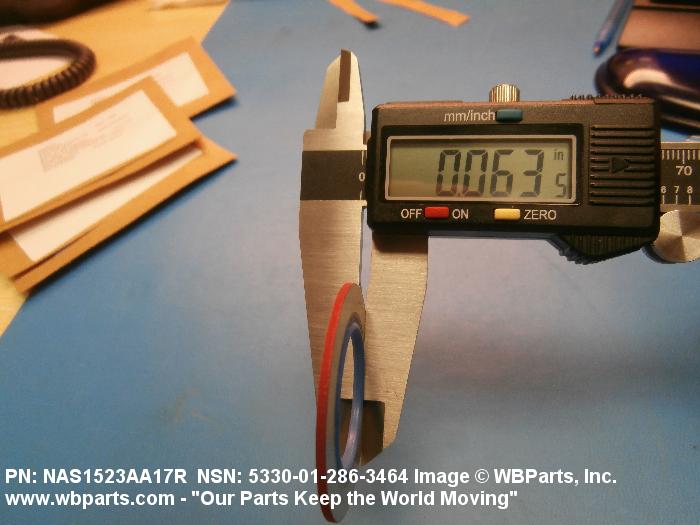

| RETAINER THICKNESS | 0.059 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| PACKING RING CROSS-SECTIONAL DIAMETER | 0.091 INCHES MINIMUM AND 0.101 INCHES MAXIMUM |
| SPECIAL FEATURES | COLOR RED |
| SPECIFICATION/STANDARD DATA | 80205-NAS 1523 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5330-01-286-3464
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-286-3464
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
