NSN 5330-01-253-0474 7332FT160, 7332FT-160, 7332FT160A
Product Details | PACKING ASSEMBLY
5330-01-253-0474 Any combination of items manufactured from PACKING MATERIAL to predetermined dimensions, or any combination of nonmetallic molded or formed shapes (other than solid rubber or synthetic rubber rings having a square or rectangular cross section) specifically designed and manufactured for use as a seal. The assembly may include metal lantern rings, metal separators, and/or end or adapter rings.
Part Alternates: 7332FT160, 7332FT-160, 7332FT160A, 7332FT-160A, 5330-01-253-0474, 01-253-0474, 5330012530474, 012530474
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 APR 1987 | 01-253-0474 | 07961 ( PACKING ASSEMBLY ) |

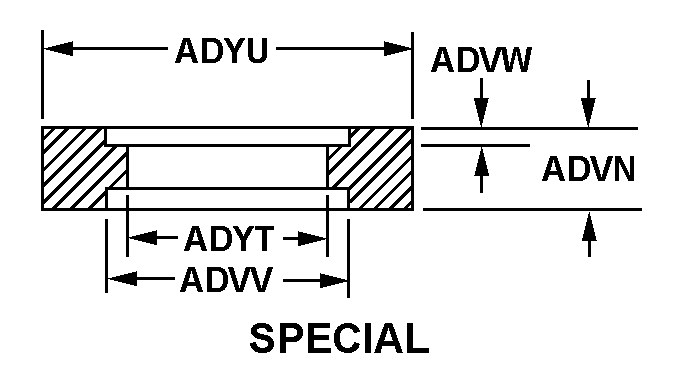

Drawings & Photos | NSN 5330-01-253-0474
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-253-0474
Technical Data | NSN 5330-01-253-0474
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | D78 SPECIAL |
| CROSS-SECTIONAL HEIGHT | 0.416 INCHES NOMINAL |
| BODY RECESS DIAMETER | 2.328 INCHES NOMINAL |
| BODY RECESS DEPTH | 0.057 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 2.248 INCHES NOMINAL |
| PERIPHERAL DIAMETER | 2.643 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.643 INCHES NOMINAL |
| INSIDE DIAMETER | 2.248 INCHES NOMINAL |
| HEIGHT | 0.416 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5330-01-253-0474
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
