NSN 5330-01-229-2237 MS287785, MS28778-5, 01-229-2237

Product Details | PREFORMED PACKING

5330-01-229-2237 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.

Part Alternates: MS287785, MS28778-5, 5330-01-229-2237, 01-229-2237, 5330012292237, 012292237

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	27 MAR 1986	01-229-2237	04521 ( PACKING, PREFORMED )

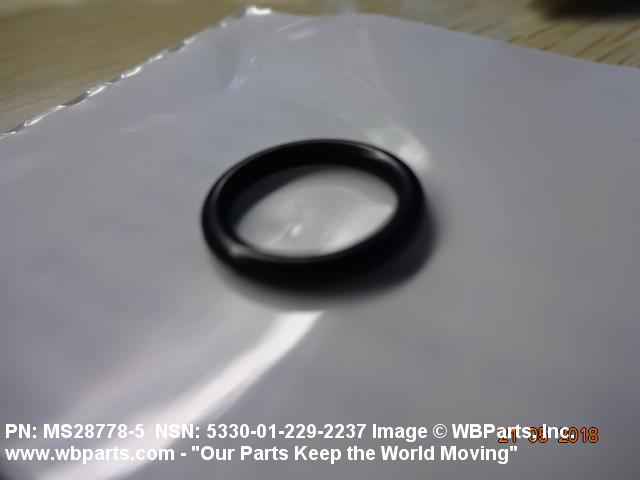

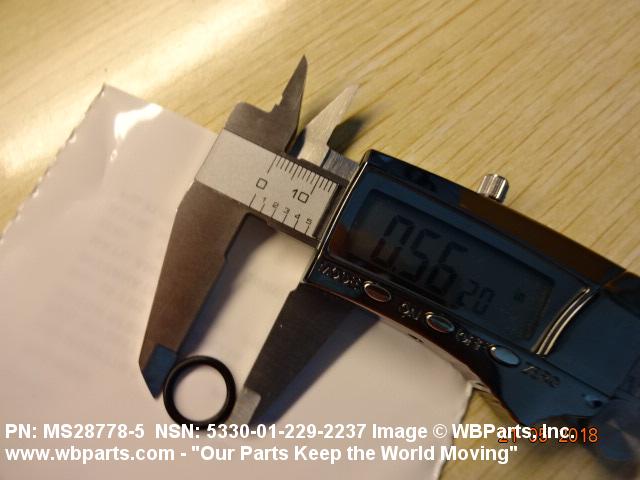

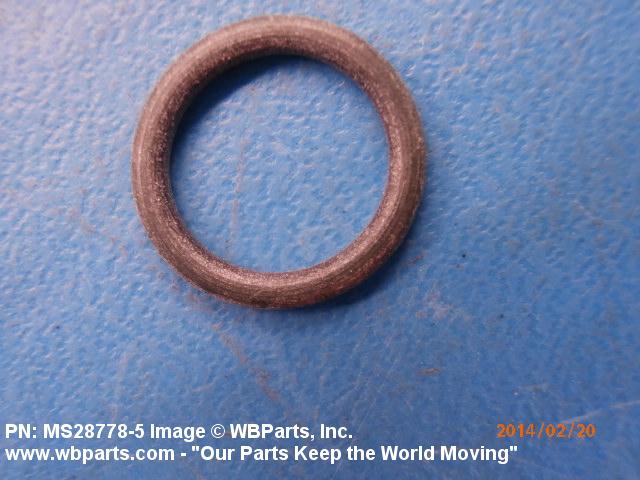

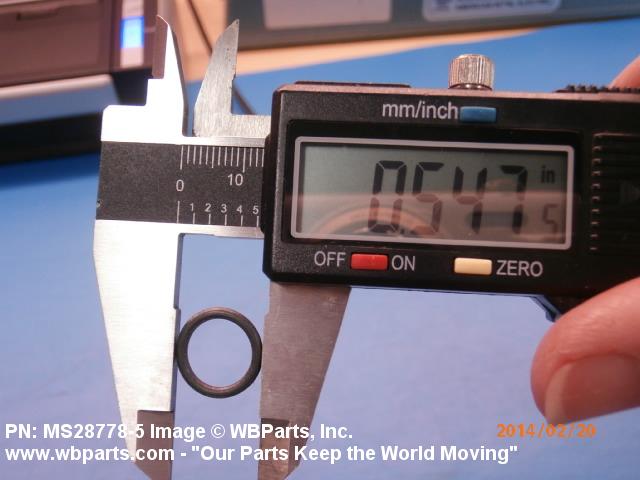

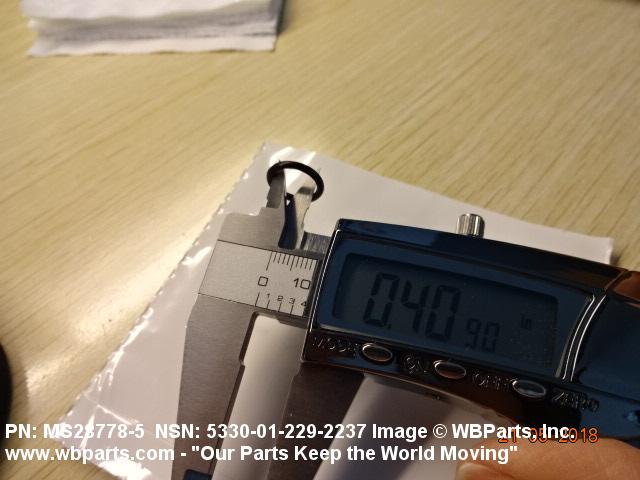

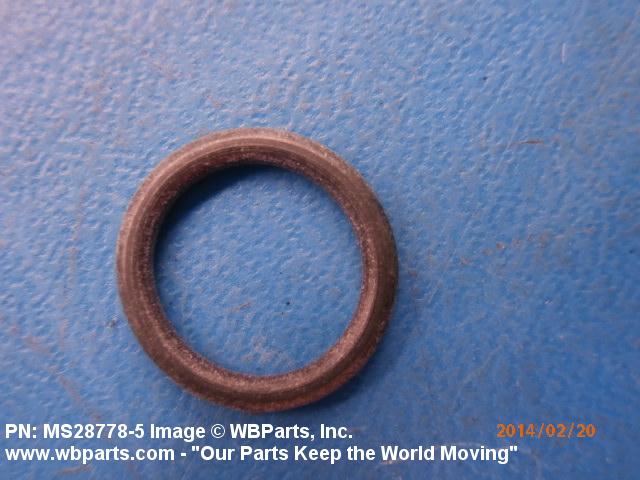

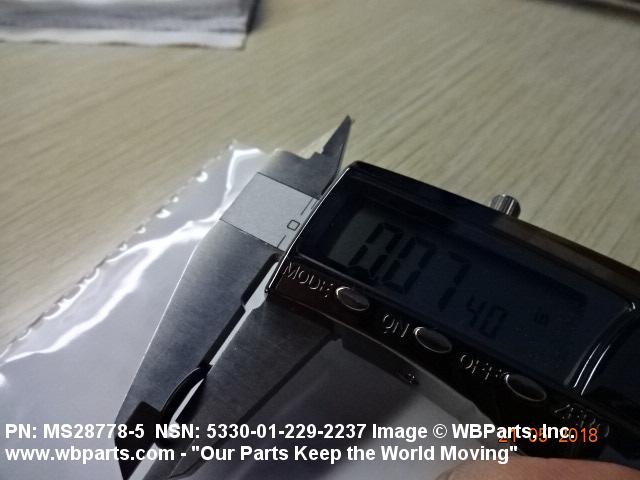

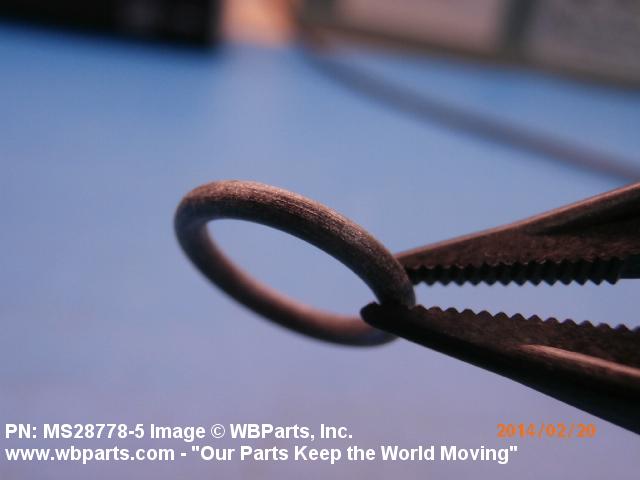

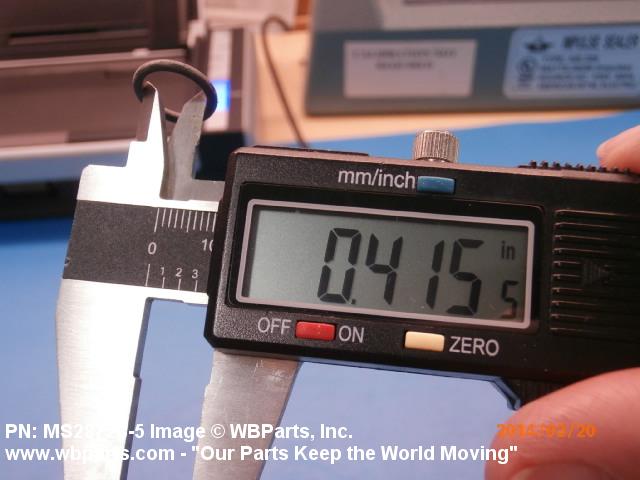

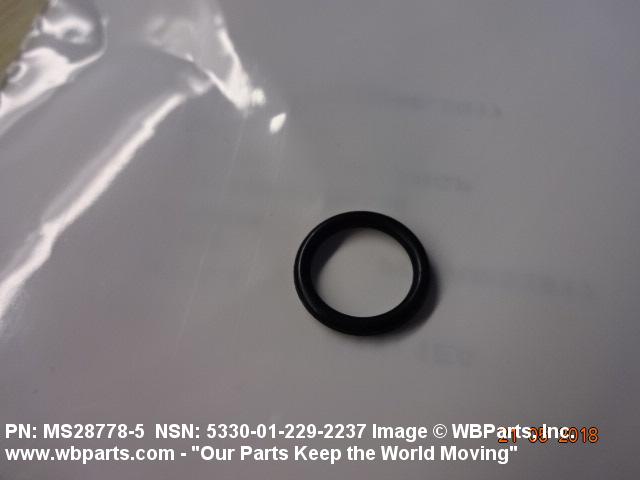

Drawings & Photos | NSN 5330-01-229-2237

Part Number	Request Date	QTY	Origin
MS287785	2025-01-21	50	United States
5330-01-229-2237	2024-07-205	20	United States
MS287785	2024-04-113	100	Lithuania
MS287785	2024-04-113	100	Lithuania
MS287785	2024-03-71	100	us
MS287785	2024-03-68	20	Panama
5330-01-229-2237	2023-06-165	2	US
MS287785	2022-12-355	16	US
MS287785	2022-05-144	30	Germany
MS287785	2022-05-138	20	Greece
MS287785	2022-05-136	20	Greece
MS287785	2020-11-329	1	US
MS287785	2020-06-157	8	us
MS28778-5	2019-01-22	1
5330-01-229-2237	2018-11-312	2000	DIBBS
5330-01-229-2237	2018-02-38	2	Malaysia
5330-01-229-2237	2017-11-306	5	DIBBS-KIT
MS28778-5	2017-11-306	5
5330-01-229-2237	2017-06-166	2641	DIBBS
MS287785	2017-03-60	1	US
MS287785	2016-03-67	22	us
5330-01-229-2237	2015-05-125	6100	DIBBS
MS28778-5	2014-06-162	2	VE
MS287785	2014-03-83	1	Thailand
MS287785	2014-01-10	100	Malaysia
MS287785	2014-01-02	560	US
MS28778-5	2013-02-50	1	ML
MS28778-5	2012-12-340	7	United States
MS28778-5	2012-11-310	174
5330-01-229-2237	2012-08-237	1432	DIBBS
MS287785	2012-07-198	500	United States
MS287785	2012-06-170	300	United States
MS287785	2012-04-121	100	United States
5330-01-229-2237	2011-12-364	125	IL
5330-01-229-2237	2011-11-318	5016	DIBBS
5330-01-229-2237	2011-08-241	500	Israel
5330-01-229-2237	2010-03-67	5465	DIBBS
5330-01-229-2237	2009-07-198	2	LB
MS287785	2009-06-169	1	US
MS287785	2006-05-138	2	US

Cross Reference | NSN 5330-01-229-2237

Part Number	Cage Code	Manufacturer
MS28778-5	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS28778-5	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS28778-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-229-2237

Compare

Related Products | NSN 5330-01-229-2237

5330-01-229-2239, 5330-01-229-2242, 5330-01-229-2328, 5330-01-229-2329, 5330-01-229-2330

Technical Data | NSN 5330-01-229-2237

Characteristic	Specifications
DEPARTURE FROM CITED DOCUMENT	MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS
CRITICALITY CODE JUSTIFICATION	ZZZW

Restrictions/Controls & Freight Information | NSN 5330-01-229-2237

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	Y	180 months
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	148520	PACKING RUBR/GUM COMPOUND O/T FOAM
Less than car load rating	Q	70
Less than truck load rating	Q	70.0
Water commodity Code	596	unknown
Originating Activity Code	HX	Navy ICP Mechanicsburg, PA 17055-0788
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-01-229-2237

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	7	An item that has been reviewed and determined not to fit the definition of codes 0 thru 6. These items are not assigned a specific application within the Marine Corps.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each
