NSN 5330-01-226-0134 MS2878223, MS28782-23, MS2878223CP

Product Details | PREFORMED PACKING

5330-01-226-0134 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.

Part Alternates: MS2878223, MS28782-23, MS2878223CP, MS28782-23CP, 5330-01-226-0134, 01-226-0134, 5330012260134, 012260134

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	11 FEB 1986	01-226-0134	04521 ( PACKING, PREFORMED )

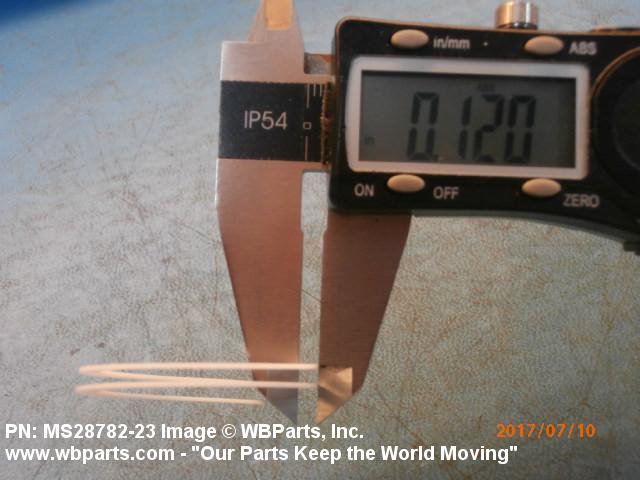

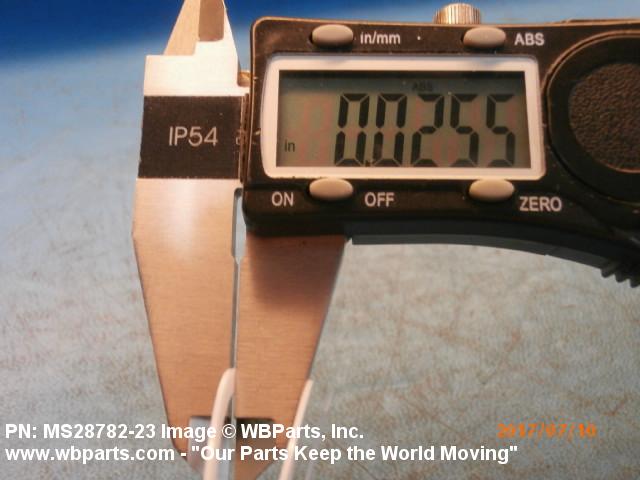

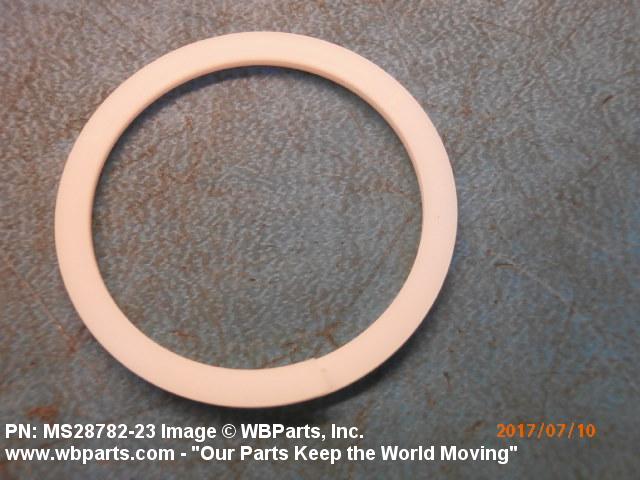

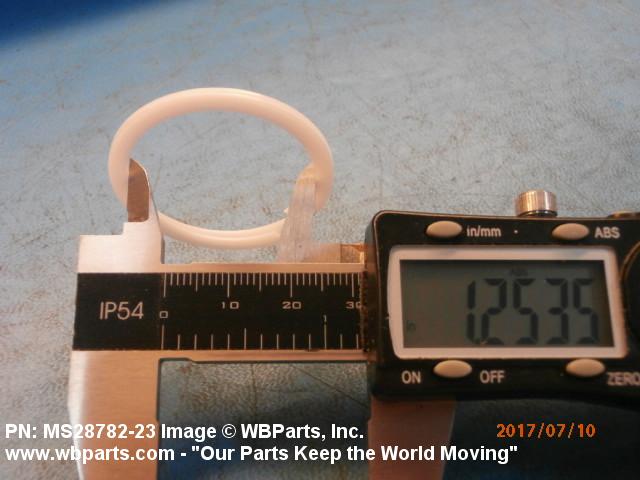

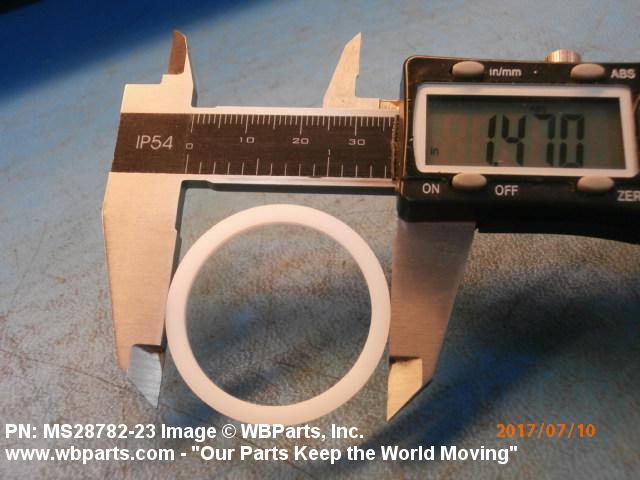

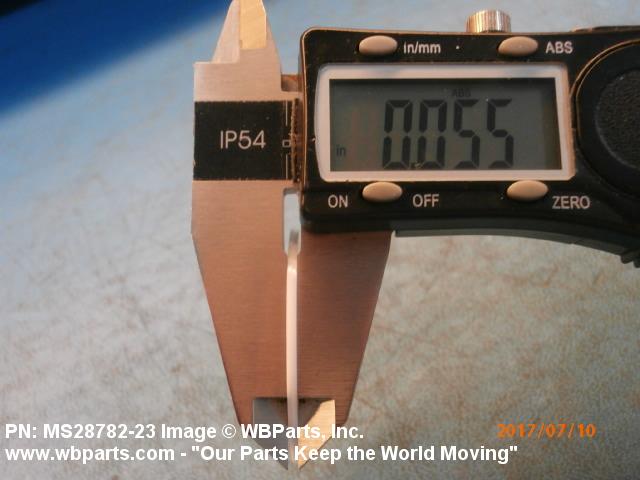

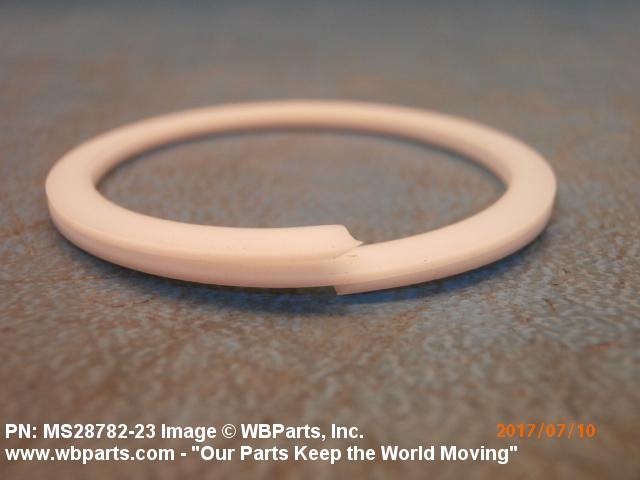

Drawings & Photos | NSN 5330-01-226-0134

Part Number	Request Date	QTY	Origin
5330-01-226-0134	2022-12-356	214	DIBBS
5330-01-226-0134	2022-09-244	206	DIBBS
5330-01-226-0134	2022-07-191	4	DIBBS
5330-01-226-0134	2021-12-361	215	DIBBS
MS2878223	2017-07-184	20	United States
5330-01-226-0134	2017-03-61	2	DIBBS-KIT
MS28782-23	2017-03-61	2
5330-01-226-0134	2014-02-58	213	DIBBS
5330-01-226-0134	2014-02-42	213	DIBBS
5330-01-226-0134	2013-06-168	206	DIBBS
5330-01-226-0134	2012-09-251	50	US
5330-01-226-0134	2009-09-245	189	DIBBS
5330-01-226-0134	2009-05-128	120	DIBBS

Cross Reference | NSN 5330-01-226-0134

Part Number	Cage Code	Manufacturer
MS28782-23	11243	COSMODYNE, LLC
MS28782-23CP	03950	NAVAL INVENTORY CONTROL POINT MECHANICSBURG

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-226-0134

Compare

Related Products | NSN 5330-01-226-0134

5330-01-226-0135, 5330-01-226-0137, 5330-01-226-0138, 5330-01-226-0140, 5330-01-226-0141

Technical Data | NSN 5330-01-226-0134

Characteristic	Specifications
REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS	CLEANED IN ACCORDANCE WITH MIL-C-52211
CROSS-SECTIONAL THICKNESS	0.025 INCHES MINIMUM AND 0.029 INCHES MAXIMUM
CRITICALITY CODE JUSTIFICATION	ZZZY
MATERIAL	PLASTIC POLYTETRAFLUOROETHYLENE OVERALL
PERIPHERAL DIAMETER	1.492 INCHES NOMINAL
ANGLE	25.0 DEGREES MINIMUM AND 35.0 DEGREES MAXIMUM
DISTANCE BETWEEN ENDS	0.047 INCHES MINIMUM AND 0.093 INCHES MAXIMUM
CENTER HOLE DIAMETER	1.250 INCHES NOMINAL
JOINT TYPE	SCARF-BUTT RETAINER
CROSS-SECTIONAL SHAPE STYLE	SQUARE

Restrictions/Controls & Freight Information | NSN 5330-01-226-0134

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	148520	PACKING RUBR/GUM COMPOUND O/T FOAM
Less than car load rating	Q	70
Less than truck load rating	Q	70.0
Water commodity Code	596	unknown
Originating Activity Code	HD	Naval Inventory Control Point Mechanicsburg, PA 17055-0788
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-01-226-0134

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
