NSN 5330-01-183-3392 9083898, 01-183-3392, 011833392
Product Details | NONMETALLIC CHANNEL SEAL
5330-01-183-3392 An item fabricated from NONMETALLIC CHANNEL. It may be (1) formed to a specific shape with or without joints, (2) a single piece whose ends have been secured together to form a specific shape, or (3) a straight item fabricated to a specific length for a specific application with end cuts or joints. Items except for molded corners, end cut(s), and mounting facilities, such as mounting hole(s), slot(s), press fit buttons, and the like, must be one continuous cross section. It may have fabric, cord, or metal reinforcement. It is specifically designed for use in applications where there is no relative motion between joined parts. Excludes GASKET; GROMMET, NONMETALLIC; and PACKING, PREFORMED. For straight items with square end cuts and without mounting hole(s), slot(s), or press fit buttons, see NONMETALLIC CHANNEL.
Part Alternates: 9083898, 5330-01-183-3392, 01-183-3392, 5330011833392, 011833392
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JUL 1984 | 01-183-3392 | 32846 ( SEAL, NONMETALLIC CHANNEL ) |
Drawings & Photos | NSN 5330-01-183-3392
Cross Reference | NSN 5330-01-183-3392
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9083898 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-183-3392
Technical Data | NSN 5330-01-183-3392
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER CHLOROPRENE CLASS CR OVERALL |
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL SHAPE STYLE | K1 OPEN CHANNEL |
| WEB WIDTH | 0.250 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 0.312 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 0.312 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.062 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.062 INCHES NOMINAL |
| WEB THICKNESS | 0.062 INCHES NOMINAL |
| LEFT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| LEFT OUTSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT OUTSIDE ANGLE | 90.0 DEGREES NOMINAL |
| STYLE DESIGNATOR | A15 STRIP |
| OVERALL LENGTH | 25.250 INCHES NOMINAL |
| LEFT TIP STYLE | K1A LEFT SQUARE END |
| RIGHT TIP RELATIONSHIP WITH LEFT TIP | IDENTICAL |

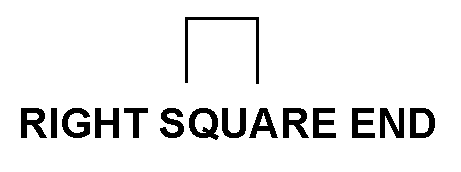

| RIGHT TIP STYLE | K1B RIGHT SQUARE END |
| ATTACHMENT METHOD | SLOT |
| ATTACHMENT FEATURE QUANTITY | 1 |
| ATTACHMENT FEATURE LENGTH | 0.312 INCHES NOMINAL |
| ATTACHMENT FEATURE WIDTH | 0.063 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| SPECIAL FEATURES | SLOT 5.938 IN. NOM FROM ONE END |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 9083898 |
Restrictions/Controls & Freight Information | NSN 5330-01-183-3392
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
