NSN 5330-01-174-6095 M83248/1-226, M832481226, MILR83248
Product Details | PREFORMED PACKING
5330-01-174-6095 A circular shaped item with an aperture manufactured to predetermined dimensions and designed for use as a seal in stuffing boxes, packing nuts, and the like. It may be (1) any nonmetallic molded or formed ring (except solid (without joint) rings having a square or rectangular cross section); or (2) any shredded metal or metal foil type metallic or semimetallic rings. Excludes felt items but includes multimaterial items in which one of the materials is felt. For solid (without joints) nonmetallic items with a square or rectangular cross section, see WASHER (as modified) and GASKET. For rubber items specifically designed for weather-proofing doors, windows, chests, and the like see SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; and SEAL, NONMETALLIC, SPECIAL SHAPED SECTION. For circular (with aperature) nonmetallic items with a solid round cross-section see O-RING. Excludes CUP, COMPRESSION; GASKET; WASHER (as modified); and FELT, MECHANICAL, PREFORMED.
Part Alternates: M83248/1-226, M832481226, MILR83248, MIL-R-83248, 2640-696-1 PC 18, 26406961PC18, 5330-01-174-6095, 01-174-6095, 5330011746095, 011746095
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 MAR 1984 | 01-174-6095 | 04521 ( PACKING, PREFORMED ) |

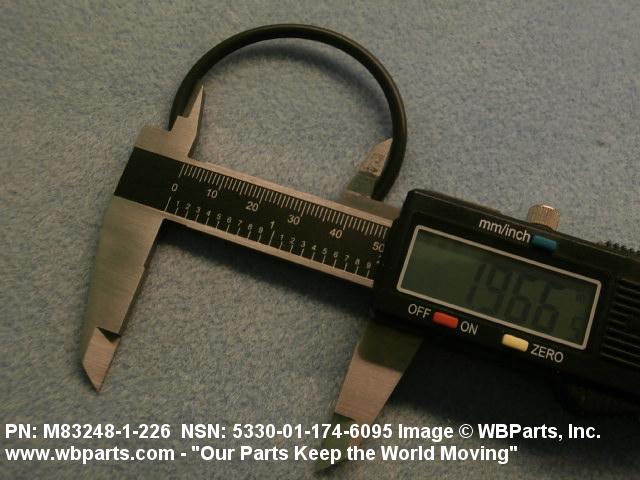

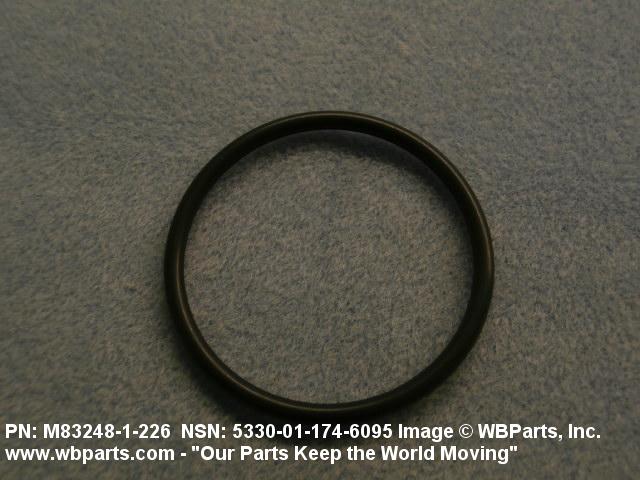

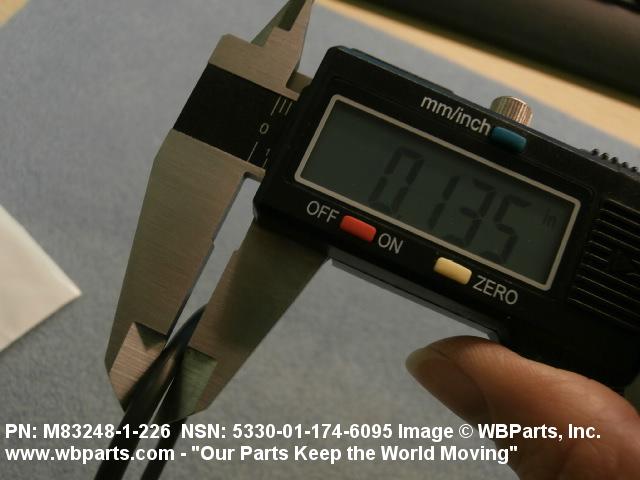

Drawings & Photos | NSN 5330-01-174-6095
Demand History | NSN 5330-01-174-6095
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M832481226 | 2022-06-152 | 3 | Sri Lanka |
| M832481226 | 2022-03-68 | 4 | United States |
| 5330-01-174-6095 | 2021-07-208 | 100 | United States |
| M832481226 | 2017-04-113 | 15 | Switzerland |
| MILR83248 | 2017-03-83 | 3 | United States |
| 5330-01-174-6095 | 2016-08-216 | 1 | United States |
| MILR83248 | 2016-03-81 | 18 | United States |
| MILR83248 | 2016-03-81 | 9 | United States |
| M832481226 | 2015-12-345 | 89 | Malaysia |
| M832481226 | 2015-02-33 | 300 | IN |
| M832481226 | 2014-01-23 | 50 | Malaysia |
| M83248/1-226 | 2013-05-134 | 50 | CZ |
| M832481226 | 2012-06-179 | 6 | MX |
| 5330-01-174-6095 | 2012-04-104 | 10 | US |
| MILR83248 | 2011-10-304 | 301 | KR |
| M832481226 | 2011-10-293 | 24 | BR |
| MILR83248 | 2011-01-05 | 1 | CA |
| M832481226 | 2010-08-242 | 2 | BD |
| 5330-01-174-6095 | 2009-01-02 | 100 | United Kingdom |
| MILR83248 | 2007-08-221 | 4 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-174-6095
Technical Data | NSN 5330-01-174-6095
| Characteristic | Specifications |
|---|---|
| HARDNESS RATING | 70.0 SHORE DUROMETER A MINIMUM AND 80.0 SHORE DUROMETER A MAXIMUM OVERALL |
| CENTER HOLE DIAMETER | 1.966 INCHES MINIMUM AND 2.002 INCHES MAXIMUM |
| SPECIAL FEATURES | CERTIFIED FREE FROM MERCURY CONTAMINATION |
| TEST DATA DOCUMENT | 81349-MIL-P-23199 SPECIFICATION |
| SPECIAL TEST FEATURES | SPECIAL QUALITY CONTROL TESTING |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY MATERIAL WHICH MUST CONFORM TO SHIPS PARTS CONTROL CENTER SPECIAL QUALITY CONTROL PROVISIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZW AND FEAT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-83248 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83248/1-226 |
Restrictions/Controls & Freight Information | NSN 5330-01-174-6095
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-174-6095
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
