NSN 5330-01-164-6722 72113201023, 7-211320102-3, 790101

Product Details | PLAIN ENCASED SEAL

5330-01-164-6722 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.

Part Alternates: 72113201023, 7-211320102-3, 790101, 79010-1, 930621, 93062-1, 5330-01-164-6722, 01-164-6722, 5330011646722, 011646722

Hardware and Abrasives | Packing and Gasket Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	20 OCT 1983	01-164-6722	04214 ( SEAL, PLAIN ENCASED )

Drawings & Photos | NSN 5330-01-164-6722

Part Number	Request Date	QTY	Origin
93062-1	2019-11-332	142	DIBBS
93062-1	2019-05-121	22	DIBBS
93062-1	2019-04-113	22	DIBBS
5330-01-164-6722	2019-04-104	153	US
93062-1	2019-04-104	153	DIBBS
93062-1	2019-04-93	196	DIBBS
93062-1	2019-03-85	314	DIBBS
93062-1	2019-03-77	314	DIBBS
5330-01-164-6722	2018-11-322	198	DIBBS
5330-01-164-6722	2018-02-35	150	DIBBS
5330-01-164-6722	2017-11-333	1000	DIBBS
5330-01-164-6722	2017-03-89	300	DIBBS
5330-01-164-6722	2017-03-80	300	DIBBS
5330-01-164-6722	2017-02-44	400	DIBBS
5330-01-164-6722	2016-02-48	254	DIBBS
5330-01-164-6722	2014-12-338	550	DIBBS
5330-01-164-6722	2014-11-330	600	DIBBS
5330-01-164-6722	2014-09-258	600	DIBBS
5330-01-164-6722	2011-12-336	2400	DIBBS
5330-01-164-6722	2011-11-311	2400	DIBBS
5330-01-164-6722	2011-03-69	2	DIBBS
72113201023	2011-02-40	8	United States
5330-01-164-6722	2011-01-08	600	DIBBS
5330-01-164-6722	2010-11-327	4200	DIBBS
790101	2010-11-308	2	US
5330-01-164-6722	2010-10-287	3000	DIBBS
5330-01-164-6722	2010-09-270	3000	DIBBS
5330-01-164-6722	2010-05-144	700	DIBBS
5330-01-164-6722	2010-01-13	190	DIBBS
5330-01-164-6722	2009-12-350	158	DIBBS
5330-01-164-6722	2009-11-327	1800	DIBBS
5330-01-164-6722	2009-07-204	110	DIBBS

Cross Reference | NSN 5330-01-164-6722

Part Number	Cage Code	Manufacturer
7-211320102-3	02731	MCDONNELL DOUGLAS HELICOPTER CO INC
7-211320102-3	8V613	BOEING COMPANY, THE DBA BOEING
79010-1	04171	MAGNETIC SEAL CORP.
93062-1	04171	MAGNETIC SEAL CORP.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5330-01-164-6722

Compare

Related Products | NSN 5330-01-164-6722

5330-01-164-6843, 5330-01-164-6868, 5330-01-164-7352, 5330-01-164-7353, 5330-01-164-7374

Technical Data | NSN 5330-01-164-6722

Characteristic	Specifications
MATERIAL	MAGNESIUM ALLOY OVERALL

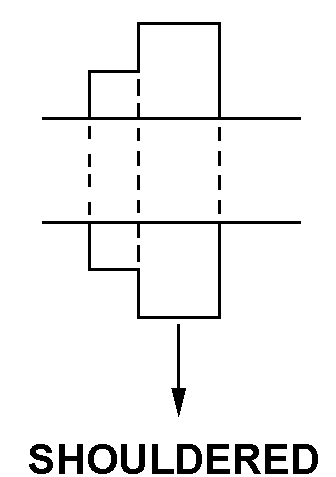

CASE STYLE	3 SHOULDERED
SEALING ELEMENT STYLE	1 VERTICAL
SEAL WIDTH	0.370 INCHES MINIMUM AND 0.380 INCHES MAXIMUM
ACCOMMODATED SHAFT DIAMETER	1.872 INCHES MINIMUM AND 1.874 INCHES MAXIMUM
HOUSING BORE DIAMETER	2.374 INCHES MINIMUM AND 2.376 INCHES MAXIMUM
III END ITEM IDENTIFICATION	AH64A
MANUFACTURERS CODE	02731
MFR SOURCE CONTROLLING REFERENCE	7-211320102-3

Restrictions/Controls & Freight Information | NSN 5330-01-164-6722

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating	P	77.5
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	CT	U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5330-01-164-6722

Army
Navy

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
